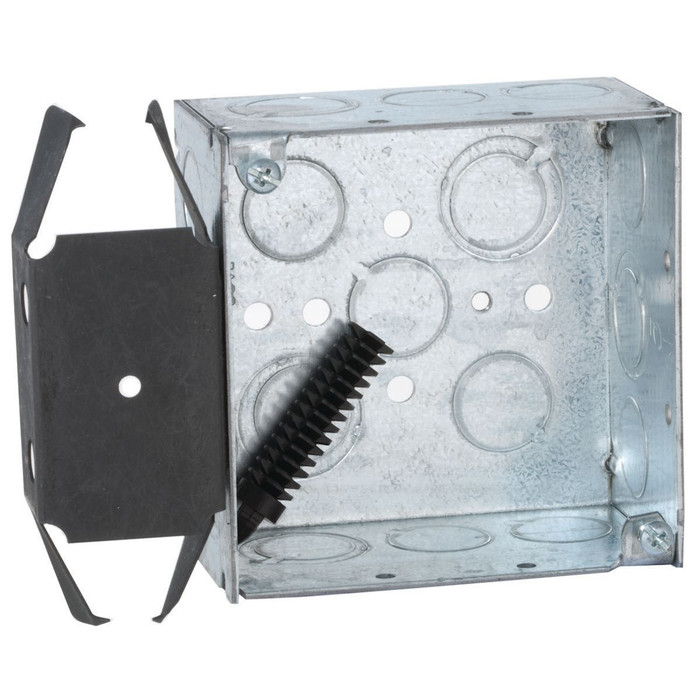

RACO 238 4 in. Square Welded Steel Box, BOX-LOC MS Bracket
The RACO 238 is a 4 in. square welded steel box engineered for conduit wiring systems, featuring a 2-1/8 in. deep body, nine 1/2 in. knockouts, and five 1/2 in. to 3/4 in. combination TKO knockouts for flexible field wiring. Equipped with an MS bracket from the BOX-LOC® Series, this box is designed for flush mounting to metal stud framing and is UL Listed for commercial and industrial electrical installations.
Key Features
- Trade Size & Depth: 4 in. square welded steel box with a 2-1/8 in. deep body, sized for standard conduit and device installations.
- Welded Steel Construction: Welded steel body delivers a rigid, durable housing for conduit-fed circuits in commercial and industrial applications.
- Nine 1/2 in. KO's & Five TKO's: Nine 1/2 in. knockouts plus five 1/2 in. to 3/4 in. combination TKO knockouts provide flexible conduit entry options on the job site.
- BOX-LOC® MS Bracket: MS bracket from the BOX-LOC® Series is engineered for metal stud framing, enabling accurate box placement during rough-in.
- Flush Installation: Flush-mount design positions the box face for a clean, code-compliant wall finish alignment.
- Conduit Wiring System: Configured for conduit-fed wiring systems commonly specified in commercial and industrial construction.
Certifications & Compliance
- UL Listed
Technical Specifications
- Product Type: Steel Box
- Product Size: 4 in
- Product Depth: 2.125 in
- Product Shape: Square
- Drawn or Welded: Welded
- Bracket Type: MS, for Metal Studs
- Wiring System: Conduit
- Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
- Series: BOX-LOC® Series
- Certified Listed: UL Listed
Typical Applications
- Commercial and Industrial Electrical Installations
- Metal Stud Wall Framing
- Conduit Raceway Systems
- Flush-Mount Outlet and Junction Box Installations
- New Construction and Renovation Wiring
Why RACO?
RACO builds the 238 square box from welded steel for a rugged, code-compliant enclosure, and backs it with UL Listing for verified safety performance. The BOX-LOC® Series MS bracket simplifies accurate box positioning on metal stud framing, helping electricians achieve consistent, flush installations on commercial and industrial projects. With nine 1/2 in. knockouts and five combination TKO knockouts, the RACO 238 offers the field flexibility contractors need for conduit-fed circuits.
Manufacturer Resources
Spec Sheet
Product Specs
- list_batch:
- RACO-20260916
- Product Type:
- Outlet Box
- Product Size:
- 4 in
- Product Depth:
- 2.125 in
- Product Shape:
- Square
- Drawn or Welded:
- Welded
- Bracket Type:
- MS, for Metal Studs
- Wiring System:
- Conduit
- Knockouts:
- 1/2 in;1/2 - 3/4 in Combination (TKO)
- Series:
- BOX-LOC® Series
- Certified Listed:
- UL Listed
- Department:
- Electrical
- Product Subgroup:
- Electrical Boxes
- Product Group:
- Boxes & Enclosures
RACO RACO238 – Frequently Asked Questions
1) Will the RACO 238 box mount to metal stud framing?
That's exactly what it's built for. The RACO 238 carries an MS bracket from the BOX-LOC Series, made for metal studs, and it sets the box face flush for the finished wall. If you're framing with wood studs, you want a different bracket style instead of the MS.
2) What conduit sizes can I run into the RACO 238?
Knockouts are 1/2 inch, plus five combination TKO knockouts that open to either 1/2 or 3/4 inch. There are nine 1/2 inch KOs in total, so you have entries on the sides and back for 1/2 inch EMT and the option to step up to 3/4 inch where a bigger raceway lands.
3) Can I use the RACO 238 with NM cable (Romex)?
No. The 238 is configured as a conduit box, with plain knockouts and no cable clamps. For NM cable you need a box with integral cable clamps or you have to use listed connectors in the knockouts where the installation permits it.
4) Is the RACO 238 a welded box or a drawn box, and does that matter?
Welded. The body is formed and welded rather than drawn from one piece, which is the construction normally specified for conduit work because welded boxes accept more knockouts in the walls and corners than a drawn box can.
5) Is the RACO 238 steel box UL Listed for commercial work?
It is UL Listed, and RACO positions it for commercial and industrial electrical installations, flush-mounted in metal stud walls on conduit-fed circuits.
6) Does the RACO 238 come with a cover or device ring?
The 238 ships as the box with the MS bracket. A 4 inch square cover or raised device ring is a separate item, and the ring depth you pick has to match your wall finish thickness so the device sits flush.
