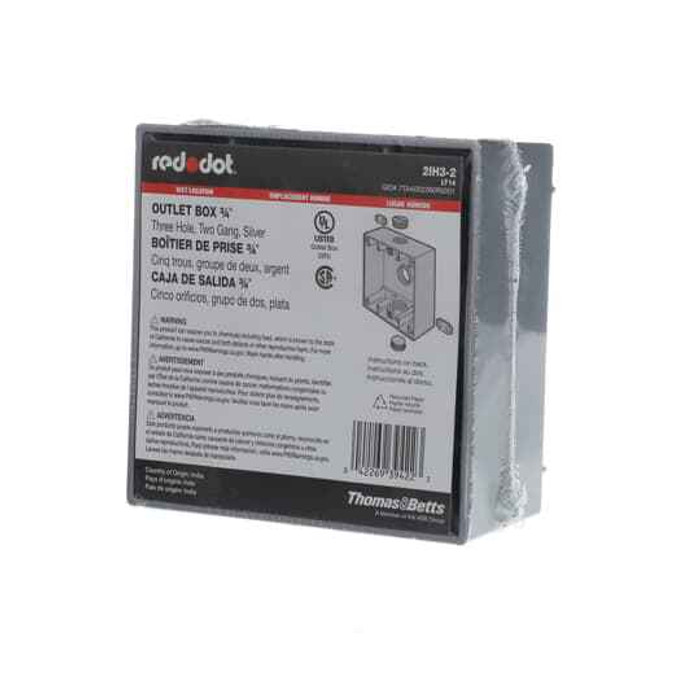

RAINTIGHT DEV BOX-2 GANG, 3 HOLE
Manufacturer Resources
Product Specs
- Application:
- Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- Product Group:
- Electrical Boxes
- Product Type:
- Device Boxes, Covers & Accessories
- Product type2:
- Weatherproof boxes
- Selling Unit Of Measure:
- each
- Special Functions:
- Clean cover edges help provide good gasket sealing
- Standards:
- UL E28688
- Volume:
- 31 cu.. in
- Department:
- Electrical
- Product Subgroup:
- Outlet Boxes
- Product Color:
- Silver
Red Dot 2IH3-2 – Frequently Asked Questions
1) Can the Red Dot 2IH3-2 weatherproof box be used outdoors in a wet location?
Yes. The 2IH3-2 is a raintight Dry-tite device box built to protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations, so an exterior wall or an unprotected outdoor run is within its intended use. It carries UL file E28688. Pair it with a gasketed weatherproof cover to keep the rating intact.
2) How many conductors will fit in a 31 cubic inch two gang box?
The 2IH3-2 has 31 cubic inches of volume. Working from the NEC free space allowances, that supports 15 of 14 AWG, 13 of 12 AWG, or 12 of 10 AWG conductors before deductions for the devices, clamps and grounds in the box. Two devices in a two gang box take two volume allowances each at the largest conductor present, so count those before you fill it.
3) What does the 3 hole designation on the Red Dot 2IH3-2 mean for conduit entry?
Three threaded hubs on the box, so you get three conduit entries for a two gang device box. That is enough for a feed in, a run out, and a third leg to a nearby box or fixture without adding a junction. Any hub you do not use has to be closed with a threaded plug to keep the enclosure raintight.
4) Will a standard two gang weatherproof cover seal properly on this box?
Yes, the box is machined with clean cover edges so a gasket seats evenly and seals, which is the whole point of the Dry-tite design. The cover and gasket are separate items, though. Order a two gang weatherproof cover matched to the devices going in (duplex, GFCI, toggle switch) along with its gasket.
5) Is the Red Dot 2IH3-2 sold individually or only by the case?
The selling unit of measure is each, so a single 2IH3-2 box can be ordered. It is also offered in a 100 pack for crews standardizing a building or a large outdoor branch circuit job.
6) What is the exact manufacturer part number for this Red Dot two gang raintight box?
Red Dot 2IH3-2, UPC 042269394223. It is a two gang, three hole raintight device box with 31 cubic inches of volume, made in India.
7) What color and finish is the Red Dot 2IH3-2 box?
Silver. On an exposed exterior wall that reads as a plain metallic box, so if the elevation calls for a painted finish plan on field painting the box and cover after install.
