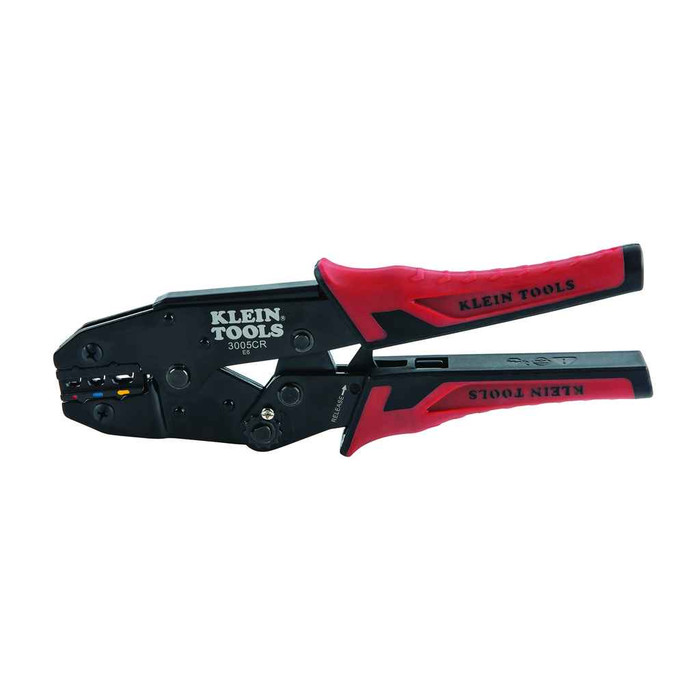

Klein Tools 3005CR Ratcheting Crimper, 10-22 AWG - Insulated Terminals

Klein Tools Ratcheting Crimper 10-22 AWG Insulated Terminals with Dual-Material Grips

(No reviews yet) Write a Review

Model: 3005CR
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$95.97
$71.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Klein Tools Ratcheting Crimper 10-22 AWG Insulated Terminals with Dual-Material Grips

Professional Wire Termination Tool with Three Crimping Cavities

The Klein Tools Ratcheting Crimper delivers reliable performance for crimping insulated terminals onto 10-22 AWG stranded copper wire. This professional-grade steel tool features three dedicated crimping cavities and dual-material molded grips for enhanced comfort during extended use. The built-in ratchet mechanism ensures full-cycle crimping for consistent, uniform results every time.

Professional Features & Benefits

  • 10-22 AWG Wire Range: Accommodates a wide range of stranded copper wire sizes for versatile electrical termination applications.
  • Three Crimping Cavities: Dedicated cavities for 22-16 AWG (Red), 16-14 AWG (Blue), and 12-10 AWG (Yellow) terminals eliminate the need for multiple tools.
  • Built-in Ratchet Mechanism: Ensures complete crimping cycles for uniform, professional-quality connections every time.
  • Adjustable Compound Action Design: Dial adjustment controls crimping force while providing maximum leverage for consistent results.
  • Dual-Material Molded Grips: Red and black handle construction provides enhanced comfort and secure grip during operation.
  • Steel Construction: Durable material ensures long-lasting performance in professional electrical work environments.
  • Unique Cavity Design: Provides consistent crimp quality from either side of the tool for improved versatility.

Technical Specifications

  • Cable Size: Front Cavity - 22-16 AWG Insulated Terminals; Mid Cavity - 16-14 AWG Insulated Terminals; Rear Cavity - 12-10 AWG Insulated Terminals
  • Connector Type: Insulated
  • Department: Electrical
  • Depth: 8.9400 in
  • Handle Color: Red, Black
  • Handle Finish: Dual-Material
  • Height: 0.8700 in
  • Material: Steel
  • Overall Height: 0.09" (0.2 cm)
  • Overall Length: 9" (22.9 cm)
  • Overall Width: 3" (7.6 cm)
  • Product Details: Ratcheting Crimper
  • Product Group: Hand Tools
  • Product Subgroup: Screwdrivers & Drivers
  • Product Type: Ratcheting Crimper
  • Weight: 1.3 lb (0.6 kg)
  • Width: 3.0400 in

Professional Applications

  • Electrical Panel Wiring and Terminations
  • Control Cabinet Assembly
  • Industrial Equipment Installation
  • Commercial Building Electrical Work
  • Maintenance and Repair Operations
  • Professional Electrical Contracting

Why Choose Klein Tools Quality?

Klein Tools delivers professional-grade hand tools engineered for durability and consistent performance. The steel construction and dual-material handle finish ensure reliable operation in demanding electrical work environments, while the precision-engineered ratcheting mechanism provides the quality and dependability professionals expect.

Manufacturer Resources

Spec Sheet

Product Specs

Connector Type:
Insulated
Handle Color:
Red, Black
Handle Finish:
Dual-Material
Overall Height:
0.09" (0.2 cm)
Overall Length:
9" (22.9 cm)
Overall Width:
3" (7.6 cm)
Department:
Electrical
Product Group:
Hand Tools
Product Subgroup:
Wire Strippers & Crimpers
Product Type:
Crimper
Product Details:
Ratcheting Crimper
Product Height:
0.8700 in
Product Material:
Steel
Product Weight:
1.3 lb (0.6 kg)
Product Width:
3.0400 in
Product Depth:
8.9400 in

Klein Tools 3005CR – Frequently Asked Questions

1) Will the Klein Tools 3005CR crimp non-insulated or open-barrel terminals?
No. The 3005CR is built for insulated terminals only, and all three cavities are sized to insulated ring, fork, and butt connectors in the standard color code. For non-insulated lugs or open-barrel/Molex-style pins you need a different die set, since crimping a bare terminal in an insulated cavity deforms the barrel instead of compressing it properly.
2) Which cavity do I use for red, blue, and yellow terminals on the Klein 3005CR crimper?
Each color has its own cavity. Front cavity handles 22-16 AWG red terminals, the mid cavity handles 16-14 AWG blue, and the rear cavity handles 12-10 AWG yellow. One tool covers the full 10-22 AWG range, so you are not swapping tools partway through a panel.
3) Can I crimp 8 AWG terminals with this Klein ratcheting crimper?
No. The largest cavity on the 3005CR tops out at 12-10 AWG insulated terminals, so 8 AWG and larger lugs are outside its range. For those you need a heavier crimper or a hydraulic/battery lug tool.
4) Does the ratchet on the Klein 3005CR release if the crimp is too tight or too loose?
The ratchet won't let go until the crimp cycle is complete, which is what gives you a uniform crimp every time rather than one that depends on hand pressure. Crimp force itself is set by a dial adjustment on the compound-action mechanism, so if your terminals are coming out over- or under-compressed you tune the dial rather than changing tools.
5) Is this Klein crimper usable in a tight control cabinet or junction box?
It is a 9 inch long tool, 3 inches wide, weighing 1.3 lb, so it needs a full hand swing to complete the ratchet stroke. That works fine in a panel or control cabinet, but in a crowded box you'll usually crimp the terminal outside the enclosure and then dress the conductor in. The cavities crimp consistently from either side of the tool, which helps when you can only get at it from one direction.
6) Is the Klein 3005CR rated for live electrical work?
Treat it as a non-insulated hand tool. The 3005CR is steel bodied with dual-material molded red and black grips for comfort and hold, not as a voltage barrier. Work it de-energized; if you need protection for energized work, use a tool specifically marked as insulated for that purpose.
7) Will the Klein 3005CR work on solid copper wire, or only stranded?
It's specified for crimping insulated terminals onto 10-22 AWG stranded copper. Solid conductors don't compact the same way inside a barrel and can loosen under vibration, so for solid wire use a terminal method rated for it.
8) Do I need a separate stripper or cutter with this crimper?
Yes. The 3005CR is a dedicated crimping tool with three terminal cavities and no stripping or cutting station, so an electrician stocking a bag with it still needs a wire stripper and side cutters. The upside is the dies are purpose-built, so crimp quality doesn't suffer the way it does on combination strip/cut/crimp pliers.
9) Is one Klein 3005CR enough to standardize crimping across a maintenance crew?
For insulated terminal work in the 10-22 AWG band, yes. The ratchet forces a complete cycle, so crimps come out the same regardless of who is holding the tool, which is the main argument for issuing these rather than plier-style crimpers across an MRO or facilities crew. Anything above 10 AWG, or non-insulated lugs, still needs a second tool.
