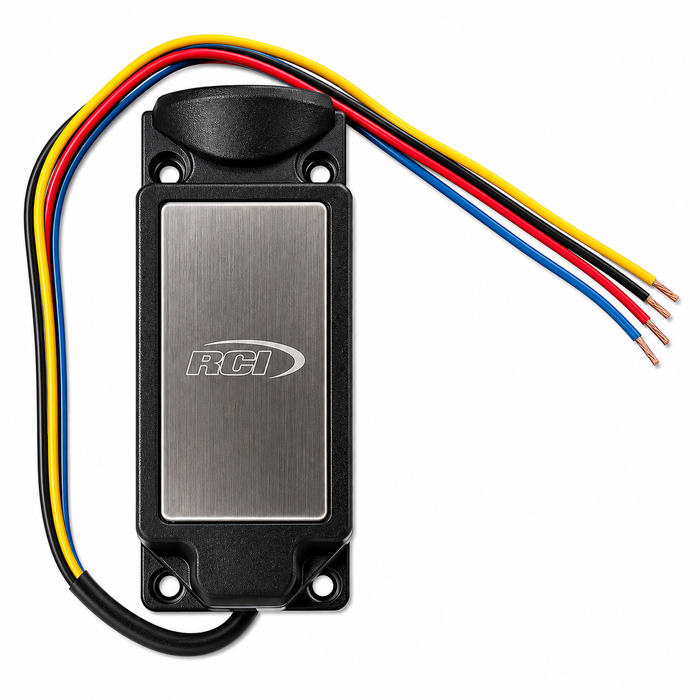

RCI 3513 Electromechanical Cabinet Lock with 440 Holding Force and Dual Voltage 12/24VDC Operation

Professional Cabinet Security Solution

The RCI 3513 Electromechanical Cabinet Lock delivers reliable electronic access control for cabinet doors and drawer applications in small enclosures. This commercial-grade lock operates on dual voltage 12/24VDC with field-selectable fail-safe/fail-secure operation and provides 440 holding force for secure cabinet protection. The compact surface-mount design measures 2" x 1.75" x 6" and features keyless operation with non-handed installation flexibility for versatile commercial applications.

Professional Features & Benefits

  • Compact Dimensions: 2" width x 1.75" height x 6" depth enables installation in small enclosures and tight spaces.
  • Secure Holding Force: 440 holding force provides reliable cabinet security for commercial applications requiring controlled access.
  • Dual Voltage Operation: 12/24VDC compatibility with 184mA at 12VDC and 90mA at 24VDC for flexible power system integration.
  • Field-Selectable Operation: Configurable fail-safe or fail-secure modes allow adaptation to specific security requirements and application needs.
  • Commercial-Grade Construction: USA-manufactured quality with black finish for professional appearance and durability in commercial environments.
  • Non-Handed Installation: Universal mounting design simplifies installation and reduces inventory requirements for various cabinet configurations.
  • Keyless Operation: Electronic control eliminates mechanical key management while providing secure access control integration.
  • Surface Mount Design: Easy installation method suitable for cabinet door or drawer applications in small enclosures.

Technical Specifications

  • Application: For Cabinet Door or Drawer Applications, for Small Enclosures
  • Battery Operated: No
  • Box Depth: 6
  • Box Height: 1.75
  • Box Weight: 0.5
  • Box Width: 2
  • Commercial/Residential: Commercial
  • Country of Origin: USA
  • Cylinder and Keyways: Keyless
  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Electronic: Yes
  • Fail-Safe/Fail-Secure: Field Selectable
  • Holding Force: 440
  • Keyed: No
  • Keyed Function: Non-Keyed
  • Mounting Method: Surface
  • Parts and Accessories Type: Replacement Parts
  • Power: 184mA at 12 VDC, 90mA at 24 VDC
  • Product Attribute: Parts and Accessories
  • Product Category: Cabinet Hardware
  • Product Finish: Black
  • Product Group: Electronic Access Controls
  • Product Subgroup: Parts and Accessories
  • Product Type: Cabinet Locks
  • Product Voltage: 12/24VDC
  • Series: 3 Series
  • Subcategory: Cabinet Locks

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 12/24VDC voltage and current capacity (184mA at 12VDC or 90mA at 24VDC) before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified cabinet location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including fail-safe/fail-secure operation per application requirements.
  6. Restore power and test all functions including normal operation, holding force engagement, and integration with connected access control systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Cabinets
  • Healthcare Equipment Storage
  • Educational Institution Secure Storage
  • Retail Point-of-Sale Security
  • Industrial Control Panel Access
  • Government Facility Secure Enclosures
  • Office Furniture Access Control

Why Choose RCI Quality?

RCI cabinet lock products deliver professional-grade reliability with USA manufacturing and commercial-grade construction rated for demanding access control applications. The field-selectable fail-safe/fail-secure operation and dual voltage compatibility provide installation flexibility while maintaining secure 440 holding force performance. Engineered for commercial environments where dependable electronic cabinet security is essential.

Manufacturer Resources

RCI Product Catalog

Product Specs

Product Group:
Electronic Access Controls
Series:
3 Series
Battery Operated:
No
Box Depth:
6
Box Height:
1.75
Box Weight:
0.5
Box Width:
2
Country of Origin:
USA
Holding Force:
440
Application:
For Cabinet Door or Drawer Applications, for Small Enclosures
Keyed:
No
Subcategory:
Cabinet Locks
Commercial/Residential:
Commercial
Cylinder and Keyways:
Keyless
Electronic:
Yes
Product Type:
Electromechanical Cabinet Locks
Power:
184mA at 12 VDC, 90mA at 24 VDC
Keyed Function:
Non-Keyed
Fail-safe / Fail-secure:
Field Selectable
Product Subgroup:
Parts and Accessories
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Voltage:
12/24VDC
Product Finish:
Black
Door Hand Direction:
Non-Handed
Mounting Method:
Surface
Product Category:
Cabinet Hardware
Department:
Door Hardware

RCI RCI-3513 – Frequently Asked Questions

1) Will the RCI 3513 cabinet lock work on a drawer, or is it only for cabinet doors?
Both. The RCI 3513 is built for cabinet door or drawer applications and for small enclosures, and it mounts to the surface rather than requiring a mortise pocket, so there is no prep to cut into a thin drawer front. It is also non-handed, so the same unit works on a left or right swinging cabinet door and on a drawer with no separate part number to order.
2) Can I run the RCI 3513 off my existing 24VDC access control power supply, and how much current does it draw?
Yes. The 3513 is a dual voltage unit that runs on either 12 or 24VDC, drawing 184mA at 12VDC and 90mA at 24VDC. Size the supply from the voltage you are actually using: ten of them on a 24VDC bus is 900mA, while the same ten at 12VDC is 1.84A. It is not battery operated, so it needs a wired supply.
3) Does the RCI 3513 cabinet lock unlock or stay locked when the power drops?
That is your call at install. Fail-safe and fail-secure are field selectable on the 3513, so one part covers both. Set it fail-safe where the cabinet has to release on a power loss or fire alarm drop, and fail-secure where the contents must stay locked through an outage, such as a drug cabinet or a records enclosure. Decide before you close up the enclosure, since the setting is made at the lock.
4) How much space do I need inside the cabinet to mount an RCI 3513?
The 3513 measures 2 x 1.75 x 6 inches, so plan on a clear run of about 6 inches along the mounting surface plus room to land the wiring. In a shallow enclosure the 6 inch figure is the one that catches people out, so check it against the inside of the cabinet before you drill.
5) Is 440 pounds of holding force enough for a secure storage cabinet?
The 3513 holds at 440, which suits cabinet and drawer duty in commercial settings: narcotics and equipment storage, POS cash enclosures, control panel doors, and secure file cabinets. It is a cabinet-scale device, not a door magnet, so do not carry it over to a swinging entry door or an egress opening. For those you want a full size electromagnetic lock or an electric strike sized to the door.
6) Does the RCI 3513 cabinet lock take a key or a cylinder?
No cylinder and no key. The 3513 is keyless and non-keyed, released electrically from whatever you wire it to, a credential reader, a keypad, a request-to-exit button, or an access panel output. That means no key management across a fleet of cabinets, but it also means there is no mechanical override at the lock itself, so plan a bypass at the power supply or head end if staff need to get in during an outage.
7) What finish does the RCI 3513 come in, and will it be visible on the cabinet?
Black, and yes, it is surface mounted so the body sits on the cabinet interior face rather than buried in the material. On glass front or open display cabinets that matters; on a closed metal enclosure or the underside of a drawer it is out of sight once the door shuts. Black is the only finish offered.
8) Is the RCI 3513 cabinet lock made in the USA?
Yes, the 3513 is USA manufactured, which is what agencies and institutions with domestic sourcing language in their purchase orders are looking for on an access control line item.
