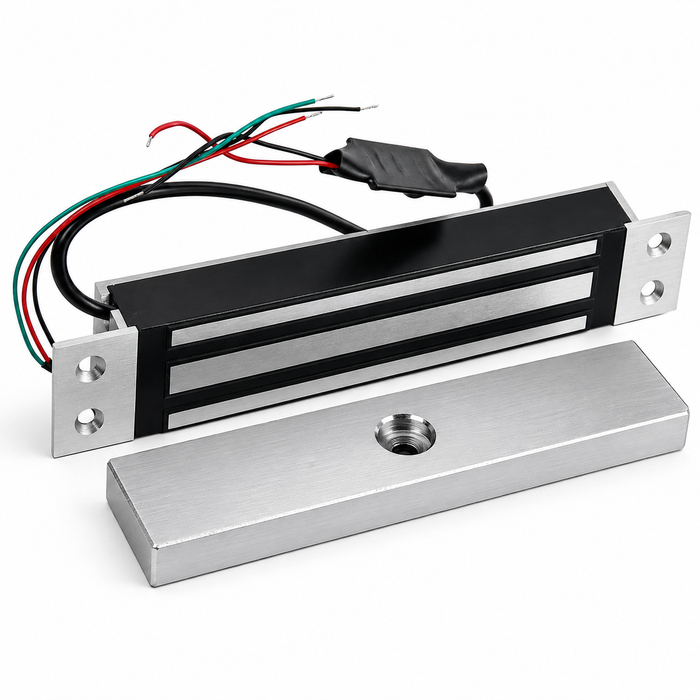

RCI 8360 Mortise MiniMag Electromagnetic Lock with 750 Lb Holding Force

RCI 8360 Mortise MiniMag Electromagnetic Lock with 750 Lb Holding Force

(No reviews yet) Write a Review

Model: RCI-8360 28

In Stock (leaves warehouse same day if ordered before 3pm ET)

$540.00
$355.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RCI 8360 Mortise MiniMag Electromagnetic Lock with 750 Lb Holding Force

Low-Profile Electromagnetic Security for Sliding Door Applications

The RCI 8360 Mortise MiniMag electromagnetic lock delivers reliable security for sliding door applications with 750 lbf holding force and field-selectable 12/24VDC operation at 500mA maximum. This low-profile electromagnetic lock features brushed anodized aluminum construction that blends seamlessly with sliding door aesthetics while providing fail-safe operation and built-in remote lock status monitoring capabilities.

Professional Features & Benefits

  • Compact Dimensions: 9" x 1-1/2" x 1-1/6" low-profile design specifically engineered for sliding door installations where space is limited.
  • High Holding Force: Up to 750 lbf holding force provides secure retention for commercial sliding door applications.
  • Flexible Power Options: Field-selectable 12/24VDC operation with 500mA maximum current draw at 12VDC for versatile system integration.
  • Fail-Safe Operation: Unlocks automatically during power loss to ensure safe egress in emergency situations.
  • Remote Monitoring: Built-in lock status sensor enables remote monitoring of lock engagement for enhanced security management.
  • Durable Construction: Brushed anodized aluminum finish provides corrosion resistance and aesthetic integration with sliding door hardware.
  • Lifetime Limited Warranty: Comprehensive warranty coverage provides long-term protection and confidence in product reliability.

Technical Specifications

  • Low-profile design ideal for sliding doors
  • 500mA Field-Selectable 12/24VDC (Max at 12VDC)
  • Up to 750lbf Holding Force
  • Lifetime Limited Warranty
  • Fail-Safe
  • Built-In Remote Lock Status Sensor

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 12/24VDC voltage and 500mA current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including fail-safe operation per application requirements.
  6. Restore power and test all functions including normal operation, lock status monitoring, and integration with connected systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Retail Loss Prevention
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Industrial Facility Monitoring
  • Emergency Exit Compliance
  • Sliding Door Security Applications

Why Choose RCI Quality?

RCI electromagnetic lock products deliver professional-grade reliability with brushed anodized aluminum construction rated for 750 lbf holding force and backed by a lifetime limited warranty. The 8360 Mortise MiniMag series combines fail-safe operation with built-in status monitoring for demanding commercial applications where dependable sliding door security is essential.

Manufacturer Resources

RCI Product Catalog

Product Specs

Commercial/Residential:
Commercial
Holding Force:
750
Product Group:
Electronic Access Controls
Product Subgroup:
Electromagnetic Locks
Product Type:
Electromagnetic locks
Subcategory:
Electromagnetic Locks
Fasteners:
Self Drilling TEC Screws
Electronic:
Yes
Lock Type:
Mortise
Series:
Mortise MiniMag
Fail-safe / Fail-secure:
Fail-Safe
Product Model:
8360
Product Voltage:
12/24VDC
Product Function:
For sliding doors
Door Hand Direction:
Non-Handed
Product Dimension:
9" x 1-1/2" x 1-1/6"
Product Category:
Electronic Access Controls
Department:
Door Hardware
Application:
Sliding Doors

RCI RCI-8360 28 – Frequently Asked Questions

1) Will the RCI 8360 MiniMag work on a sliding door, or is it only for swinging doors?
Sliding doors are what the 8360 Mortise MiniMag is built for. It mortises into the frame or header rather than surface mounting on a swing door, and the body measures 9 x 1-1/2 x 1-1/6 inches, so it hides in a track or jamb where a full size mag lock body would not fit. If you are locking a standard swing door, this is the wrong form factor and you want a surface mount mag lock sized for a swinging leaf.
2) Is 750 lb holding force enough for a commercial sliding door?
The 8360 holds at up to 750 lbf, and it is rated commercial. That figure suits interior sliding doors, retail entries, and controlled openings inside a building. It is not the 1200 lbf class you would specify for a high security perimeter door, so on an exterior opening that has to resist a deliberate pull, step up to a full size mag lock instead.
3) Does the RCI 8360 mag lock release when the power goes out?
It does. The 8360 is fail-safe, so cutting power drops the magnet and frees the door for egress. That is what makes it usable on an egress path, but it also means anything you want to stay locked during an outage needs a battery backup or standby power supply behind it. There is no fail-secure version of this model.
4) How much room do I need in the frame to mortise in an 8360 MiniMag?
Plan a pocket for a body of 9 x 1-1/2 x 1-1/6 inches, plus clearance behind it for the wire run and future service access. On a narrow aluminum slider that is the number to check first, because if the header or jamb cavity will not take the depth, no amount of holding force matters.
5) Do I need to order a left hand or right hand version of the 8360?
No handing to specify. The 8360 Mortise MiniMag is non-handed, so one part number covers a slider that opens either direction. That also means you can stock a single spare for a building with sliders running both ways.
6) Can I monitor whether this mag lock is actually locked from the access control panel?
Yes. The 8360 has a built-in lock status sensor, so the panel or head end can see whether the magnet is engaged rather than just whether it is powered. For a security integrator that is the difference between reporting the door secure and only reporting the relay state. Wire the sensor output back to a monitor point at the panel along with the lock power run.
7) What hardware comes with the RCI 8360 for mounting it?
It ships with self drilling TEC screws, which is what you want for fastening into the aluminum or light steel of a sliding door frame without pre-drilling and tapping. You will still need to pull your own low voltage cable and supply the DC power source, since neither the wire nor the power supply is part of the lock.
8) What finish is the RCI 8360 MiniMag and will it look right on an aluminum slider?
Brushed anodized aluminum. It matches the anodized finish on most commercial aluminum sliding door frames and storefront hardware, and the anodizing gives it corrosion resistance in an opening that sees weather at the threshold. There is one model, the 8360 28, so there is no finish choice to make on the order.
