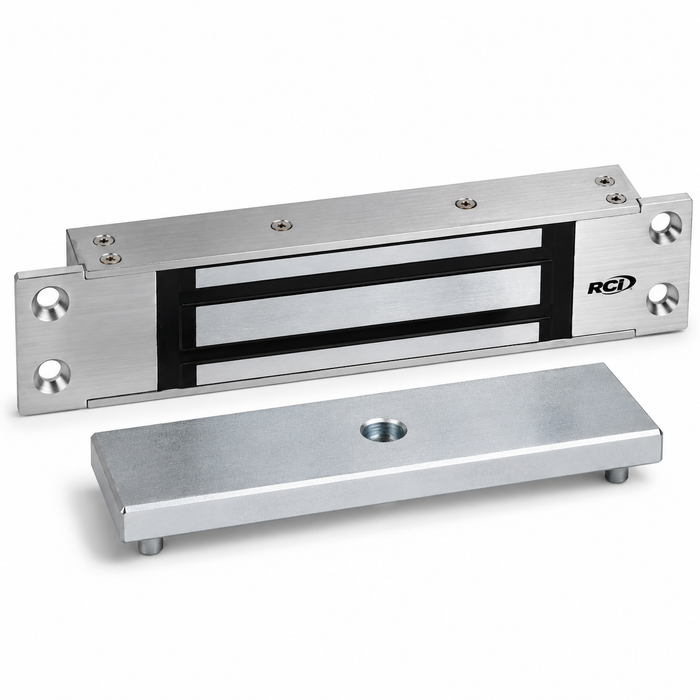

RCI 8365 Mortise MicroMag Electromagnetic Lock - 300 Lb Holding Force with Low-Profile Design

RCI 8365 Mortise MicroMag Electromagnetic Lock - 300 Lb Holding Force with Low-Profile Design

Compact Electromagnetic Security Solution for Small Enclosures

The RCI 8365 Mortise MicroMag electromagnetic lock delivers reliable security for small enclosures, cabinets, and sliding doors with its compact low-profile design. This professional-grade maglock provides up to 300 lbf holding force while operating on field-selectable 12/24 VDC power with low energy consumption at just 400mA maximum at 12VDC. The fail-safe operation ensures secure access control in commercial applications requiring space-efficient electromagnetic locking solutions.

Professional Features & Benefits

• Compact Dimensions: 7-15/16" x 1-11/32" x 13/16" low-profile design ideal for space-constrained installations and small enclosures.
• Powerful Holding Force: Up to 300 lbf holding capacity provides reliable security for cabinets, sliding doors, and small access points.
• Flexible Power Options: Field-selectable 12/24 VDC operation with low energy consumption of 400mA maximum at 12VDC for efficient system integration.
• Fail-Safe Operation: Automatically releases when power is removed, ensuring safe egress and emergency access compliance.
• Specialized Application Design: Engineered specifically for sliding doors, cabinets, and small enclosures where standard maglocks are too large.
• Low Energy Consumption: Efficient power usage reduces system load and operating costs while maintaining full holding force.
• Lifetime Limited Warranty: Comprehensive manufacturer warranty provides long-term protection and confidence in product reliability.

Technical Specifications

• Low-profile design ideal for sliding doors, cabinets and small enclosures
• 400mA Field-Selectable 12/24VDC (Max at 12VDC)
• Up to 300lbf Holding Force
• Lifetime Limited Warranty
• Fail-Safe

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24 VDC voltage selection and 400mA current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including fail-safe operation per application requirements.
6. Restore power and test all functions including normal operation, holding force verification, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Cabinet and Enclosure Access Control
• Sliding Door Security Applications
• Small Equipment Compartment Protection
• Retail Display Case Security
• Industrial Control Panel Access
• Healthcare Equipment Cabinet Security

Why Choose RCI Quality?

RCI electromagnetic locks deliver professional-grade reliability with specialized low-profile construction rated for 300 lbf holding force and efficient 12/24 VDC operation. The Lifetime Limited Warranty provides comprehensive protection and confidence in long-term performance. Engineered for demanding commercial applications where compact electromagnetic security solutions are essential for small enclosures and space-constrained installations.
