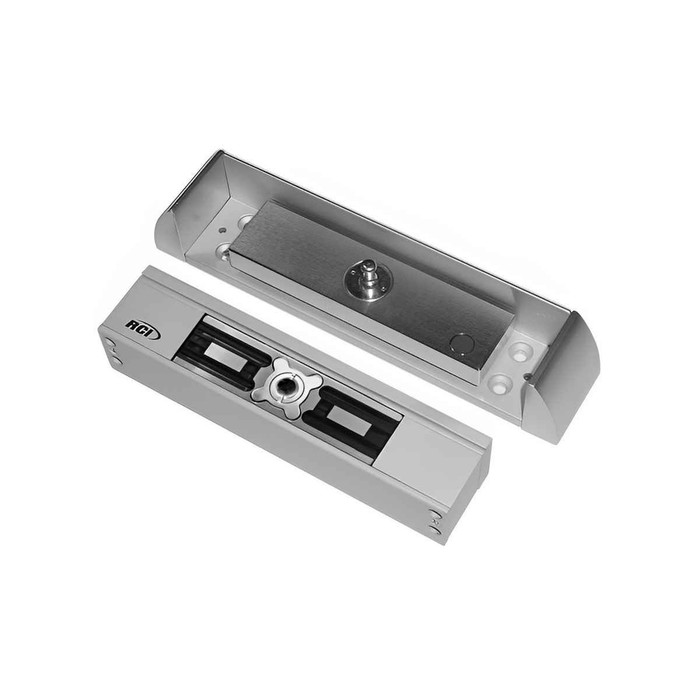

RCI EM-MAG1500 Slim-Line Electromagnetic Lock with 1500lb Holding Force

RCI EM-MAG1500 Slim-Line Electromagnetic Lock with 1500lb Holding Force

Compact Electromechanical Security Solution for Narrow Profile Applications

The RCI EM-MAG1500 is a compact electromagnetic lock engineered for outswinging doors and small enclosures where space is at a premium. This slim-line design measures just 6-7/32" x 1-7/16" x 1-3/8" while delivering 1500lb holding force with field-selectable 12/24VDC operation. Factory tested to over 1-million cycles, this fail-safe electromagnetic lock features anodized aluminum housing with zinc plating for superior corrosion resistance and includes integrated lock and door status sensors for comprehensive monitoring.

Professional Features & Benefits

• Compact Dimensions: 6-7/32"W x 1-7/16"H x 1-3/8"D design fits narrow profile door frames where standard electromagnetic locks cannot be accommodated.
• Heavy-Duty Holding Force: 1500lbf holding strength provides reliable security while releasing under side load of up to 130lbs for emergency egress safety.
• Proven Durability: Factory tested to over 1-million cycles for long-term reliability in high-traffic commercial applications.
• Flexible Power Options: Field-selectable 12/24VDC operation with low energy consumption - 240mA at 12VDC, 120mA at 24VDC.
• Fail-Safe Operation: Releases automatically during power loss to ensure emergency egress compliance and life safety requirements.
• Status Monitoring: Bi-color light panel indicates lock status with integrated lock and door status sensors for comprehensive system monitoring.
• Anti-Tamper Security: Includes anti-tamper security plate and early warning alarm for enhanced protection against unauthorized access attempts.
• Corrosion-Resistant Construction: Anodized aluminum housing with zinc plating provides exceptional durability for demanding commercial environments.
• Manufacturer Warranty: 3 Year limited warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Electronic: Yes
• Product Category: Electronic Access Controls
• Product Group: Electronic Access Controls
• Product Model: EM-MAG1500
• Product Subgroup: Electromagnetic Locks
• Product Type: Magnetic Electromechanical Locks
• Subcategory: Electronic Access & Data

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24VDC field-selectable voltage and current capacity (240mA at 12VDC, 120mA at 24VDC) before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including fail-safe operation per application requirements.
6. Restore power and test all functions including normal operation, bi-color status indicator, early warning alarm, and integration with connected systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• Small Enclosure Security
• Emergency Exit Compliance

Why Choose RCI Quality?

RCI electromagnetic locks deliver professional-grade reliability with anodized aluminum construction and zinc plating rated for over 1-million cycles. 3 Year limited warranty provides added confidence for demanding commercial applications. Engineered for demanding commercial applications where dependable performance and compact design are essential for narrow profile installations.
