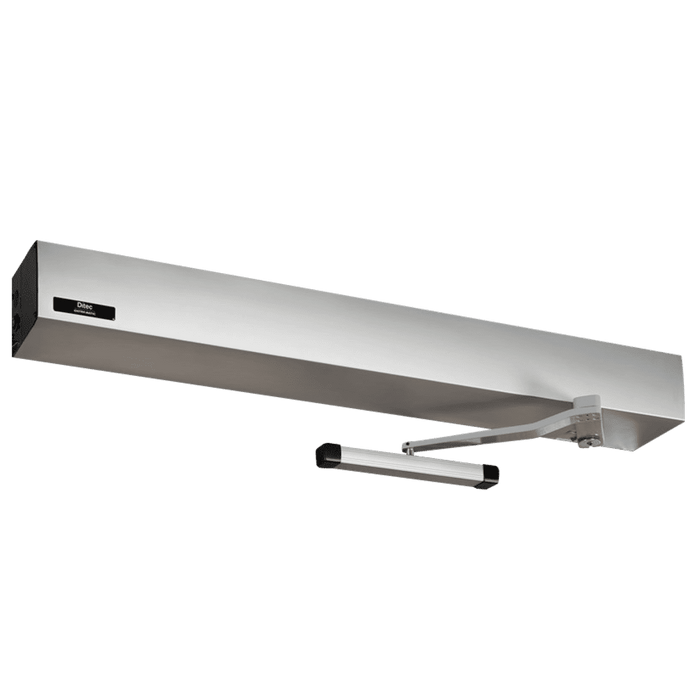

Record USA Low Energy Low Profile Surface Mounted Electromechanical Door Operator, 39" Header, Slide Track Arm Standard, Pull Side Mounted, Up to 36" Door, Left Handed

Record USA Low Energy Low Profile Surface Mounted Electromechanical Door Operator, 39" Header, Slide Track Arm Standard, Pull Side Mounted, Up to 36" Door, Left Handed

(No reviews yet) Write a Review

Model: HA8-LP LPL CL 39
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,617.00
$3,506.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Record USA Low Energy Low Profile Surface Mounted Electromechanical Door Operator, 39" Header, Slide Track Arm Standard, Pull Side Mounted, Up to 36" Door, Left Handed



The HA8-LP low energy operator has the same power and durability of the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.

Quality Heavy Duty Commercial Construction

  • High precision gears made for sustained long-term use
  • Electro Mechanical Design for simple dependable operation
  • Permanent lubrication for maintenance free operation
  • Machined alloy gearbox housing
  • 1/8th HP motor
  • Digital Control Board

Advanced Technology

  • On-board programming
  • Built in strike/mag lock relay - fail safe or fail secure
  • Separate inputs for activation and safety devices
  • Plug-n-play design for fast trouble free installation
  • Compatible with safety and activation devices
  • Integrates with building access & security systems

Durable

  • Built to outlast the competition
  • Perfect for high traffic locations

Manufacturer Resources

Product Specs

Product Group:
Door Controls
Product Subgroup:
Automatic Operators
Product Type:
Automatic Operators
Subcategory:
Door Closers
Commercial/Residential:
Commercial
Door Hand Direction:
Left Handed
Product Category:
Door Controls
Department:
Door Hardware
Mounting Method:
Pull Side

Record-USA HA8-LP LPL CL 39 – Frequently Asked Questions

1) How do I know if I need the left hand Record USA HA8-LP operator or the right hand version?
The HA8-LP low profile operator is handed, and this one is built left handed with pull side mounting. Stand outside the door on the side it swings away from you: if the hinges are on your left, it's a left hand opening. Because the unit is pull side mounted, the header and slide track arm go on the side the door pulls toward, meaning the operator sits on the same side the door swings open to. Order the opposite hand if your opening reads right.
2) Can the Record USA HA8-LP tie into my card reader and mag lock system?
Yes. There's a built in strike and mag lock relay on board that can be set fail safe or fail secure, so it drops or holds the lock according to how your egress plan is written. Activation devices and safety sensors land on separate inputs, and the operator is built to integrate with building access and security systems. For an integrator, that means no separate relay module just to sequence the lock with the door.
3) Why choose the low profile HA8-LP over Record's standard profile operator?
Same motor and gear package, smaller header. The low profile version exists for openings where there isn't enough vertical clearance above the door for a full size header, such as transoms, low soffits, or a tight frame head. If you have the clearance, the standard profile does the same job. Pick the LP when the space, not the performance, is the constraint.
4) Is a slide track arm or a push arm right for this door operator?
This HA8-LP ships with the slide track arm as standard, which is the correct pairing for pull side mounting: the arm rides in a track across the door face rather than projecting out on a linkage. Slide track keeps projection tight and is the usual choice where an arm sticking into the opening would be a hazard or a code issue. Push arms belong on push side installations, which is a different configuration of this operator.
5) Will a low energy operator like this hold up on a high traffic building entrance?
It's built for commercial duty, not residential. The drive uses high precision gears in a machined alloy gearbox housing with permanent lubrication, running off a 1/8 HP motor, and Record lists it for hospitals, retail, schools and universities, airports, convention centers, casinos, industrial buildings and offices. Those are the traffic levels it's intended for.
6) Does the HA8-LP need a separate controller or programming box to set open and hold times?
No separate box. Programming is on board through the digital control board, so open speed, hold open and the rest are set at the operator itself. The wiring is plug and play, which is what keeps a retrofit on an existing opening to a single trip for most installers.
7) Is this a surface mounted operator or does it get concealed in the frame?
Surface applied. The HA8-LP low profile mounts on the face of the frame head above the door, so there's no frame prep or concealment pocket required and it can go onto existing openings. The low profile is offered as a surface applied unit.
8) What finishes does the Record USA HA8-LP low profile operator come in?
Two: 689 clear aluminum and 690 dark bronze. Those are the standard architectural finishes, so a header will match anodized aluminum storefront in clear or a bronze anodized entrance without a paint job on site. If you're standardizing entrances across a campus, pick whichever matches the existing frame heads.
