Klein Tools 63924 Replacement Head for 24-1/2-Inch Bolt Cutter

Klein Tools 63924 Replacement Head for 24-1/2-Inch Bolt Cutter

(No reviews yet) Write a Review

Model: 63924
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$206.69
$9.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

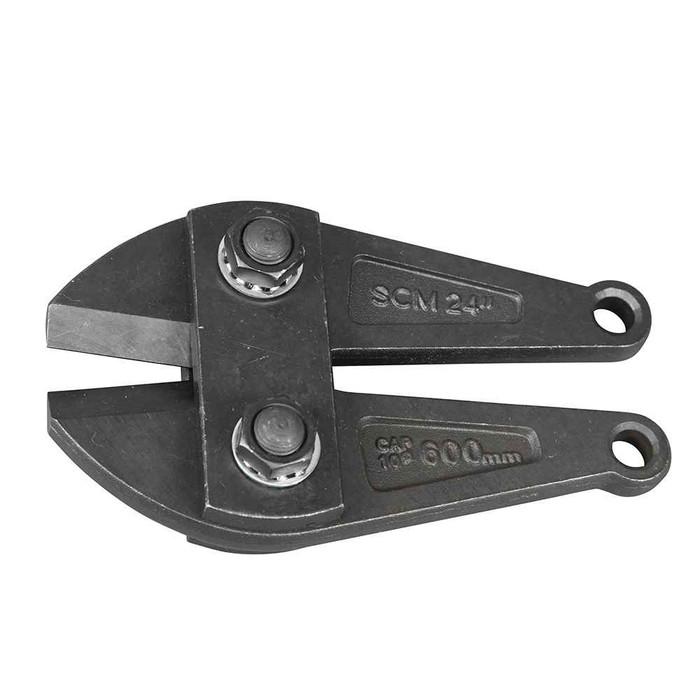

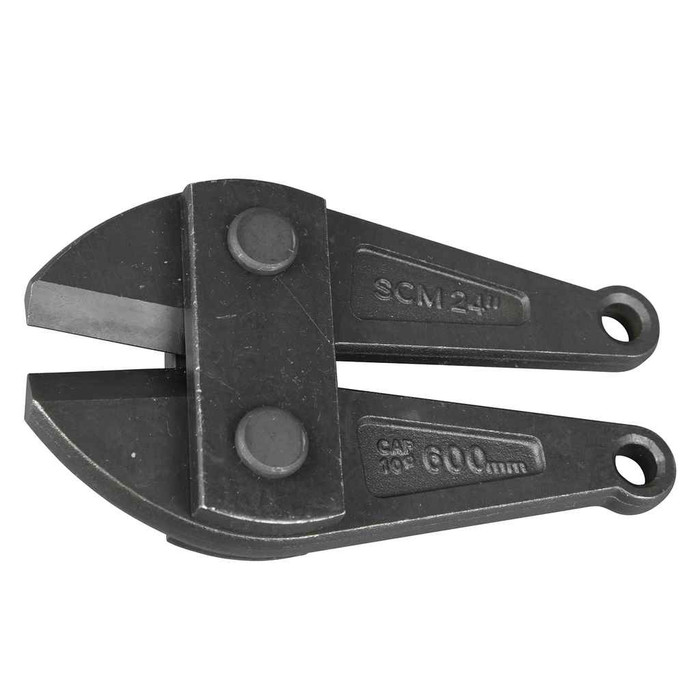

Replacement Head for 24-1/2-Inch Bolt Cutter

  • Warnings

    • NOT for cutting cable.
    • NOT insulated. Will NOT protect against electrical shock.
    • Always wear approved eye protection.

  • Features

    • NOT for cutting cable
    • Includes the Blade, Bolts, Screws and Associated Parts
    • Replacement head for the 24-1/2-Inch Fiberglass-Handled Bolt Cutter (Cat. No. 63124)
    • Soft and medium material cutting capacity of up to Brinell 300, Rockwell C31
    • Hard material cutting capacity of up to Brinell 400, Rockwell C42
    • Includes the blade, bolts, screws and associated parts
    • Forged, alloy tool steel jaws are precision ground for sure, efficient cutting and long life
    • All-purpose, center-cut jaws for soft, medium, and hard metals


63924 - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Cutting Edge:
Pinch Cut
For Use With:
24-1/2'' Fiberglass-Handled Bolt Cutter (Cat. No. 63124)
Hard Material Cutting Max Capacity:
5/16" (8 cm)
Jaw Material:
Steel
Overall Height:
6" (15.2 cm)
Overall Length:
3.25" 8.3 cm)
Overall Width:
1.75" (4.5 cm)
Soft Medium Cutting Max Capacity:
7/16" (1.1 cm)
Department:
Electrical
Product Group:
Power Tools & Accessories
Product Subgroup:
Tool Replacement Parts
Product Type:
Replacement Assembly
Product Details:
Replacement Bolt Cutter Head
Product Height:
6.0000 in
Product Material:
Steel
Product Weight:
2.1900 lbs
Product Width:
1.7500 in
Product Depth:
3.2500 in

Klein Tools 63924 – Frequently Asked Questions

1) What size bolt or rod will this Klein replacement head cut?
Capacity depends on the metal. In soft and medium material the maximum is 7/16 inch, and in hard material it drops to 5/16 inch. Hardness limits are Brinell 300 / Rockwell C31 for soft and medium, Brinell 400 / Rockwell C42 for hard.
2) Does the 63924 bolt cutter head come with the bolts and screws, or just the blade?
Everything needed to rebuild the cutting end comes in the kit: the blade, bolts, screws and associated parts. You reuse the existing fiberglass handles and frame from the 63124.
3) Can I use this bolt cutter head to cut electrical cable or wire rope?
No. The 63924 head is explicitly not for cutting cable. It's a center-cut, pinch-cut jaw for bolts, rod, chain and similar solid metals. Cable and wire rope need a dedicated cable cutter with a shear or clamshell design, otherwise you'll birdcage the strands and damage the blade.
4) Is the Klein 63924 bolt cutter head insulated for live electrical work?
It is not insulated and will not protect against electrical shock, even though it's sold as an electrical department tool. Treat it as a mechanical cutter only, de-energize before cutting, and wear approved eye protection.
5) Why replace just the head instead of buying a whole new bolt cutter?
On the 63124, the fiberglass handles usually outlast the jaws. Swapping in the 63924 head, which weighs 2.19 lbs and comes with its blade and fasteners, restores the cutting end without replacing the full 24-1/2 inch tool. For an MRO crib standardized on the 63124, stocking one spare head keeps the tool in service.
6) What are the jaws made of on the Klein 63924 head?
Forged alloy tool steel, precision ground for the cutting edges. The center-cut geometry handles soft, medium and hard metals within the stated capacities.
7) How big is the 63924 head itself?
The head measures 6 inches overall height, 3.25 inches overall length, and 1.75 inches wide, at 2.19 lbs. That is the head assembly on its own, not the assembled 24-1/2 inch cutter.
