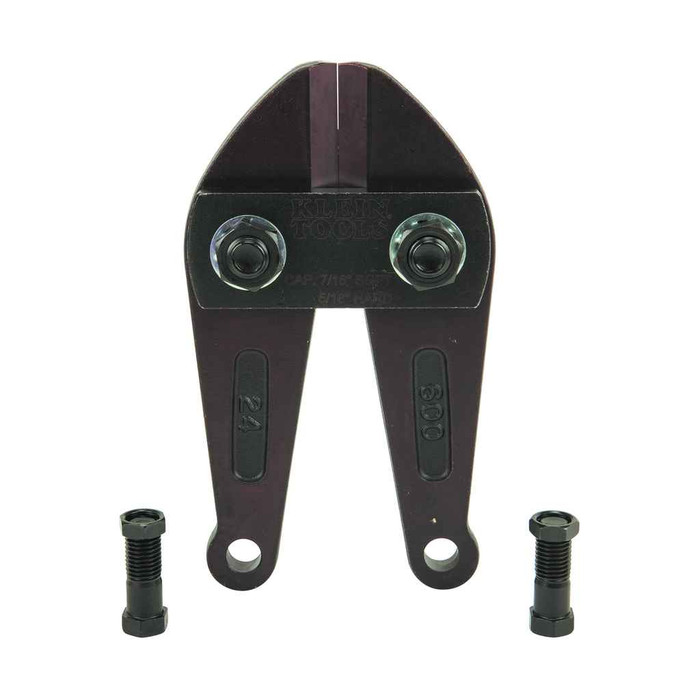

Klein Tools 63824 Replacement Head for 24-Inch Bolt Cutter

Klein Tools 63824 Replacement Head for 24-Inch Bolt Cutter

(No reviews yet) Write a Review

Model: 63824
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$145.01
$82.98
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Replacement Head for 24-Inch Bolt Cutter

  • Warnings

    • Always wear approved eye protection.
    • NOT insulated. Will NOT protect against electrical shock.

  • Features

    • Cutting capacities for soft and medium materials is up to Brinell 300, Rockwell C31
    • Cutting capacities for hard materials is up to Brinell 400, Rockwell C42
    • One Adjustment Realigns Cutting Edges
    • One adjustment realigns cutting edges
    • Cuts soft, medium and hard metals
    • Not for cutting cable
    • Forged, alloy tool steel blade is precision ground for sure, efficient cutting and long life


63824 - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

For Use With:
63324
Hard Material Cutting Max Capacity:
Up to Brinell 400, Rockwell C42
Soft Medium Cutting Max Capacity:
Up to Brinell 300,k Rockwell C31
Department:
Electrical
Product Group:
Power Tools & Accessories
Product Subgroup:
Tool Replacement Parts
Product Type:
Replacement Assembly
Product Details:
Replacement Head for Bolt Cutter Cat. No. 63324
Product Height:
1.5300 in
Product Weight:
1.9350 lbs
Product Width:
3.2400 in
Product Depth:
5.9400 in

Klein Tools 63824 – Frequently Asked Questions

1) Which Klein bolt cutter does the 63824 replacement head fit?
The Klein Tools 63824 head is built for one tool only: the Cat. No. 63324 24-inch bolt cutter. It is not a universal head, so if your cutter is a different length or a different model number, this head will not mount to it.
2) Can I rebuild my 24-inch bolt cutter instead of replacing the whole tool?
Yes. When the jaws on a 63324 24-inch cutter are chipped or worn past adjustment, the 63824 head bolts on as a complete replacement head, so you keep the existing handles. For an MRO or fleet tool crib, that means one part number to stock rather than a whole new cutter every time the blades go.
3) What can this bolt cutter head actually cut, and will it handle hardened rod?
Cutting capacity runs up to Brinell 300 / Rockwell C31 on soft and medium materials, and up to Brinell 400 / Rockwell C42 on hard materials. The blade is forged alloy tool steel, precision ground. Hardened rod inside those hardness limits is fine; anything harder than Rockwell C42 is beyond the blade.
4) Can I use this bolt cutter head on electrical cable or wire rope?
No. Klein states plainly that this cutter is not for cutting cable. Use a dedicated cable cutter instead; cable strands will deform and ruin the ground edges on a bolt cutter blade. The head is also NOT insulated and will not protect against electrical shock, so it must never be used on energized conductors.
5) Do the cutting edges need to be aligned after installing a new bolt cutter head?
Alignment is handled with a single adjustment that realigns both cutting edges. If the jaws start passing rather than meeting squarely after use, that same one adjustment brings them back, which is what keeps the blade life out of the tool rather than throwing it away.
6) Is the 63824 a complete bolt cutter or just the jaw assembly?
Just the head. The 63824 is the replacement jaw/head assembly for a 63324 cutter you already own, with no handles included. If you do not already have the 24-inch cutter, order the complete tool instead.
