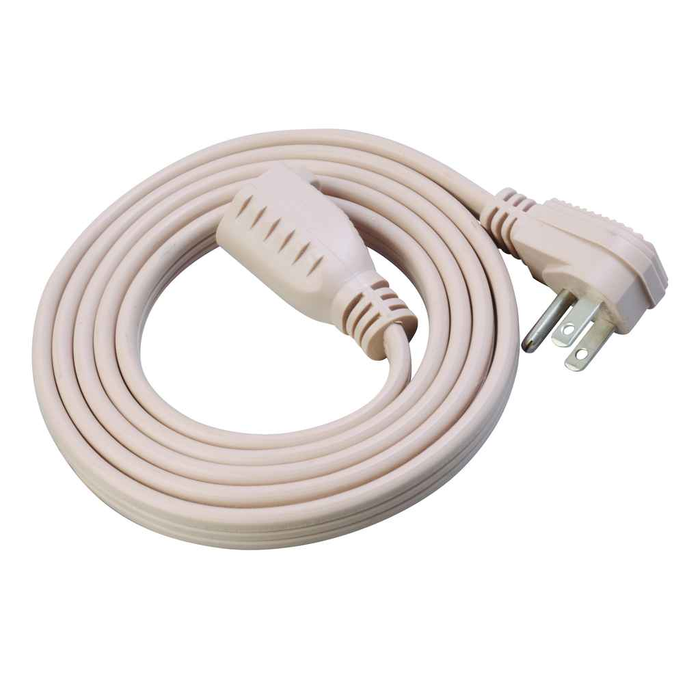

REPLCORD, 14/3 SPT-3 9' BEIGE SW
Manufacturer Resources
Product Specs
- Amps:
- 15
- Batteries Required :
- No
- Certifications And Listings:
- cULus
- Compact Fluorescent Light Bulb :
- No
- Cord Construction Style Tubed Pressure Filled :
- Filled
- Cord Insulation Material:
- PVC
- Csa Certified:
- No
- Direct Burial:
- No
- Energy Guide Label Required:
- No
- Flame Retardant:
- No
- Gauge:
- 14/3
- Gauge Conductor:
- 14/3
- Grounded:
- Yes
- Indoor Outdoor:
- Indoor
- Insulation Material Pvc Tpe Rubber :
- PVC
- Item Depth:
- 2.75
- Item Volume Cubic Feet:
- 0.03213
- Item Weight:
- 1.044
- Master Pack Height:
- 8
- Max Min Temperature F :
- -40 to 140 F
- Maximum Temp C:
- 60
- Maximum Temp F:
- 140
- Minimum Temp C:
- -40
- Minimum Temp F:
- -40
- Nmfc Classification:
- 61490
- Number Of Outlets:
- 1
- Package Length:
- 2.75
- Packaging Type:
- Sleeve
- Plug Color:
- Beige
- Plug Configuration:
- NEMA 5-15P
- Receptacle Color:
- Beige
- Shielded:
- No
- Solar Powered :
- No
- Swing Arm :
- No
- Tier Qty Pallet:
- 12
- Wattage Watts :
- 1875
- Wet Location Use:
- No
- Product Voltage:
- 125
- Product Color:
- Beige
- Product Material:
- SPT-3
Southwire 35333323 – Frequently Asked Questions
1) How much load can a Southwire 35333323 14/3 SPT-3 replacement cord handle?
The 14/3 SPT-3 replacement cord is rated 15 amps at 125 volts, which works out to 1875 watts. That covers a typical 15A general-purpose branch circuit, so appliances like space heaters, vacuums, and shop tools up to 1875 watts are within rating. Do not use it on a 20A load.
2) Is the Southwire 14/3 SPT-3 beige replacement cord grounded, and what plug does it use?
It is a grounded three-wire cord with a NEMA 5-15P plug, the standard three-prong 15A 125V configuration. The 14/3 conductor count includes the equipment ground, so grounded appliances and tools keep their ground path.
3) Can I use this Southwire replacement cord outdoors or in a damp location?
No. The 14/3 SPT-3 beige cord is rated for indoor use only and is not approved for wet locations or direct burial. For an exterior receptacle, a wet-location job, or anything run in the ground, use an outdoor-rated cord instead. The PVC jacket is also not listed as flame retardant.
4) What temperature range is the Southwire 14/3 SPT-3 cord good for?
Rated -40 to 140 degrees F (-40 to 60 C). That upper limit matters if the cord runs near a heat source, a motor housing, or an appliance that gets warm; keep it off hot surfaces. The cold end is fine for unheated storage, though the product itself is still an indoor-rated cord.
5) Is this Southwire cord UL listed for commercial and MRO use?
The 14/3 SPT-3 beige cord carries a cULus listing, so it is recognized for both US and Canadian markets. Note that the record does not flag it as separately CSA certified; the cULus mark is the listing it carries.
6) Does this Southwire replacement cord have more than one outlet on it?
One outlet only. It is a single-receptacle beige replacement cord, not a multi-tap or power strip. If you need to feed several devices from one run, use a separate multi-outlet product rather than daisy-chaining this one.
7) What does SPT-3 mean, and is it heavier than the SPT-2 cord I usually buy?
SPT-3 refers to the thermoplastic parallel-jacket construction used on this cord, and it is the heavier-walled version of the SPT family compared with SPT-2, which is why it is paired with 14 AWG conductors and a 15A rating here. Construction is the filled style rather than a tubed or pressure jacket, with PVC insulation.
8) Will the beige Southwire replacement cord match the other appliance cords in my units?
Cord, plug, and receptacle are all beige, so it blends with light-colored walls and appliances rather than standing out like a black cord. Property managers standardizing a building on one look can order the same beige 14/3 SPT-3 item by Southwire part number 35333323 for repeat replacements.
