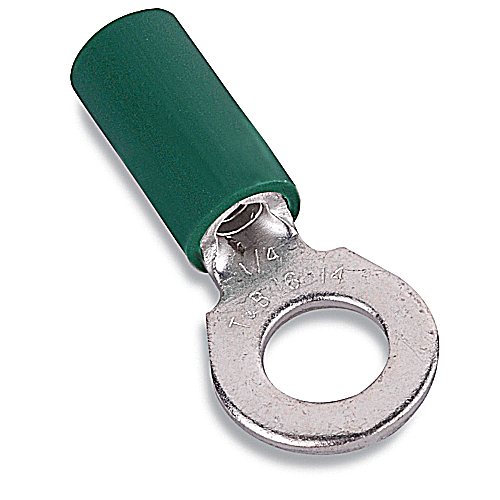

Ring Terminal
Features
- Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Certifications
- UL
- CSA
Manufacturer Resources
Product Specs

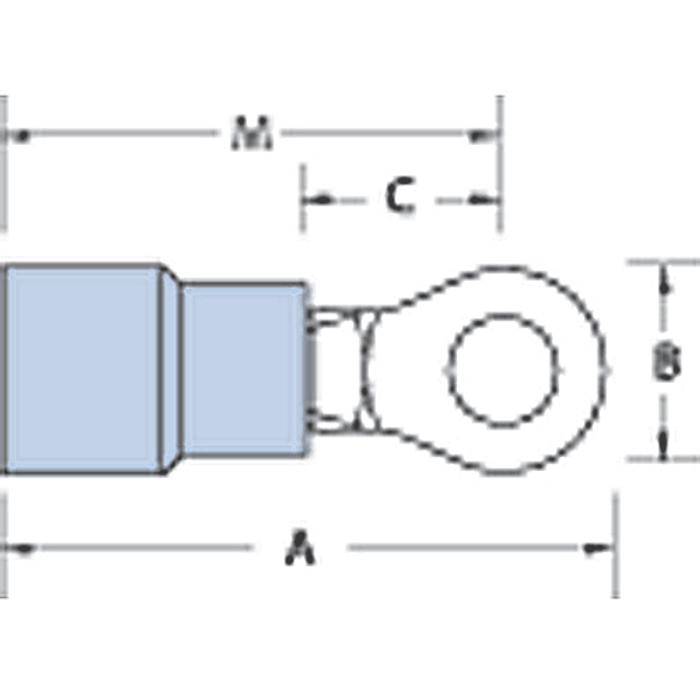

- A Inches :
- 1.57
- Alternate Package Qty:
- RB757
- Application Tools:
- WT2000, ERG4001
- B Inches :
- 0.76
- C Inches :
- 0.54
- Color:
- Green
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 50
- Insulation Type:
- Insulated Vinyl
- M Inches :
- 1.19
- Material:
- Copper
- Maximum Insulation Inches :
- 0.21
- Order Multiple:
- 50
- Outer Package:
- 250
- Package Height:
- 9
- Package Length:
- 15.1
- Package Type:
- Standard
- Package Width:
- 9.5
- Product Group:
- Connectors
- Recommended Tool:
- WT2130A
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.03
- Stud Size:
- 2-Jan
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 1.06 lbs. per 100
- Temperature Rating:
- 105°C
- Terminal Series:
- RBC
- Voltage Rating:
- 600V
- Wire Range:
- 16-14 heavy duty
- Department:
- Electrical
- Product Subgroup:
- Terminals
