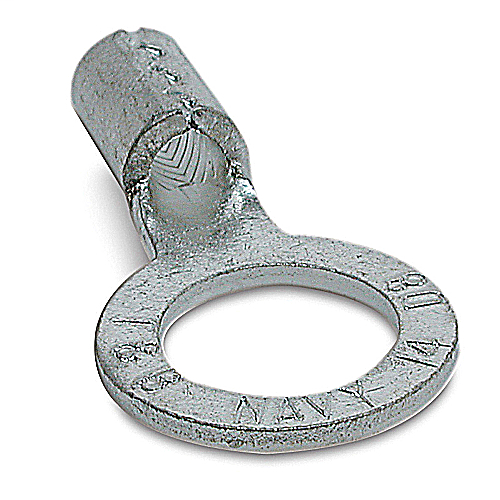

Ring Terminal
Notes
- Not available on Mylar Tape.
Features
- These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Certifications
- UL
- CSA
Manufacturer Resources
Product Specs

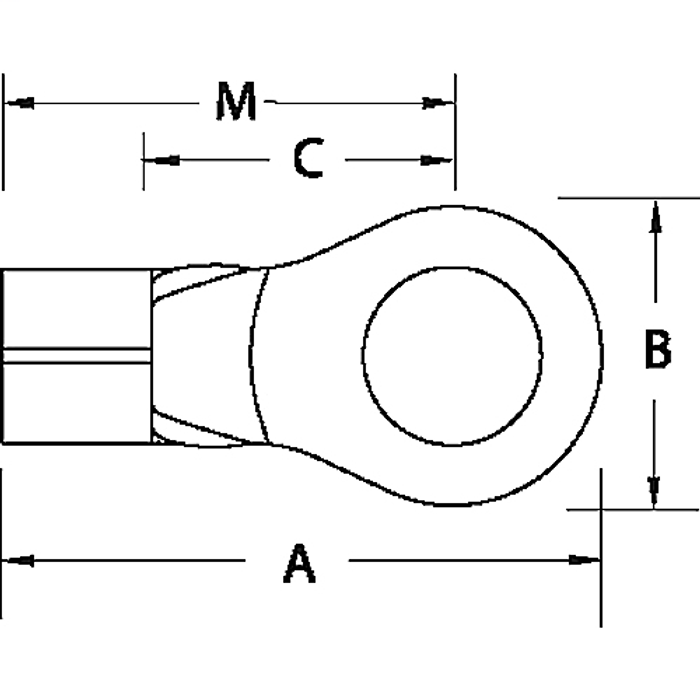

- A Inches :
- 1.49
- Alternate Package Qty:
- E75
- Application Tools:
- WT115A, TBM6, TBM6S, WT3185
- B Inches :
- 0.82
- C Inches :
- 0.55
- Color:
- Metallic
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 20
- Insulation Type:
- Non-Insulated - Brazed Seam
- M Inches :
- 1.08
- Material:
- Copper
- Order Multiple:
- 20
- Outer Package:
- 100
- Package Height:
- 7.1
- Package Length:
- 10.4
- Package Type:
- Standard
- Package Width:
- 9
- Product Group:
- Connectors
- Recommended Tool:
- TBM6S
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.06
- Stud Size:
- 2-Jan
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 1.81 lbs. per 100
- Temperature Rating:
- 150°C
- Terminal Series:
- E
- Voltage Rating:
- 600V
- Wire Range:
- 6
- Department:
- Electrical
- Product Subgroup:
- Terminals
