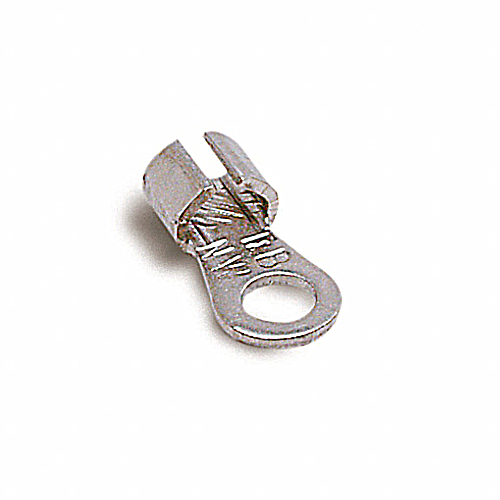

Ring Terminal
Features
- For easily installed, permanent terminations of solid, round, or stranded nichrome wires as used in toasters, heaters, etc.
Notes
- Not available on Mylar Tape.
Manufacturer Resources
Product Specs

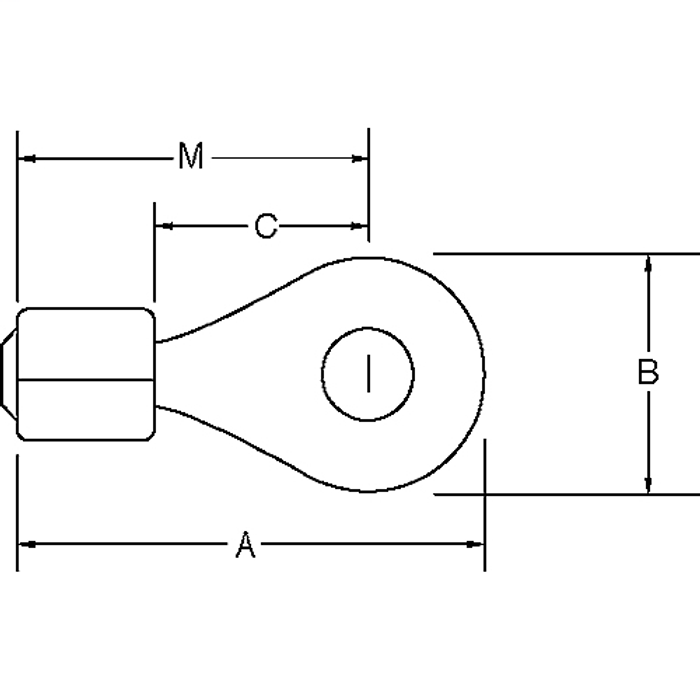

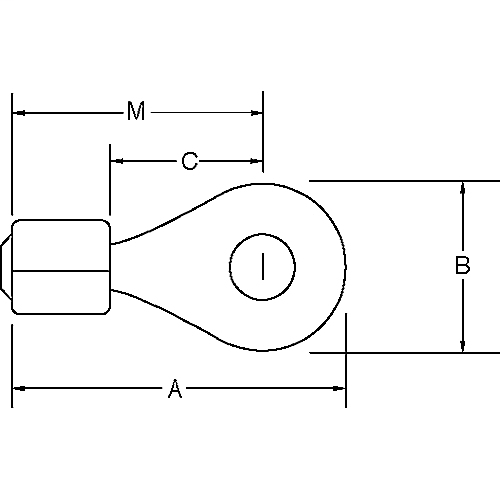

- A Inches :
- 0.66
- Alternate Package Qty:
- NW83
- Application Tools:
- WT1377
- B Inches :
- 0.31
- C Inches :
- 0.28
- Color:
- Metallic
- Finish:
- Plain
- Inner Package:
- 100
- Insulation Type:
- Non-Insulated - High Temperature
- M Inches :
- 0.51
- Material:
- Nickel Alloy
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 8.8
- Package Length:
- 14.7
- Package Type:
- Standard
- Package Width:
- 9.5
- Product Group:
- Connectors
- Recommended Tool:
- WT1377
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.4
- Stud Size:
- #10
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 2.5 lbs. per 1000
- Temperature Rating:
- 1200°F
- Terminal Series:
- NW
- Voltage Rating:
- 600V
- Wire Range:
- 16-14
- Department:
- Electrical
- Product Subgroup:
- Terminals
