Ring Terminal
Notes
- Not available on Mylar Tape.
Features
- Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Certifications
- CSA
- UL
Manufacturer Resources
Product Specs

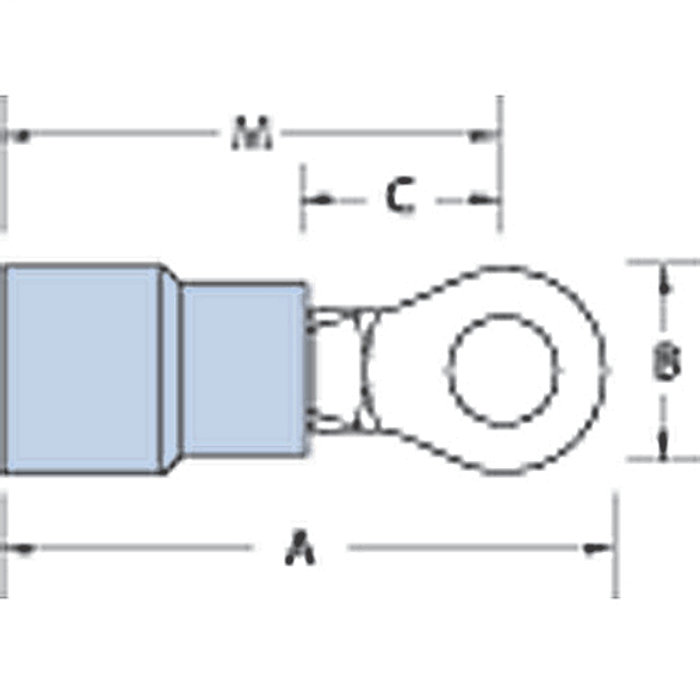

- A Inches :
- 1.54
- Alternate Package Qty:
- RD717
- Application Tools:
- ERG4007
- B Inches :
- 0.46
- C Inches :
- 0.36
- Color:
- Red
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 25
- Insulation Type:
- Insulated Nylon
- M Inches :
- 1.32
- Material:
- Copper
- Maximum Insulation Inches :
- 0.34
- Order Multiple:
- 25
- Outer Package:
- 250
- Package Height:
- 7.5
- Package Length:
- 11.5
- Package Type:
- Standard
- Package Width:
- 9.5
- Product Group:
- Connectors
- Recommended Tool:
- ERG4007
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.04
- Stud Size:
- 4-Jan
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 1.25 lbs. per 100
- Temperature Rating:
- 105°C
- Terminal Series:
- RD
- Voltage Rating:
- 600V
- Wire Range:
- 8
- Department:
- Electrical
- Product Subgroup:
- Terminals
