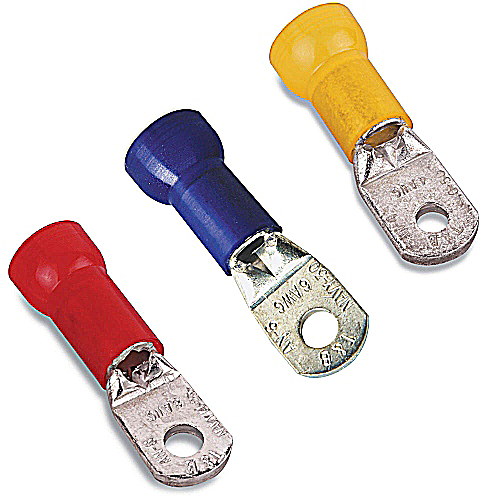

Ring Terminal
Certifications
- UL
- CSA
Features
- Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
- Not available on Mylar Tape.
Manufacturer Resources
Product Specs

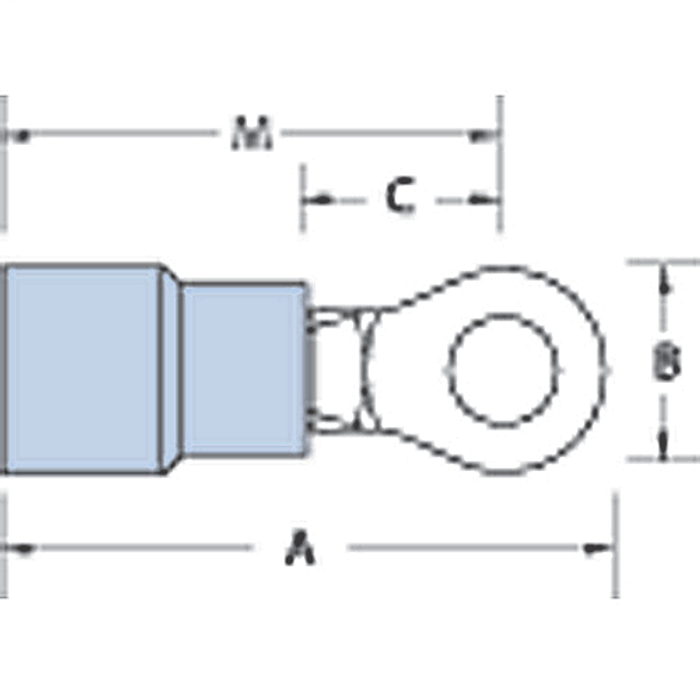

- A Inches :
- 1.63
- Alternate Package Qty:
- RD737
- Application Tools:
- ERG4007
- B Inches :
- 0.57
- C Inches :
- 0.36
- Color:
- Red
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 25
- Insulation Type:
- Insulated Nylon
- M Inches :
- 1.35
- Material:
- Copper
- Maximum Insulation Inches :
- 0.34
- Order Multiple:
- 25
- Outer Package:
- 250
- Package Height:
- 7.6
- Package Length:
- 12.1
- Package Type:
- Standard
- Package Width:
- 10.2
- Product Group:
- Connectors
- Recommended Tool:
- ERG4007
- Stock Thickness:
- 0.04
- Stud Size:
- 8-Mar
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 1.19 lbs. per 100
- Temperature Rating:
- 105°C
- Terminal Series:
- RD
- Voltage Rating:
- 600V
- Wire Range:
- 8
- Department:
- Electrical
- Product Subgroup:
- Terminals
