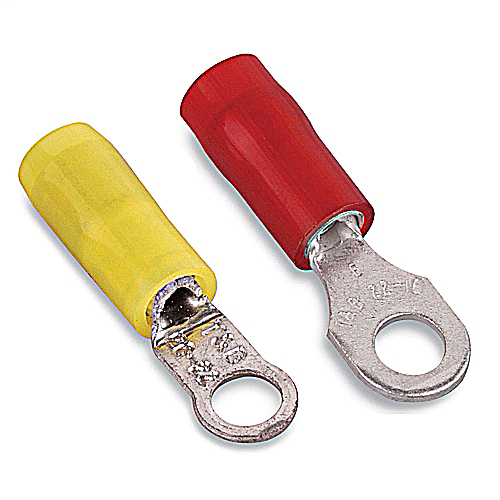

Ring Terminal
Features
- Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
Manufacturer Resources
Product Specs

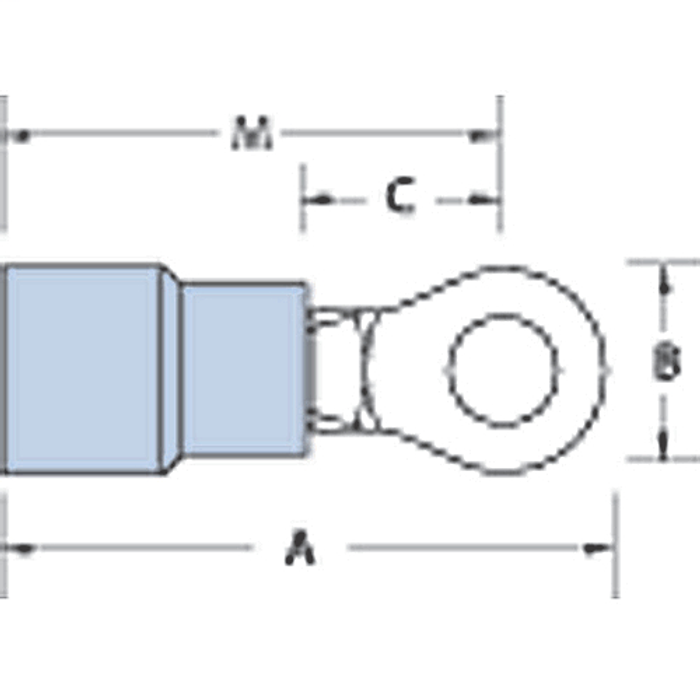

- A Inches :
- 0.75
- Application Tools:
- WT1452
- B Inches :
- 0.25
- C Inches :
- 0.23
- Color:
- Yellow
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 100
- Insulation Type:
- Insulated Nylon
- M Inches :
- 0.62
- Material:
- Copper
- Maximum Insulation Inches :
- 0.083
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 6.1
- Package Length:
- 8.7
- Package Type:
- Standard
- Package Width:
- 7.4
- Product Group:
- Connectors
- Recommended Tool:
- ERG4006
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.02
- Stud Size:
- #10
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 1.25 lbs. per 1000
- Temperature Rating:
- 105°C
- Terminal Series:
- RZ
- Voltage Rating:
- 600V
- Wire Range:
- 26-22
- Department:
- Electrical
- Product Subgroup:
- Terminals
