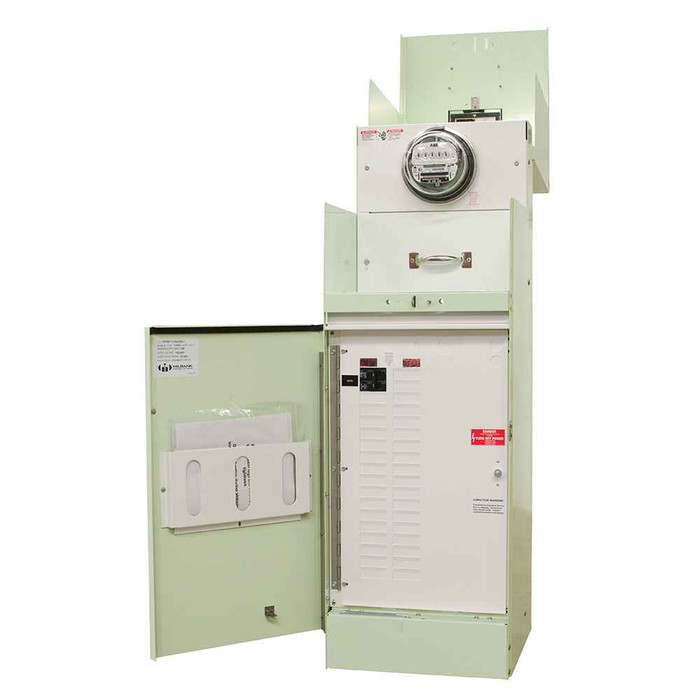

Milbank CP3B11110A22SL1 Ring Type 100 Amperes 240 Volt 4 Terminal Main Circuit-breaker 2-16 Circuit Loadcenter 22k Switch Load Mint Green
Model: MIL-CP3B11110A22SL1
Ring Type 100 Amperes 240 Volt 4 Terminal Main Circuit-breaker 2-16 Circuit Loadcenter 22k Switch Load Mint Green
Milbank
$5,898.61
$5,848.61
Ring Type 100 Amperes 240 Volt 4 Terminal Main Circuit-breaker 16 Circuit Loadcenter 42k Mint Green
Manufacturer Resources
Product Specs
- Amperage Rating:
- 100 Continuous Ampere
- Application:
- Power Distribution
- Brand Name:
- Milbank
- Bypass Provision:
- Link Bypass
- Cable Entry:
- Underground
- Equipment Ground:
- Ground Bar
- Frequency Rating:
- 60 Hertz
- Height:
- 48 IN
- Hub Closing Plate:
- No Hub Opening
- Insulation:
- No Insulation
- Length:
- 17 IN
- Line Side Wire Range:
- 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
- Load Center:
- 16 Circuit Load Center
- Main Breaker Size:
- One 100 Ampere Main Breaker
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Mounting:
- Pad Mount
- Number Of Jaws:
- 4 Terminal
- Number Of Main Breakers:
- 1
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 0
- Phase:
- 1 Phase
- Product Family Code:
- CPEU
- Size:
- 17L x 16W x48H
- Standard:
- UL Listed;Type 3R
- Terminal:
- Single Mechanical
- Type:
- Ring Type Metered Commercial Pedestal
- Unspsc Number:
- 39121102
- Voltage Rating:
- 120/240 Volts Alternating Current
- Width:
- 16 IN
- Product Group:
- Electrical
