Milbank CP3B12110A22SL1 Ring T...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$7,860.47
$7,810.47

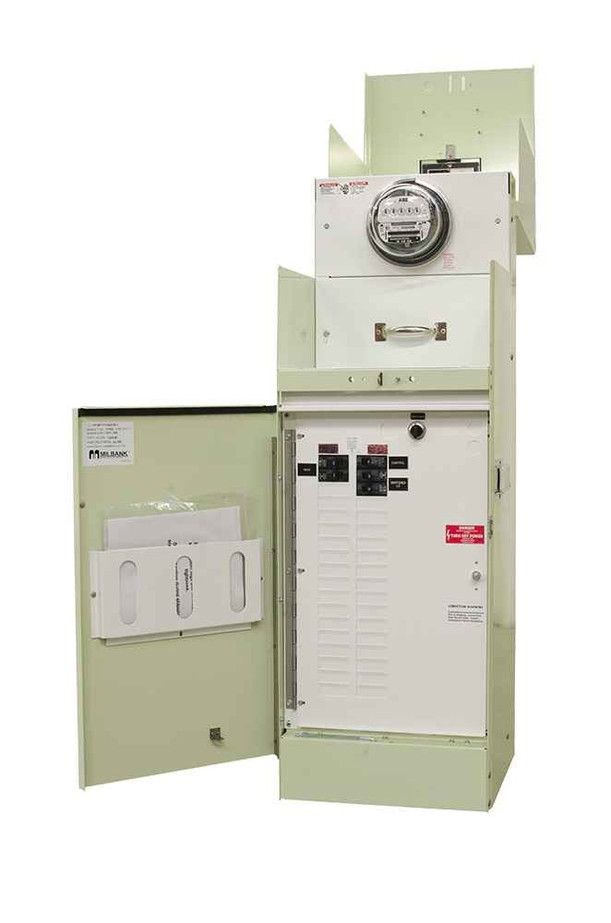

Milbank CP3B12110A22SL1 Ring Type 200 Amperes 240 Volt 4 Terminal Main Circuit-breaker 2-16 Circuit Loadcenter 22k Switch Load Mint Green

Milbank CP3B12110A22SL1 Ring Type 200 Amperes 240 Volt 4 Terminal Main Circuit-breaker 2-16 Circuit Loadcenter 22k Switch Load Mint Green

(No reviews yet) Write a Review

Model: CP3B12110A22SL1
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7,860.47
$7,810.47
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Ring Type 200 Amperes 240 Volt 4 Terminal Main Circuit-breaker 2-16 Circuit Loadcenter 22k Switch Load Mint Green

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Power Distribution
Brand Name:
Milbank
Bypass Provision:
Link Bypass
Cable Entry:
Underground
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Height:
48 IN
Hub Closing Plate:
No Hub Opening
Insulation:
No Insulation
Length:
17 IN
Line Side Wire Range:
6 AWG - 350 kcmil
Load Center:
16 Circuit Load Center
Main Breaker Size:
One 200 Ampere Main Breaker
Material:
G90 Galvanized Steel with Powder Coat Finish
Mounting:
Pad Mount
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
CPEU
Size:
17L x 16W x48H
Standard:
UL Listed;Type 3R
Terminal:
Single Mechanical
Type:
Ring Type Metered Commercial Pedestal
Unspsc Number:
39121102
Voltage Rating:
120/240 Volts Alternating Current
Width:
16 IN
!
