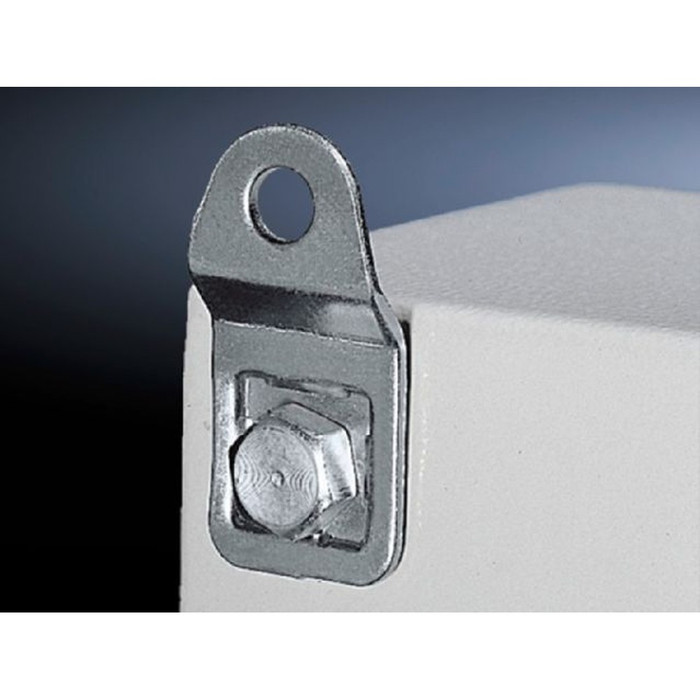

Rittal Wall Mounting Bracket, Brass, Nickel-Plated
The Rittal 1580000 wall mounting bracket provides a reliable, standoff-style mounting solution for wall-mounted electrical enclosures. Constructed from brass with a nickel-plated finish, this bracket sets the enclosure 8 mm off the wall and ships with the assembly components needed for mounting on the enclosure. Each package contains 4 pc(s), so a single unit can outfit multiple mounting points on one enclosure or across several smaller enclosures.
Key Features
- Wall Distance: Maintains an 8 mm standoff between the enclosure and the wall surface for consistent, accessible mounting.
- Durable Construction: Made from brass for long-term structural strength and reliable performance.
- Nickel-Plated Finish: The nickel-plated surface resists corrosion and holds a clean appearance over time.
- Complete Mounting Hardware: Supply includes the assembly components required to mount the bracket directly on the enclosure, with no separate hardware to source.
- Enclosure Compatibility Note: For hygiene reasons, and to retain the protection category, stainless steel enclosures do not have drilled holes for wall-mounting brackets, so this bracket is intended for enclosures pre-drilled to accept it.
- Packaging: Supplied 4 pc(s) per packaging unit at 0.144 kg per packaging unit, simplifying multi-point enclosure mounting jobs.
Technical Specifications
- Surface Finish: Nickel-plated
- Wall Distance: 8 mm
- Material: Brass, nickel-plated
- Packaging Unit: 4 pc(s)
- Weight/Packaging Unit: 0.144 kg
Typical Applications
- Wall-Mounted Electrical Enclosures
- Industrial Control Panel Installations
- Surface-Mounted Enclosure Systems
- Commercial and Industrial Electrical Installations
Why Rittal?
Rittal builds this wall mounting bracket from brass with a corrosion-resistant nickel-plated finish, giving installers a dependable standoff mounting solution for enclosure installations. With assembly components included and clear compatibility guidance for stainless steel enclosures, this bracket supports accurate, well-fitted enclosure mounting for professional electrical work.
Manufacturer Resources
Rittal Product Catalog
Product Specs
- Product Type:
- Wall Mounting Bracket
- Product Finish:
- Nickel-Plated
- Product Material:
- Brass
- Department:
- Electrical
- Product Group:
- Hangers, Supports & Fasteners
- Product Subgroup:
- Hangers, Straps & Supports
Rittal 1580000 – Frequently Asked Questions
1) How far off the wall does the Rittal 1580000 bracket hold an enclosure?
It sets the enclosure 8 mm off the wall surface. That standoff keeps the back of the enclosure clear of the wall for drainage and wipe-down, and gives you a consistent gap across all four mounting points.
2) Will the Rittal 1580000 bracket work on a stainless steel enclosure?
Not without prep. Stainless steel enclosures are supplied without drilled holes for wall-mounting brackets, for hygiene reasons and to keep the protection category intact. The 1580000 is meant for enclosures already pre-drilled to accept wall brackets.
3) Do I need to buy separate screws to mount the Rittal 1580000 bracket to the enclosure?
No. The supply includes the assembly components needed to mount the bracket on the enclosure. You still provide your own wall anchors or fasteners suited to the wall substrate, since those depend on whether you are into concrete, block, steel stud or drywall.
4) What is the Rittal 1580000 bracket made of, and will it corrode in a damp plant room?
Brass with a nickel-plated finish. The nickel plating is there for corrosion resistance and to hold appearance, and brass itself does not rust the way a plated steel bracket does once the coating is scratched. That combination suits washdown-adjacent and humid industrial locations better than painted steel feet.
5) What are Rittal 1580000 wall mounting brackets actually used for?
They are standoff feet for surface-mounting electrical enclosures: industrial control panels, wall-mounted enclosures and surface-mounted enclosure systems in commercial and industrial electrical work. The bracket bolts to the enclosure and the enclosure then hangs on the wall, held 8 mm clear of it.
6) What is the Rittal part number I should quote for these brass wall brackets?
Order by manufacturer part number 1580000, Rittal brand. It is a single model, so there are no finish or size options to specify, just the quantity of 4-piece packs you need.
