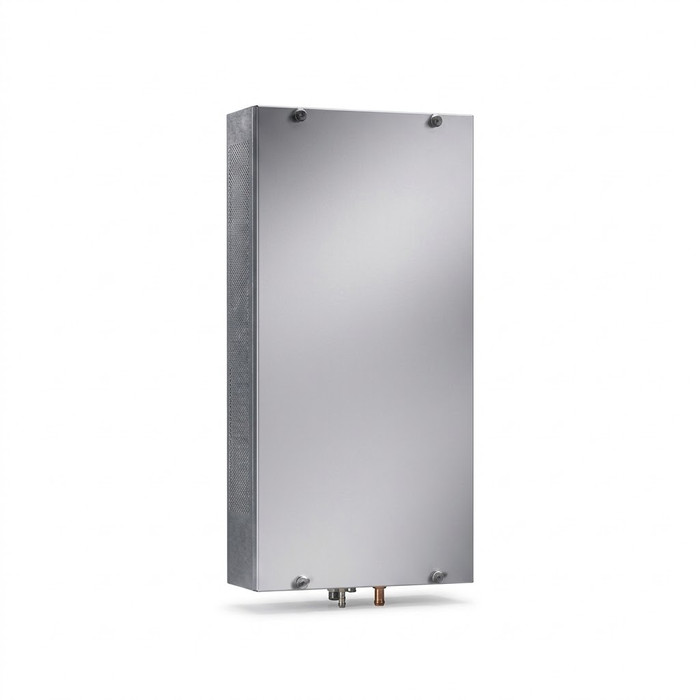

Rittal 3214100-2 Air/Water Heat Exchanger, Copper/Brass, 230V, IP55
The Rittal 3214100-2 Air/Water Heat Exchanger is engineered for enclosure cooling in demanding industrial environments, available in cooling capacities from 2049 BTU to 3412 BTU to match a range of thermal loads. Water-carrying components are built from copper/brass (Cu/CuZn) for corrosion resistance, while the housing carries an IP55 protection rating to EN 60529 and IEC 60529 along with a UL Type 1 NEMA rating. Rated for 230V, 1~, 50Hz/60Hz operation, this heat exchanger supports both external and full internal mounting, with flexible water connection options for convenient installation.
Key Features
- Cooling Capacity: Available in capacities from 2049 BTU to 3412 BTU to cover a range of enclosure cooling loads.
- Durable Construction: Water-carrying parts in copper/brass (Cu/CuZn) resist corrosion for long service life.
- Flexible Mounting: External mounting or full internal mounting possible, with flexible water connection options.
- Rated Operating Voltage: 230V, 1~, 50Hz/60Hz for standard single-phase power connections.
- Temperature Monitoring: Internal thermostat with change-over contact, 16A switching load, setting range +20°C to +60°C (factory setting +35°C).
- Temperature Control: Thermostat-controlled solenoid valve with a setting range of 20°C-55°C.
- Environmental Protection: IP55 protection to EN 60529 and IEC 60529, with a UL Type 1 NEMA rating for tough environments.
- Finish: RAL 7035 color finish.
Certifications & Compliance
- IP 55 Protection to EN 60529
- IP 55 Protection to IEC 60529
- UL Type 1 NEMA Protection Category
Technical Specifications
- Duty Cycle: 100%
- Water Inlet Temperature: 1°C-30°C
- Operating Temperature Range: 1°C-70°C
- Permissible Operating Pressure (p. max.): 110 bar
- Cooling Medium: Water
- Pre-fuse: Miniature circuit-breaker/fuse, 2A
- Version: Water-carrying parts copper/brass (Cu/CuZn)
- Packaging Unit: 1 pc(s)
- Weight/Packaging Unit: 7 kg
- Supply Includes: Sealing and assembly components, wired ready for connection, drilling template
Typical Applications
- Industrial Control Panel and Enclosure Cooling
- Server and IT Enclosure Thermal Management
- Tough and Harsh Industrial Environments
- Panelboard and Switchgear Enclosures
- Commercial and Industrial Electrical Installations
Why Rittal?
Rittal engineers the 3214100-2 Air/Water Heat Exchanger with corrosion-resistant copper/brass water-carrying components, precise thermostat-controlled temperature regulation, and an IP55 / UL Type 1 protection rating for reliable performance in demanding environments. Every unit ships wired ready for connection, with sealing and assembly components plus a drilling template included, giving electrical professionals a straightforward path to dependable enclosure cooling.
Manufacturer Resources
Rittal Product Catalog
Product Specs
- Product Type:
- Enclosure Climate Control
- Product Material:
- Copper/Brass
- Voltage Rating:
- 230V
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Standards:
- IP55
- Standards:
- UL Type 1
- Product Finish:
- RAL 7035
- Product Subgroup:
- Enclosure Accessories
Rittal 3364100 – Frequently Asked Questions
1) Which Rittal part number do I order for 2049 BTU versus 3412 BTU cooling?
Two capacities are offered on the Rittal air/water heat exchanger: MPN 3214100 at 2049 BTU and MPN 3364100 at 3412 BTU. Both are the 230V, 1~, 50/60Hz version with copper/brass (Cu/CuZn) water-carrying parts. Size to the enclosure's actual heat load, not to the cabinet size.
2) Can I mount this Rittal air/water heat exchanger inside the enclosure instead of on the outside?
Both. The unit supports external mounting or full internal mounting, with flexible water connection options so the supply and return can be routed to suit the panel layout. A drilling template ships with it along with sealing and assembly components, and the unit arrives wired ready for connection.
3) Will an IP55 / UL Type 1 heat exchanger keep my washdown enclosure sealed?
The housing is rated IP55 to EN 60529 and IEC 60529, with a UL Type 1 NEMA rating. IP55 covers dust and low-pressure water jets, but UL Type 1 is indoor, general purpose only. For hosedown or outdoor duty you need a Type 4/4X rated climate control unit instead, not this one.
4) What water temperature and pressure does the Rittal 3214100 heat exchanger need?
Water inlet temperature must be between 1 and 30 degrees C, and permissible operating pressure is given as 110 bar. Cooling medium is plain water. Ambient/operating temperature range is 1 to 70 degrees C and the unit runs at 100 percent duty cycle, so it can cool continuously rather than cycling.
5) Does this Rittal unit come with its own thermostat or do I need a separate controller?
Control is built in. An internal thermostat with a change-over contact and 16A switching load adjusts from +20 to +60 degrees C, factory set at +35. It drives a thermostat-controlled solenoid valve with a 20 to 55 degrees C setting range, so the water flow is modulated without any external controller.
6) What circuit protection does the 230V Rittal air/water heat exchanger require?
Pre-fuse the supply with a 2A miniature circuit-breaker or fuse. Supply is 230V single phase, 50Hz or 60Hz. On a 60Hz North American job that means a 230V single-phase feed, not 120V, so plan the panel circuit accordingly.
7) Why choose an air/water heat exchanger over a standard enclosure air conditioner?
An air/water exchanger has no compressor or refrigerant in the enclosure; it rejects heat into a chilled or process water loop, which is why it holds a 100 percent duty cycle and works in hot ambients up to 70 degrees C where an air-cooled A/C struggles. It only makes sense where you already have a water supply between 1 and 30 degrees C. No water loop on site, pick a refrigerant-based cooling unit instead.
8) Will the copper/brass version hold up in a plant with aggressive process water?
Water-carrying parts are copper/brass (Cu/CuZn), chosen for corrosion resistance in industrial water loops. That is the standard build, not the stainless option, so it suits treated or chilled water rather than chemically aggressive or saline media. Housing finish is RAL 7035, the usual light grey that matches Rittal enclosures.
