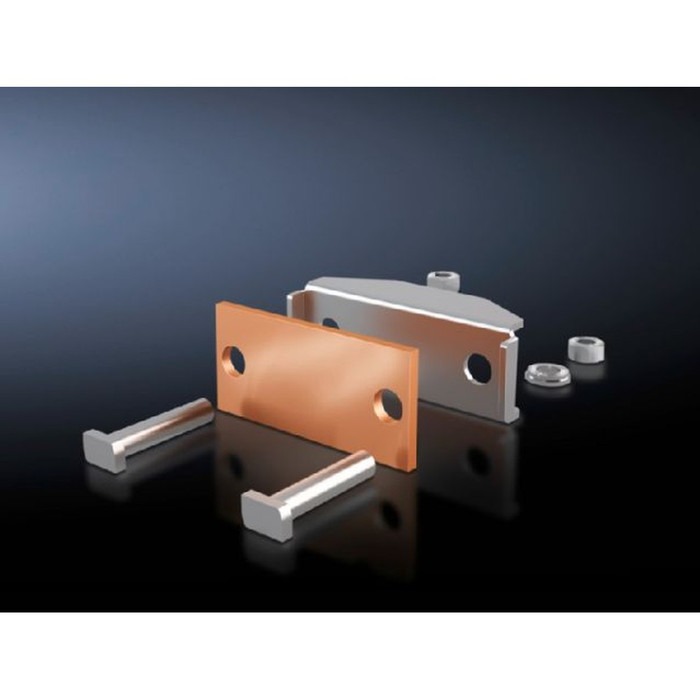

Rittal 9640340 Connection Plate for Laminated Copper Busbars

Rittal 9640340 Connection Plate for Laminated Copper Busbars

(No reviews yet) Write a Review

Model: 9640340

In Stock (leaves warehouse same day if ordered before 3pm ET)

$275.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal 9640340 Connection Plate for Laminated Copper Busbars

The Rittal 9640340 Connection Plate is engineered for the connection of laminated copper bars, featuring a clamping area of 63x20mm (W x H) sized for secure, low-resistance busbar connections. This connection plate is suitable for use with Maxi-PLS 45 S/45 busbar systems and is supplied complete with assembly components for straightforward installation in the field. Each piece contains 0.19 kg of copper, supporting dependable current-carrying performance in copper busbar installations, and ships in packaging units of 3 pc(s) for convenient stocking on multi-connection jobs.

Key Features

  • Clamping Area: 63x20mm (W x H) clamping area designed specifically for laminated copper bars.
  • Busbar Compatibility: Suitable for use with Maxi-PLS 45 S/45 busbar systems for secure, dependable connections.
  • Complete Supply: Ships with assembly components included for streamlined, tool-ready installation.
  • Copper Content: 0.19 kg of copper per piece for reliable electrical continuity and current transfer.
  • Application: Purpose-built for connecting laminated copper bars within busbar trunking and power distribution systems.
  • Packaging: Supplied in packaging units of 3 pc(s), with a weight of 1.467 kg per packaging unit.

Technical Specifications

  • Clamping Area for Laminated Copper Bars (W x H): 63x20mm
  • Packaging Unit: 3 pc(s)
  • Weight per Packaging Unit: 1.467 kg
  • Copper Weight per Piece: 0.19 kg
  • Suitable for Busbars: Maxi-PLS 45 S/45
  • Supply Includes: Assembly components

Typical Applications

  • Laminated Copper Busbar Connections
  • Panelboard and Switchgear Assemblies
  • Industrial Electrical Distribution Systems
  • Busbar Trunking System Installations
  • Renovation and New Construction Electrical Work

Why Rittal?

Rittal connection plates are engineered for precise, secure connections between laminated copper bars, supporting dependable current flow throughout busbar systems. Supplied complete with assembly components and sized with a 63x20mm clamping area, the 9640340 connection plate simplifies installation for Maxi-PLS 45 S/45 busbar configurations. With 0.19 kg of copper per piece and packaging units of 3 pc(s), this connection plate is well suited to both single-run repairs and larger multi-connection busbar projects. Choose Rittal for consistent build quality and dependable performance in demanding industrial and commercial electrical distribution applications.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Busbar Component
Series:
Maxi-PLS 45 S/45
Product Material:
Copper
Department:
Electrical
Product Group:
Power Distribution
Product Subgroup:
Power Distribution Blocks

Rittal 9640340 – Frequently Asked Questions

1) What size laminated copper bar does the Rittal 9640340 connection plate clamp?
The clamping area on the 9640340 connection plate is 63 x 20 mm (W x H), so it is sized for laminated copper bar of that cross section. If your laminated bar stack is wider or taller than 63 x 20 mm, this plate will not clamp it and you need a different connection plate size.
2) Will the Rittal 9640340 work with my Maxi-PLS busbar system?
It is specified for Maxi-PLS 45 S/45 busbar systems. That is the system designation to match on your panel drawing. If your run is a different Rittal busbar series, confirm the plate called out for that series instead rather than assuming this one carries over.
3) Do I need to order mounting hardware separately for the Rittal 9640340 connection plate?
No. The connection plate ships complete with assembly components, so the fasteners needed to make the connection come in the box. Plan your own tooling and torque values per the panel build spec.
4) How many pieces come in a pack of Rittal 9640340 connection plates?
They come in packaging units of 3 pieces, at 1.467 kg per packaging unit. For a panel with several laminated bar terminations that works out conveniently, but if you only need one plate for a single repair you are still buying the pack of three.
5) What is a busbar connection plate actually used for in a panel build?
It is the clamped transition piece that joins laminated copper bar into a busbar run, giving a low-resistance mechanical joint instead of relying on a drilled lap splice. On the Rittal 9640340 that joint is made across a 63 x 20 mm clamping area, and typical uses are panelboard and switchgear assemblies, industrial distribution, and busbar trunking runs in both retrofit and new construction.
6) Is the Rittal 9640340 one part number or are there several versions to choose from?
It is a single part, model 9640340. There is no finish, size, or handing choice to specify, so the only decision is whether the 63 x 20 mm clamping area and Maxi-PLS 45 S/45 compatibility match your run.
