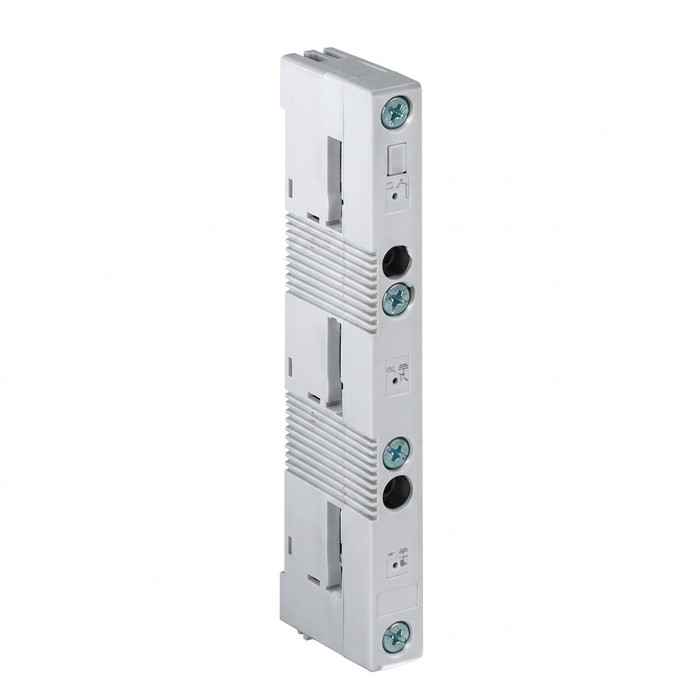

Rittal 9340050 3-Pole Polyamide Busbar Support
The Rittal 9340050 Busbar Support is a polyamide busbar support engineered for flat copper bars up to 800 A. Molded from polyamide with fire protection corresponding to UL94-V0, this 3-pole support carries a rated operating voltage of 1000 V (3~) and 1500 V (DC), making it well suited to panel-building and switchgear busbar mounting applications where UL short-circuit current ratings (SCCR) matter.
Key Features
- Busbar Compatibility: Suitable for flat copper busbars from 15 x 5 mm up to 30 x 10 mm, with 60 mm center-to-center spacing for consistent panel layouts.
- Durable Construction: Molded from polyamide with fire protection corresponding to UL94-V0 for reliable performance inside electrical enclosures.
- 3-Pole Design: Configured for 3-pole busbar systems and supplied with internal attachment for secure, repeatable mounting.
- Rated Operating Voltage: 1000 V (3~) and 1500 V (DC), rated for flat copper bars up to 800 A.
- UL Short-Circuit Current Ratings (SCCR): Tested from 14 kA to 73 kA at 480-600 V depending on support spacing and busbar dimensions, including combinations with fuse Class L (max. 800 A, JDDZ/7) and circuit breakers (max. 600 A, DIVQ/7).
- Color: RAL 7035 for consistent panel aesthetics.
- Packaging: Supplied 4 pieces per package, weighing 0.696 kg per packaging unit.
Certifications & Compliance
- Fire Protection Rated to UL94-V0
- UL Short-Circuit Current Rating (SCCR) Tested to 73 kA
Technical Specifications
- With internal attachment: 1
- Number of Poles: 3-pole
- Rated Operating Voltage: 1000 V, 3~, 1500 V (DC)
- Suitable for Busbars: 15 x 5 - 30 x 10 mm
- Center-to-Center Spacing: 60 mm
- Packaging Unit: 4 pc(s)
- Weight/Packaging Unit: 0.696 kg
Typical Applications
- Panelboard and Switchgear Busbar Mounting
- Industrial Control Panel Wiring
- Commercial and Industrial Electrical Enclosures
- Flat Copper Bar Support Systems up to 800 A
- Panel-Building and Custom Switchgear Assembly
Why Rittal?
Rittal busbar supports combine fire-protected polyamide construction with UL-tested short-circuit current ratings up to 73 kA, delivering dependable, code-compliant performance for professional panel-building and switchgear applications where flat copper busbars up to 800 A must be securely and safely supported.
Manufacturer Resources
Rittal Product Catalog
Product Specs
- Product Type:
- Busbar Component
- Voltage Rating:
- 1000V
- Amperage Rating:
- 800A
- Configuration:
- 3-Pole
- Standards:
- UL94-V0
- Product Material:
- Polyamide
- Product Color:
- RAL 7035
- Department:
- Electrical
- Product Group:
- Power Distribution
- Product Subgroup:
- Power Distribution Blocks
Rittal 9340050 – Frequently Asked Questions
1) What size flat copper busbar does the Rittal 9340050 busbar support accept?
The Rittal 9340050 takes flat copper bars from 15 x 5 mm up to 30 x 10 mm. Anything outside that cross-section range will not seat correctly, so measure the bar stock before ordering. Pole spacing is fixed at 60 mm center-to-center, which also has to match your existing panel layout.
2) What SCCR can I claim on a control panel using Rittal 9340050 busbar supports?
UL short-circuit current ratings for the 9340050 run from 14 kA to 73 kA at 480-600 V, and the number you can use depends on the spacing between supports and the busbar dimensions you install. The tested combinations include Class L fuses up to 800 A (JDDZ/7) and circuit breakers up to 600 A (DIVQ/7), so the upstream protective device is part of the rating too.
3) I need a 4-pole busbar arrangement with a neutral bar. Is the 9340050 the right part?
No. The 9340050 is a 3-pole support only, fixed at 60 mm pole spacing. For a four-bar arrangement with a neutral you need a 4-pole support from the same Rittal busbar support range rather than doubling up on this one.
4) Is the Rittal 9340050 busbar support flame retardant for use inside an enclosure?
The support is molded polyamide with fire protection corresponding to UL94-V0, which is why it is used inside switchgear and industrial control enclosures where the insulating parts have to be flame rated.
5) How many Rittal 9340050 busbar supports come in a package?
The 9340050 ships 4 pieces per packaging unit, at 0.696 kg per unit. Plan quantity around your support spacing, since the SCCR you achieve depends on how close together the supports are set along the bar run.
6) Does the Rittal 9340050 come with mounting hardware or do I need a separate bracket?
It is supplied with internal attachment, so the support itself provides the fixing point for securing it in the panel. The bars are clamped by the support; you still supply the copper bar stock and any end-connection hardware.
7) Will the Rittal 9340050 match the gray finish of my existing panel components?
The support is RAL 7035 light gray, the standard enclosure gray Rittal uses across its panel line, so it blends with existing Rittal interior components.
