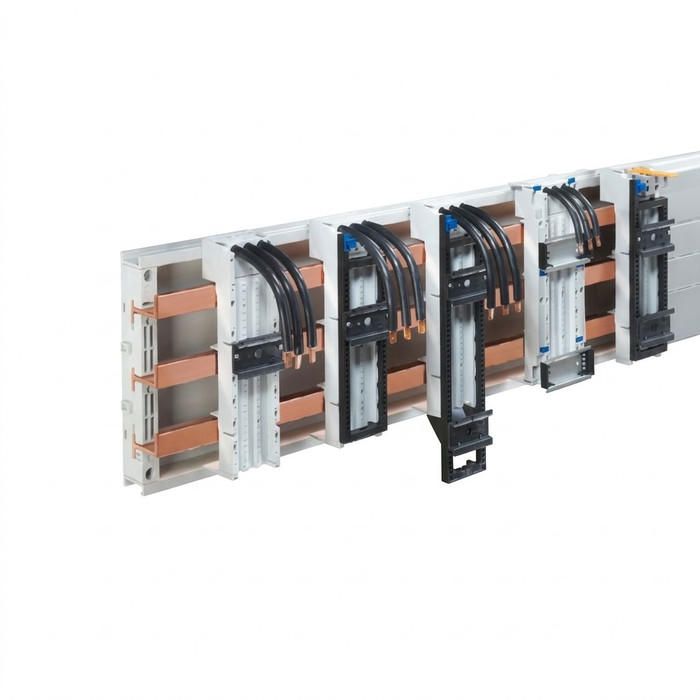

Rittal 9340700 OM Busbar Adapter, 3-Pole, 65A Max Current
The Rittal 9340700 OM Busbar Adapter is a 3-pole connection component engineered to mount and connect electrical devices, including fuse switch disconnectors, manual motor controllers, and combination motor controllers, directly to busbar systems inside industrial control panels. Constructed from Polyamide with fire protection rated to UL94-V0, the adapter carries a rated operating voltage of 690 V, 3~ and a maximum rated current of 65 A. It is compatible with busbars measuring 5 mm or 10 mm in height on 60 mm center-to-center spacing, making it a dependable choice for professional panel-building applications.
Key Features
- 3-Pole Configuration: Engineered for 3-pole busbar connections in industrial control and switchgear panels.
- Durable Construction: Polyamide housing with fire protection rated to UL94-V0 for added safety in electrical enclosures.
- Rated Operating Voltage: 690 V, 3~ supports demanding industrial power distribution systems.
- Rated Current: Max. 65 A accommodates high-current device connections.
- UL SCCR Ratings: Short-circuit current ratings up to 65 kA at 480 V and 600 V for fuse class J and K5, manual motor controller, and combination motor controller applications.
- Busbar Compatibility: Suitable for busbars with 5 mm or 10 mm height on 60 mm center-to-center spacing, with 1 support rail at 7.5 mm height.
- Connection Cable: 130 mm length with AWG 6 conductor for secure device wiring.
- Finish: Chassis finished in RAL 7035 to match standard enclosure systems.
Certifications & Compliance
- UL94-V0 Fire Protection Rated Material
- UL Electrical Ratings (SCCR) up to 65 kA at 480 V/600 V
Technical Specifications
- Refer to manufacturer documentation for complete technical specifications.
- Weight: 0.42 kg per packaging unit.
- Packaging: 1 pc(s) per unit.
- Support Rail Type: Metal, quantity/height 1/7.5 mm.
- Copper Weight: 0.116 kg per piece.
Typical Applications
- Industrial Control Panel Busbar Systems
- Motor Control Center Wiring
- Fuse Switch Disconnector Mounting
- Combination Motor Controller Installations
- Panelboard and Switchgear Enclosure Systems
Why Rittal?
Rittal engineers the 9340700 OM Busbar Adapter from fire-protection-rated Polyamide and backs it with UL electrical ratings (SCCR) up to 65 kA, giving panel builders a component built for reliable, code-compliant performance in demanding industrial environments. With a 690 V, 3~ operating voltage and 65 A max current rating, this adapter supports secure busbar connections for motor control and fuse switch applications where consistent quality matters.
Manufacturer Resources
Rittal Product Catalog
Product Specs
- Product Type:
- Busbar Adapter
- Voltage Rating:
- 690V
- Amperage Rating:
- 65A
- Configuration:
- 3-Pole
- Standards:
- UL94-V0
- Product Material:
- Polyamide
- Product Color:
- RAL 7035
- Department:
- Electrical
- Product Group:
- Wiring Devices
