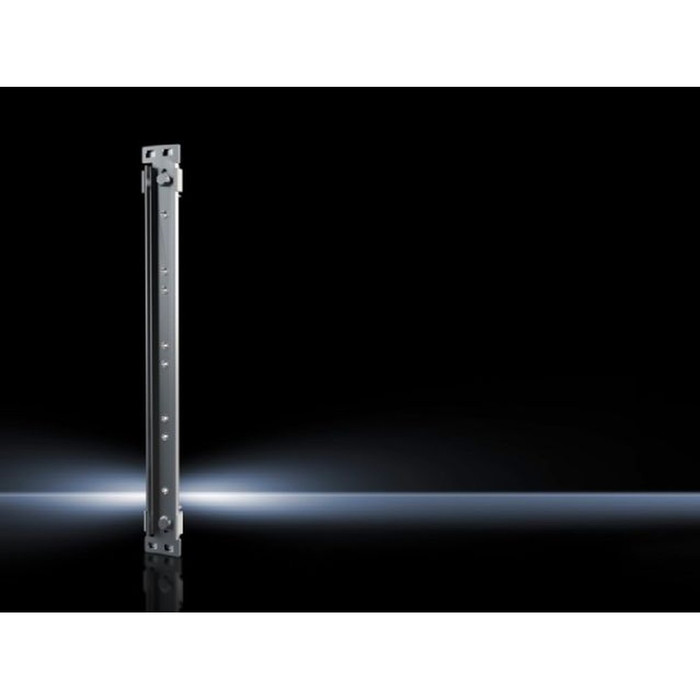

Rittal 9640150 System Attachment for TS 8 Busbar Supports, Stainless Steel
The Rittal 9640150 System Attachment is a stainless steel mounting accessory engineered to install busbar supports inside TS 8 enclosures. Configured for a 3-pole application with a 185 mm bar center distance, this attachment mounts in the rear section, center position, for a secure and precisely aligned busbar assembly. It is suitable for use with Rittal Maxi-PLS 1600 and Maxi-PLS 2000 busbars, making it a dependable choice for panel-building and enclosure system projects. Each packaging unit ships with 2 pieces for straightforward project planning.
Key Features
- Bar Center Distance: 3-pole configuration with a 185 mm bar center distance for precise busbar alignment.
- Durable Construction: Stainless steel material delivers long-term corrosion resistance and structural strength.
- Mounting Configuration: Designed for mounting in the rear section, center (185 mm), of the enclosure.
- Enclosure Compatibility: Suitable for Rittal TS 8 enclosure systems.
- Busbar Compatibility: Suitable for use with Maxi-PLS 1600 and Maxi-PLS 2000 busbars.
- Packaging: Supplied 2 pc(s) per packaging unit, weighing 2.254 kg per packaging unit.
Technical Specifications
- Refer to manufacturer documentation for complete technical specifications.
Typical Applications
- TS 8 Enclosure Busbar Support Installation
- Industrial Control Panel Building
- Commercial and Industrial Electrical Enclosures
- Panelboard and Switchgear Assembly
Why Rittal?
Rittal engineers system attachments like the 9640150 with stainless steel construction for dependable, corrosion-resistant performance in demanding industrial environments. Purpose-built for TS 8 enclosure busbar support installation, it helps panel builders achieve secure, accurately aligned busbar mounting for reliable long-term electrical system performance.
Manufacturer Resources
Rittal Product Catalog
Product Specs
- Product Type:
- System Attachment
- Configuration:
- 3-Pole, 185 mm Center
- Product Material:
- Stainless Steel
- Department:
- Electrical
- Product Group:
- Hangers, Supports & Fasteners
- Product Subgroup:
- Hangers, Straps & Supports
Rittal 9640150 – Frequently Asked Questions
1) Will the Rittal 9640150 system attachment work in a TS 8 enclosure?
Yes. The 9640150 is a system attachment made specifically to mount busbar supports inside Rittal TS 8 enclosure frames. It installs in the rear section, center position, at a 185 mm bar center distance. If your enclosure is not a TS 8 frame, this is not the right attachment.
2) Which busbars does the Rittal 9640150 attachment support?
It is intended for Rittal Maxi-PLS 1600 and Maxi-PLS 2000 busbars, in a 3-pole arrangement at 185 mm bar centers. If your panel runs a different pole count or center spacing, you need a different attachment configuration.
3) Can I use the Rittal 9640150 for a 4-pole busbar layout?
No. The 9640150 is configured for 3-pole use at a 185 mm bar center distance. A 4-pole layout needs a different Rittal system attachment configured for that pole count.
4) How many pieces come in a pack of Rittal 9640150?
Each packaging unit of the 9640150 ships 2 pieces, so a single order quantity covers a pair of mounting points. Plan quantities in pairs when laying out a busbar run.
5) Is the Rittal 9640150 suitable for a corrosive or washdown industrial panel environment?
The attachment is stainless steel, which gives it corrosion resistance and structural strength for demanding industrial installations. That makes it a reasonable choice where plated steel parts would corrode inside the enclosure.
6) What does a system attachment actually do in a busbar installation?
It is the bracket that ties the busbar support to the enclosure frame, not the busbar support itself and not the busbar. The 9640150 fixes supports in the rear section of a TS 8 frame at the center 185 mm position so the bars sit in correct alignment. You still order the busbar supports and the Maxi-PLS bars separately.
7) What is the exact part number to order this Rittal TS 8 busbar system attachment?
Order Rittal part number 9640150. There is one configuration, 3-pole at 185 mm center, in stainless steel, so there are no finish or size options to specify.
