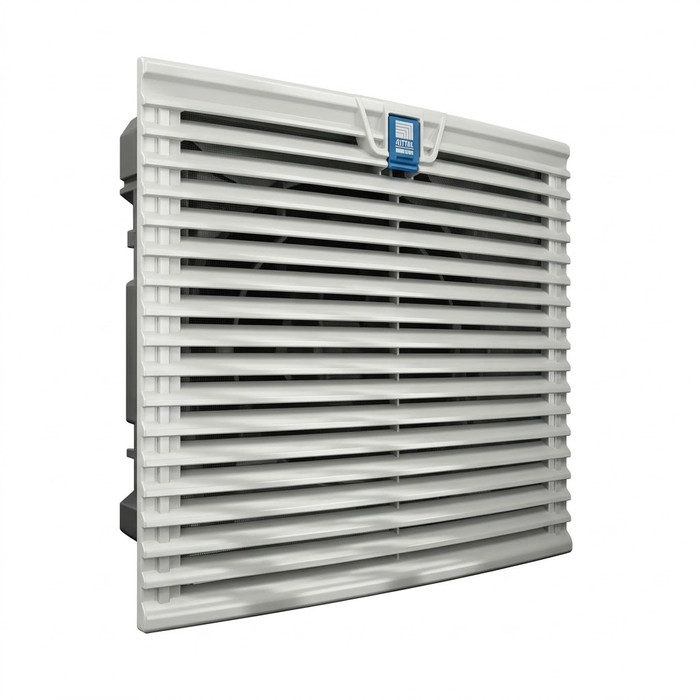

Rittal 32391 TopTherm Filter Fan Unit, IP54

Rittal 32391 TopTherm Filter Fan Unit, IP54

(No reviews yet) Write a Review

Model: 3239110

In Stock (leaves warehouse same day if ordered before 3pm ET)

$303.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal 32391 TopTherm Filter Fan Unit, IP54

The Rittal TopTherm Filter Fan Unit is a complete, tool-free mounting fan assembly engineered for enclosure and cabinet cooling applications. Delivering air throughput from 20 to 900 m³/h, this unit provides IP54 protection as standard to EN 60529 and IEC 60529, with a compact installation depth of just 90 mm for space-saving panel mounting. The TopTherm series is available in 24V DC and 115V AC supply voltage options to match a range of control panel power configurations, and each unit ships complete and ready to install with a fleece filter mat.

Key Features

  • Air Throughput: 20 - 900 m³/h airflow range supports a wide span of enclosure cooling loads.
  • Protection Rating: IP54 standard to EN 60529 / IEC 60529 with fleece filter or folded filter; upgradeable to IP55 with folded filter and absorber mat, or IP56 with fleece/folded filter and hose-proof hood.
  • Installation Depth: Compact 90 mm installation depth for tool-free surface mounting.
  • Supply Voltage: Available in 24V DC and 115V AC (single-phase, 50 Hz/60 Hz) configurations to suit standard control panel power supplies.
  • Fan Type: Axial fan with shaded pole motor for reliable continuous-duty air movement.
  • Pre-Fuse Protection: Miniature circuit-breaker/fuse rated 2A for circuit protection.
  • Finish: RAL 7035 housing color for standard enclosure color matching.
  • Complete Kit: Ships ready to install with fleece filter mat included; optional folded filter available to increase air throughput.

Certifications & Compliance

  • IP54 to EN 60529 / IEC 60529 with fleece filter or folded filter
  • IP55 to EN 60529 / IEC 60529 with folded filter and absorber mat
  • IP56 to EN 60529 / IEC 60529 with fleece/folded filter and hose-proof hood
  • NEMA Type 12 with fleece filter/folded filter
  • NEMA Type 3, 3R, 4, 4X with fleece/folded filter and hose-proof hood

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Enclosure and Control Panel Cooling
  • Industrial and Commercial Cabinet Ventilation
  • Panelboard and Switchgear Enclosure Airflow Management
  • Retrofit Cooling for Existing Enclosures
  • Indoor and Protected Outdoor Installations (NEMA 3R/4X configurations)

Why Rittal?

Rittal TopTherm filter fan units combine axial fan performance with a shaded pole motor and a robust RAL 7035 housing built for demanding enclosure environments. Available in 24V DC and 115V AC supply configurations with an operating temperature range of -15°C to 55°C and storage range of -30°C to 70°C, plus IP and NEMA-rated protection options, this unit delivers dependable, code-aware thermal management for professional electrical and industrial installations.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Standards:
EN 60529
Product Type:
Enclosure Climate Control
Department:
Electrical
Product Group:
Boxes & Enclosures
Series:
TopTherm
Voltage Rating:
24V DC - 115V AC
Amperage Rating:
2A
Product Finish:
RAL 7035
Product Subgroup:
Enclosure Accessories

Rittal 3239110 – Frequently Asked Questions

1) Which Rittal 32391 filter fan should I order for a 24V DC control panel versus a 115V AC panel?
Two supply voltages are built on the Rittal 32391 TopTherm filter fan unit, and you pick by what your panel feeds: part number 3239124 is the 24V DC version, and 3239110 is the 115V AC version (single phase, 50/60 Hz). There is no universal unit, so match the part number to the control voltage already in the cabinet.
2) Is an IP54 filter fan good enough for a washdown or outdoor enclosure?
Not as shipped. The 32391 TopTherm unit comes IP54 to EN 60529 / IEC 60529 with the fleece filter mat, which is dust and splash protection equivalent to NEMA Type 12 for indoor panels. To go further you add accessories: folded filter plus absorber mat raises it to IP55, and a hose-proof hood with fleece or folded filter gets you IP56 and NEMA Type 3, 3R, 4 and 4X. If the location is washed down or exposed, you must order the hood, not just the fan.
3) What ships in the box with the Rittal 32391 filter fan, and what do I have to buy separately?
Each unit ships complete and ready to install with a fleece filter mat, so nothing extra is needed for a standard IP54 indoor install. Buy separately if you need more airflow (the optional folded filter increases air throughput), higher protection (absorber mat for IP55, hose-proof hood for IP56 / NEMA 4X), and the 2A pre-fuse or miniature circuit breaker on the supply circuit.
4) What size circuit protection does a TopTherm filter fan unit need?
Protect the supply with a 2A miniature circuit breaker or fuse ahead of the unit. That pre-fuse rating applies to both the 24V DC and the 115V AC versions, and it is a small enough draw to land on a spare pole in most control panels.
5) Will a filter fan alone cool my enclosure, or do I need an air conditioner?
A filter fan moves ambient air through the cabinet, so it only works when the surrounding air is cooler than the target temperature inside. The TopTherm unit covers 20 to 900 m3/h of throughput with an axial fan and shaded pole motor, which handles typical control panel heat loads in normal plant and indoor conditions. Where ambient air is hot, dirty beyond what a filter mat can handle, or the panel must stay sealed, a closed-loop cooling unit is the right choice instead of a filter fan.
6) What temperature range can a Rittal TopTherm filter fan unit operate in?
Operating range is -15 C to 55 C, with storage from -30 C to 70 C. That covers unheated industrial spaces and protected outdoor cabinets, but note that in freezing conditions the fan is pulling outside air straight into the enclosure, so it is ventilation and not heating.
7) Will the fan housing match my existing gray Rittal enclosures?
The housing is finished RAL 7035, the standard light gray used on most industrial enclosures, so it blends with existing cabinet runs rather than standing out on a visible panel face.
