Rittal 4165000 Captive Nut for TS/VX SE Enclosure Systems

Rittal 4165000 Captive Nut for TS/VX SE Enclosure Systems

(No reviews yet) Write a Review

Model: 4165000

In Stock (leaves warehouse same day if ordered before 3pm ET)

$153.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

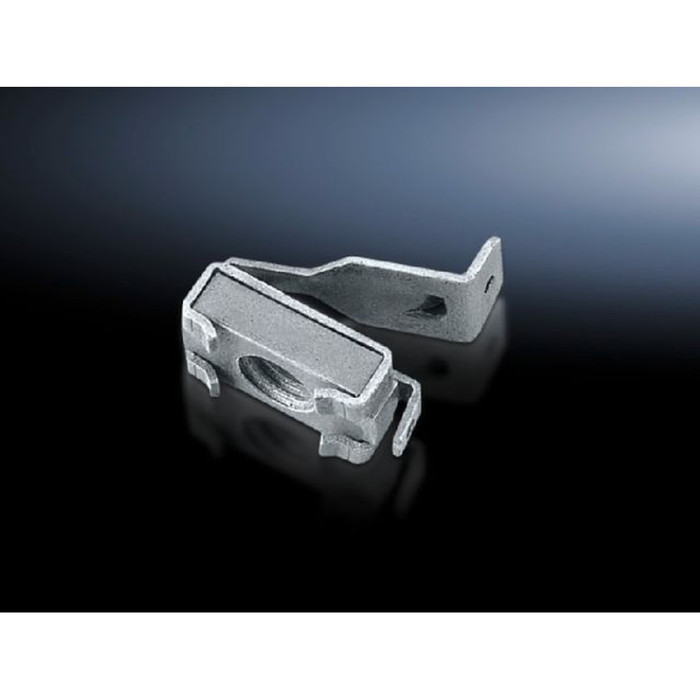

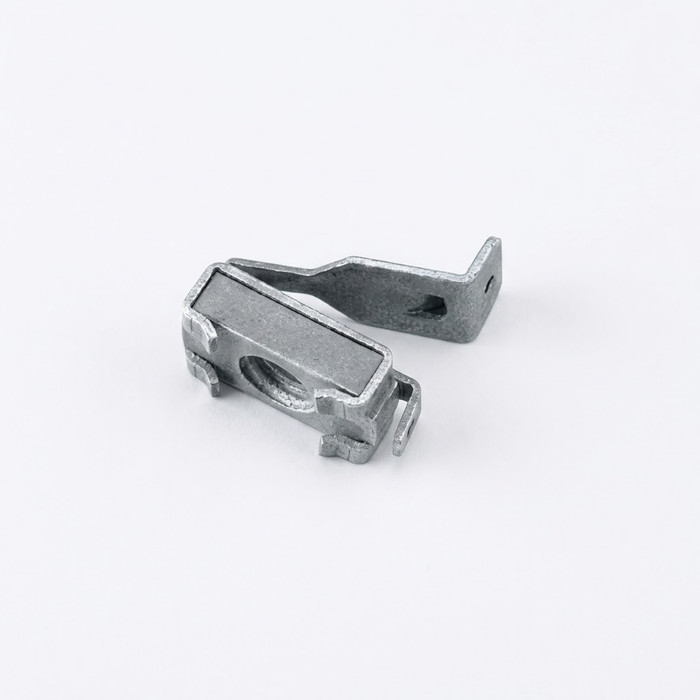

Rittal 4165000 Captive Nut for TS/VX SE Enclosure Systems

The Rittal 4165000 Captive Nut is engineered for enclosures and rails featuring a rectangular 12.5 x 10.5 mm system punching, providing a secure hardware connection point for panel building and enclosure assembly. Built with an integrated compression spring as an insertion aid, this captive nut helps ensure a reliable mechanical and electrical connection in the system punchings every time it is installed. It is compatible across the Rittal TS and VX SE enclosure platforms, including punched rails, mounting chassis, and system chassis configurations, making it a versatile hardware component for professional electrical enclosure work. Each unit ships in a packaging quantity of 50 pieces for efficient stocking on panel-building and enclosure assembly projects.

Key Features

  • System Punching Compatibility: Designed for enclosures and rails with a rectangular 12.5 x 10.5 mm system punching for precise, repeatable hardware placement.
  • Compression Spring Insertion Aid: An integrated compression spring holds the nut in place during installation, helping ensure a reliable mechanical and electrical connection in the system punchings.
  • Vertical and Horizontal TS/VX SE Mounting: Installs on the vertical TS and VX SE enclosure section, via adapter rail for VX compatibility, as well as the horizontal TS enclosure section.
  • VX SE Depth Mounting: Fits the horizontal VX SE enclosure section at both the top and bottom, in depth, for flexible panel layouts.
  • Rail and Chassis Versatility: Also mounts on 23 x 23 mm punched rails, 23 x 73 mm mounting chassis, 45 x 88 mm mounting chassis, and 23 x 73 mm system chassis.
  • Broad Hole-Profile Compatibility: Fits enclosures and rails with a rectangular hole profile of 12.5 x 10.5 mm across the compatible Rittal product range.
  • Convenient Pack Size: Supplied in a packaging unit of 50 pc(s), weighing 0.45 kg per packaging unit, for streamlined inventory management on larger installations.

Technical Specifications

  • Packaging Unit: 50 pc(s)
  • Weight/Packaging Unit: 0.45 kg

Typical Applications

  • Electrical Enclosure and Panel Assembly
  • TS and VX SE Enclosure Rail Systems
  • Mounting Chassis and System Chassis Installations
  • Punched Rail Hardware Mounting
  • Commercial and Industrial Panel Building
  • Renovation and Expansion of Existing Enclosure Systems

Why Rittal?

Rittal engineers hardware components like the 4165000 Captive Nut to deliver dependable mechanical and electrical connections across its TS and VX SE enclosure system platforms. The compression spring insertion aid simplifies installation while helping maintain a secure fit in the system punchings, supporting consistent, code-compliant results for professional panel builders and electrical contractors working with Rittal enclosure systems.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Enclosure Rail & Mounting Hardware
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Enclosure Accessories

Rittal 4165000 – Frequently Asked Questions

1) Will the Rittal 4165000 captive nut fit my enclosure's system punching?
The 4165000 captive nut is made for enclosures and rails with a rectangular 12.5 x 10.5 mm system punching. If your punched section has that rectangular hole profile, the nut drops in. Round holes or any other rectangular size will not hold it.
2) Which Rittal rails and chassis does this captive nut mount on?
Besides the TS and VX SE enclosure sections, the 4165000 mounts on 23 x 23 mm punched rails, 23 x 73 mm mounting chassis, 45 x 88 mm mounting chassis, and 23 x 73 mm system chassis. That covers most of the punched rail and chassis hardware used in Rittal panel builds.
3) Do I need an adapter to use this captive nut on a VX enclosure?
On the vertical section, VX mounting is done via an adapter rail. TS vertical and horizontal sections take the nut directly, and the horizontal VX SE section accepts it at top and bottom in depth without that step.
4) How does the spring on the Rittal 4165000 help during installation?
The nut carries an integrated compression spring that acts as an insertion aid. It holds the nut in position inside the punching while you start the screw, which is what keeps the mechanical and electrical connection consistent instead of having the nut drop behind the rail while you work one-handed.
5) How many captive nuts come in a pack of Rittal 4165000?
They ship 50 pieces per packaging unit, at 0.45 kg per unit. If you are buying for a panel shop, order by the pack rather than the piece; the quantity is set at 50 and is not broken.
6) Can I use captive nuts to retrofit hardware into an existing Rittal enclosure?
Yes, that is a normal use. Because the nut inserts into the existing 12.5 x 10.5 mm system punchings, you can add mounting points for renovation or expansion work on an installed TS or VX SE enclosure without drilling or tapping new holes.
7) What is the correct part number to order for the Rittal spring-loaded captive nut?
The Rittal part number is 4165000. One model, no finish or size options to specify, supplied 50 per pack.
How fast can I get the Rittal 4165000 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
