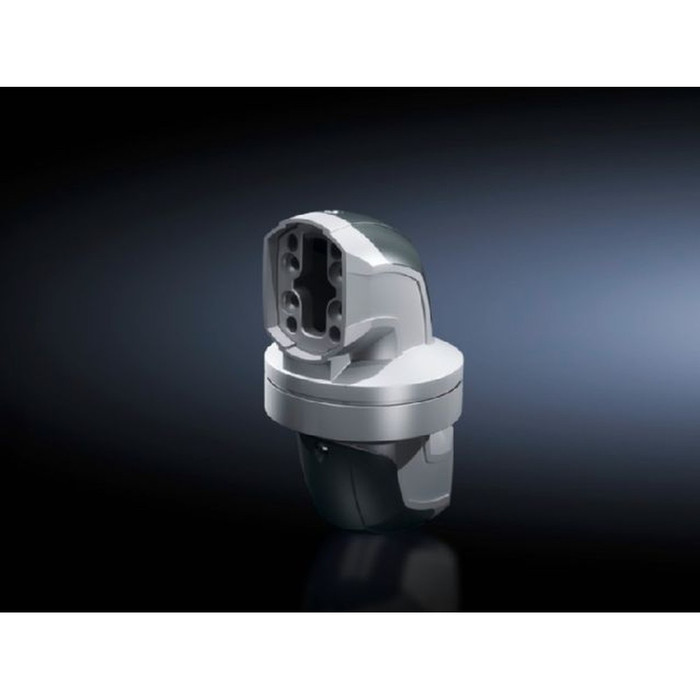

Rittal 6206620 Intermediate Hinge, CP 60 Support Arm System

Rittal 6206620 Intermediate Hinge, CP 60 Support Arm System

(No reviews yet) Write a Review

Model: 6206620

In Stock (leaves warehouse same day if ordered before 3pm ET)

$716.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal 6206620 Intermediate Hinge, CP 60 Support Arm System

The Rittal 6206620 Intermediate Hinge is engineered for the pivoted connection of horizontal support profiles within the Rittal CP 60 support arm system, a modular platform used to mount and position monitors, keyboards, and equipment. This hinge provides an approximate 330° rotation angle/swivel area, letting installers set and restrict the range of motion to suit the application. Removable covers simplify cable routing during installation, adjustment, and ongoing maintenance. Supplied as 1 pc(s) per packaging unit at a weight of 2.2 kg, this component is a precision part of Rittal's modular CP 60 support arm platform, built for repeatable, code-compliant assembly in professional installations.

Key Features

  • Pivoted Connection: Enables pivoted connection of horizontal support profiles within the Rittal CP 60 support arm system for flexible positioning.
  • Approx. 330° Rotation Range: Rotation angle/swivel area of approximately 330°, which can be limited by inserting the included restriction screws to match the installation.
  • Removable Covers: Removable covers allow for easy cable routing and quick access during setup, adjustment, or servicing without disassembling the hinge.
  • Complete Hardware Kit Included: Ships with screws for restricting rotation range, seals, adjusting screws, and self-tapping screws for support section attachment, so no separate hardware purchase is needed.
  • Compact, Single-Unit Packaging: Packaged as 1 pc(s) per unit, weighing 2.2 kg per packaging unit, for straightforward handling and stocking.
  • Adjustable Fit: Adjusting screws included in the supply allow fine-tuning of the hinge connection for a secure, stable assembly.

Technical Specifications

  • Rotating/tilting: 1
  • Packaging unit: 1 pc(s).
  • Weight/packaging unit: 2.2 kg
  • Rotation angle/swivel area: Approximately 330°; the range of rotation can be limited by inserting the screws provided.
  • Supply includes: Screws for restricting rotation range, seals, adjusting screws, and self-tapping screws for support section attachment.

Typical Applications

  • Support Arm Systems for Monitors and Equipment
  • Horizontal Support Profile Connections
  • Cable Management and Routing Within Support Arms
  • Modular Enclosure and Workstation Support Assemblies
  • Industrial and Commercial Support Arm Installations
  • Retrofit and Expansion of Existing CP 60 Support Arm Runs

Why Rittal?

Rittal engineers the CP 60 support arm system for precise, repeatable movement and long-term mechanical reliability. The 6206620 Intermediate Hinge's approximately 330° rotation range, dedicated restriction hardware, and removable cable-routing covers reflect the kind of detail-oriented design that professionals rely on for clean, serviceable support arm installations. With a complete supply of seals, adjusting screws, and mounting hardware included, the hinge is ready to integrate into new or existing Rittal support arm assemblies without hunting down extra parts.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Hinge
Series:
CP 60
Configuration:
Approx. 330° Rotation Range
Department:
Electrical
Product Group:
Wiring Devices

Rittal 6206620 – Frequently Asked Questions

1) What does the Rittal 6206620 intermediate hinge actually do in a support arm run?
It makes the pivoted connection between horizontal support profiles in the Rittal CP 60 support arm system, the platform used to carry monitors, keyboards and control equipment. Put simply, it is the elbow joint in the middle of an arm run, not the wall bracket and not the end coupling to the enclosure.
2) How far does the Rittal 6206620 hinge swing, and can the swing be limited?
Rotation angle is approximately 330 degrees. You can cut that down: restriction screws come in the box, and inserting them limits the swivel range so the arm cannot hit a wall, a panel edge or an adjacent operator station. Set the limit at assembly rather than trying to add it later.
3) Do I need to order extra hardware to install the 6206620, or is everything in the box?
Everything needed to make the joint is supplied: screws for restricting the rotation range, seals, adjusting screws, and self-tapping screws for attaching the support section. Nothing separate to source for the hinge itself. The support profiles and any end couplings are their own parts.
4) Will the Rittal 6206620 hinge fit an existing CP 60 arm run that is already installed?
Yes. The 6206620 is a CP 60 system component and is intended for retrofit and expansion of existing CP 60 support arm runs as well as new builds. It joins horizontal CP 60 support profiles. If the existing run is a different Rittal support arm size or generation, it is not the correct part.
5) Can cable be run through the hinge, and how do you get at it afterwards?
Cable routes through the joint and the covers come off, so you can pull or re-dress cable during setup, adjustment or servicing without breaking the hinge apart. That matters on a monitor arm where you are feeding video, power and data through the same run and will eventually need to add a cable.
6) How many hinges come in a Rittal 6206620 pack?
One piece per packaging unit, at 2.2 kg per unit. If you are building a run with two pivot points, that is two of these. Worth counting the joints off the layout before ordering, since each elbow in the arm needs its own hinge.
7) Is there any adjustment in the 6206620 hinge once it is assembled?
Adjusting screws are part of the supply, so the joint can be fine-tuned for a secure, stable connection rather than being fixed as soon as it is bolted up. Useful when a long arm develops a little droop or play and you want to take it out without pulling the run down.
8) What is the Rittal part number for the CP 60 intermediate hinge?
Order it as Rittal 6206620. That is the manufacturer part number for the CP 60 intermediate hinge with the approximately 330 degree swivel range and removable cable covers.
