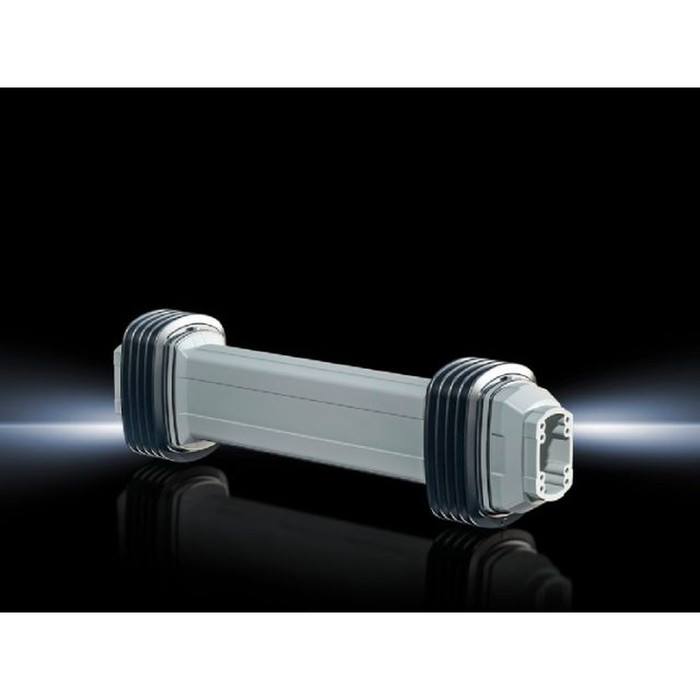

Rittal 6212120 Height-Adjustable Support Profile for CP 120 Support Arm Systems
The Rittal 6212120 Height-Adjustable Support Profile is a height-adjustable support section designed to keep key human/machine interaction parameters in clear view at every position. It fits directly onto CP 120 support arm system components on the wall side, and to the CP 120 support arm system on the enclosure side, without further adaptation. Rated for a load range of 10 kg-60 kg and finished in RAL 7035, it is built for reliable, code-compliant support arm installations in industrial and control-room environments.
Key Features
- Height-Adjustable Design: Always provides the correct view of key parameters in human/machine interaction, and the support arm holds securely in every height position.
- CP 120 Compatibility: Fits directly to CP 120 support arm system components on the wall side and to the CP 120 support arm system on the enclosure side without further adaptation.
- Load Capacity: Rated for a 10 kg-60 kg load; the broader support arm platform spans 4 kg to 60 kg across three systems (weight range applies to the configured enclosure and vertical support section).
- Precise Load Adjustment: An adjusting screw on the front of the support profile enables precise adjustment to the trailing load and can be accessed without dismantling any components.
- Clamping-Lever Fixing: Additional fixing via clamping levers is possible for extra stability in the selected position.
- Cable Management: Large cable troughs and cable guides at the swing points, plus a removable side panel, provide safe, easy access to cable routing, including connectors such as DVI and VGA.
- Consistent Tilt Angle: The tilting angle of the mounted housing stays identical in every height position for predictable viewing and access.
- Finish & Supply: Finished in RAL 7035 (basic color RAL 7035); supply includes the assembly components needed for installation.
Technical Specifications
- Refer to manufacturer documentation for complete technical specifications.
Typical Applications
- Human/Machine Interface (HMI) Enclosure Mounting
- CP 120 Wall-Mounted Support Arm Systems
- CP 120 Enclosure-Mounted Support Arm Systems
- Industrial Control Panel Viewing Angle Adjustment
- Cable Routing for DVI and VGA Connector Installations
Why Rittal?
Rittal engineers the 6212120 Height-Adjustable Support Profile with precision assembly components, clamping-lever fixing, and protected cable routing so CP 120 support arm systems stay reliable and easy to service. A durable RAL 7035 finish and a broad 4 kg-60 kg weight range across three systems make it well suited to demanding, professional HMI and control-panel installations where consistent viewing angles and secure cable management matter.
Manufacturer Resources
Rittal Product Catalog
Product Specs
- Product Type:
- Enclosure Rail & Mounting Hardware
- Series:
- CP 120
- Configuration:
- Height-Adjustable
- Product Color:
- RAL 7035
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Product Subgroup:
- Enclosure Accessories
Rittal 6212120 – Frequently Asked Questions
1) Will the Rittal 6212120 support profile mount to a CP 120 support arm system without adapters?
Yes. The 6212120 height-adjustable support profile fits directly onto CP 120 support arm system components on the wall side, and onto the CP 120 support arm system on the enclosure side, with no further adaptation. If your arm system is not CP 120, this is the wrong profile.
2) How much weight can the Rittal 6212120 height-adjustable support profile carry?
It is rated for a 10 kg to 60 kg load. That range covers the configured enclosure plus the vertical support section, so add your HMI housing weight and the section together before you commit. Anything lighter than 10 kg sits below the rated range for this profile, and the wider Rittal support arm platform starts at 4 kg across its three systems.
3) Can the operator height be adjusted after the HMI enclosure is already installed?
Yes. An adjusting screw on the front of the support profile sets the trailing load precisely and can be reached without dismantling any components. The arm holds securely at every height position, and clamping levers can be added for extra stability once you have the position you want.
4) Does the viewing angle of the panel change when you raise or lower the Rittal 6212120 profile?
No. The tilt angle of the mounted housing stays identical at every height position, so a panel set for one operator reads the same way when the next shift moves it up or down.
5) How do DVI and VGA cables run through this height-adjustable support profile?
Cable routing is internal. Large cable troughs plus cable guides at the swing points carry the harness, and a removable side panel opens the profile for access, including bulkier connectors such as DVI and VGA. That matters on a height-adjustable arm, where cable has to travel as the profile moves.
6) Does the Rittal 6212120 come with the hardware needed to mount it, or do I order fasteners separately?
Supply includes the assembly components needed for installation. You still need the CP 120 arm sections and the enclosure-side mounting your layout calls for, since the profile is the height-adjustable section within that system, not a complete arm.
7) What is the correct Rittal part number to order for a height-adjustable CP 120 support section?
Order Rittal 6212120. That is the manufacturer part number for the height-adjustable support profile in the CP 120 support arm family, and it is the only configuration offered under it.
8) What color is the Rittal 6212120 support profile, and will it match existing Rittal enclosures?
RAL 7035 light grey, the standard Rittal enclosure and support arm color, so it matches CP 120 arm components and typical Rittal HMI housings already on the floor.
