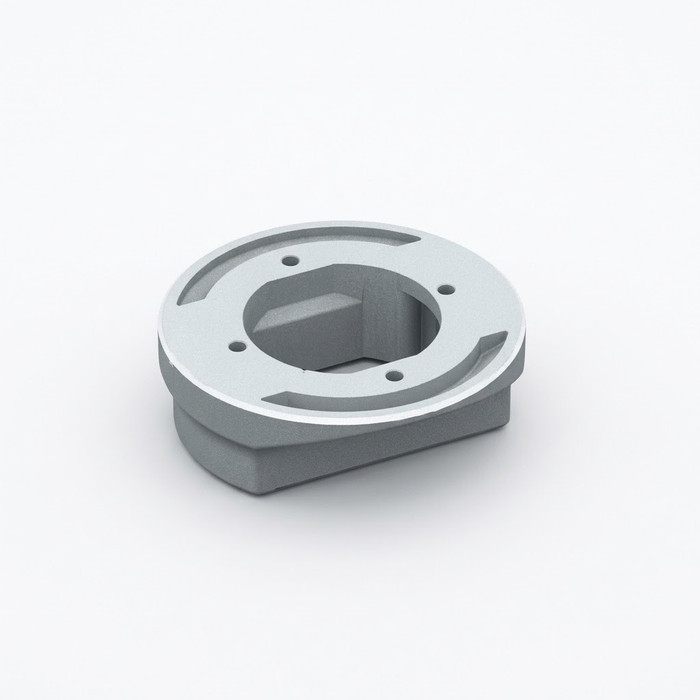

Rittal 6212500 Command Panel Mounting Adaptor, Cast Aluminum

The Rittal 6212500 Command Panel Mounting Adaptor is a cast aluminum accessory engineered for the external mounting of command panels featuring a 120 x 65 mm support arm cutout and a VESA 75/100 connection console. Finished in RAL 7035 for a consistent, professional appearance, this adaptor links command panels directly to Rittal's coupling, attachment, and pivot hardware for ergonomic, code-compliant HMI positioning in industrial control environments. It provides a stable, precisely dimensioned interface between the panel and the supporting arm or pivot assembly, helping installers position operator interfaces at the correct height and angle for safe, comfortable machine operation. Each unit ships complete with the seals and fasteners needed for a secure, weather-conscious installation.

Key Features

  • Cutout Dimension: Sized for a 120 x 65 mm support arm cutout, ensuring a precise, secure mechanical fit when mounting command panels externally.
  • VESA 75/100 Connection: Standard VESA 75/100 connection console pattern for straightforward integration with compatible command panel and monitor hardware.
  • Durable Cast Aluminum Construction: Cast aluminum body delivers strength, dimensional stability, and long-term durability in demanding industrial settings.
  • Finish: RAL 7035 finish provides a consistent, corrosion-conscious appearance that matches the broader Rittal enclosure and support-arm system.
  • Broad Hardware Compatibility: Mounts to Coupling CP 120 (6212.300), Attachment CP 120 (6212.320), Angle Coupling 90° CP 120 (6212.380), Pivot with Jib (6206.850), and Pivot for Machine-Integrated Installation (6206.870), giving installers flexibility across several Rittal support-arm configurations.
  • Complete Hardware Set: Includes the seals and fasteners required for a secure, ready-to-install external mounting installation, reducing separate hardware sourcing.
  • Compact, Lightweight Design: Weighs 0.5 kg per packaging unit and is packaged 1 pc(s) per unit, simplifying stocking and ordering for panel-builders and integrators.

Technical Specifications

  • Rifid y/n: 1

Typical Applications

  • Command Panel and HMI External Mounting
  • Industrial Control Panel Ergonomic Positioning
  • Support Arm and Pivot Assembly Systems
  • Machine-Integrated Panel Installations
  • Enclosure and Control Cabinet Accessory Upgrades
  • VESA-Standard Monitor and Panel Interface Retrofits

Why Rittal?

Rittal builds this command panel adaptor from cast aluminum with a durable RAL 7035 finish, engineered to integrate directly with Rittal's coupling, attachment, and pivot component line for a reliable, code-compliant HMI mounting solution. Because it is purpose-built to Rittal's own support-arm and pivot dimensions, panel-builders can count on a consistent, repeatable fit across installations. With seals and fasteners included, it delivers a complete, ready-to-install accessory for professional industrial control and automation applications.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Adaptor
Product Finish:
RAL 7035
Product Material:
Cast Aluminum
Department:
Electrical
Product Group:
Wiring Devices

Rittal 6212500 – Frequently Asked Questions

1) What size support arm cutout does the Rittal 6212500 command panel adaptor fit?
The 6212500 adaptor is sized for a 120 x 65 mm support arm cutout on the command panel. If the panel you are mounting has a different cutout, this adaptor will not seat correctly, so measure the existing opening before ordering.
2) Which Rittal support arm and pivot parts does the 6212500 adaptor connect to?
It mounts to Coupling CP 120 (6212.300), Attachment CP 120 (6212.320), Angle Coupling 90 degree CP 120 (6212.380), Pivot with Jib (6206.850), and Pivot for Machine-Integrated Installation (6206.870). That covers straight coupling, right-angle, jib pivot, and machine-integrated arrangements.
3) Do I need to order seals and screws separately for the Rittal 6212500 adaptor?
No. Each 6212500 ships with the seals and fasteners needed for the external mounting installation, so you are not sourcing gaskets or hardware separately. What you do supply is the coupling, attachment, or pivot it bolts to.
4) Is the Rittal 6212500 adaptor strong enough for a shop-floor HMI, and what is it made of?
The body is cast aluminum, which gives it dimensional stability and load-bearing strength for carrying an operator panel off a support arm in an industrial plant. The finish is RAL 7035, the standard light grey used across Rittal enclosures and support-arm components, so a retrofit part matches the existing system visually.
5) Can I use the 6212500 to hang a command panel on the outside of a control enclosure rather than building it into the machine?
That is exactly its purpose. The 6212500 is for external mounting of command panels, forming the interface between the panel and the support arm or pivot assembly so the operator interface sits at a usable height and angle. For a panel built into the machine frame instead, it pairs with the Pivot for Machine-Integrated Installation (6206.870).
6) What is the Rittal part number for the command panel mounting adaptor with the VESA console?
Order by manufacturer part number 6212500. It is the cast aluminum command panel mounting adaptor with the VESA 75/100 console for 120 x 65 mm support arm cutouts, and it is supplied one piece per unit.
