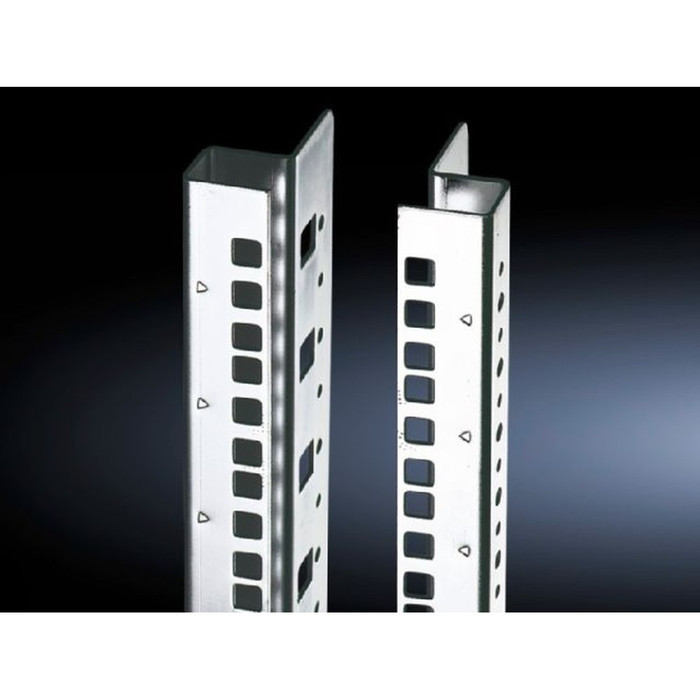

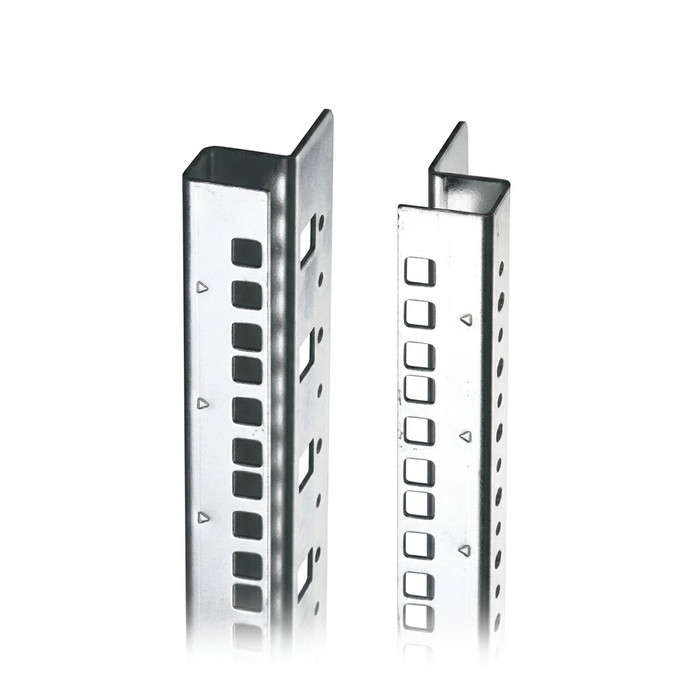

Rittal 7827120 Cranked 19" Profile Rail, Carbon Steel
Rittal profile rails deliver a right-angled, cranked mounting rail measuring 482.6 mm (19") for standardizing 19" equipment installations within enclosures and racks. Manufactured from 2 mm carbon steel with a clear chromated finish, these rails provide a conductive connection for grounding 19" fixtures and are supplied as a 24 U rail with integral EIA-standard punchings. Side round and square punchings support flexible mounting of a wide range of 19" accessories, and the rails can also be used to accommodate 21", 23", and 24" attachment dimensions.
Key Features
- Trade Size: 482.6 mm (19") integral punchings built to the EIA standard, with support for 21", 23", and 24" attachment dimensions.
- Durable Construction: 2 mm carbon steel provides a rigid, long-lasting profile rail for demanding 19" enclosure builds.
- Cranked (Right-Angled) Version: Right-angled profile rail design; L-shaped profile rails are available as an alternate configuration and require a mounting adapter for combined use.
- Conductive Finish: Clear chromated coating supports a conductive connection for properly grounding 19" fixtures.
- Height Units: 24 U rail height for systematic, full-height 19" equipment mounting.
- Integral U Markings: Front-facing U markings simplify accurate, systematic assembly within the 19" level.
- Punching Pattern: Side round and square punchings accommodate a wide range of mounting hardware and 19" accessories.
- Supply Includes: Assembly components are included, packaged 2 pc(s) per packaging unit at 3.65 kg per packaging unit.
Technical Specifications
- Trade Size: 482.6 mm (19")
- Height Units: 24 U
- Version: Cranked
- Material: Carbon steel, 2 mm
- Packaging Unit: 2 pc(s).
- Weight/Packaging Unit: 3.65 kg
Typical Applications
- 19" Equipment Racks and Enclosures
- Server and Network Cabinet Assembly
- Industrial Control Panel Mounting
- Systematic 19"-Level Equipment Installation
- Combination Builds with L-Shaped Profile Rails (via mounting adapter)
Why Rittal?
Rittal profile rails are built from robust 2 mm carbon steel with a clear chromated finish for reliable, conductive 19" equipment mounting. Integral EIA-standard punchings and front-facing U markings support fast, systematic assembly, making these rails a dependable foundation for professional enclosure and rack-mounting projects.
Manufacturer Resources
Rittal Product Catalog
Product Specs
- Product Type:
- Enclosure Rail & Mounting Hardware
- Product Finish:
- Clear Chromated
- Configuration:
- Cranked
- Product Material:
- Carbon Steel
- Product Size:
- 19"
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Product Subgroup:
- Enclosure Accessories
Rittal 7827120 – Frequently Asked Questions
1) Will the Rittal 7827120 profile rail work for mounting 21", 23" or 24" equipment, not just 19"?
Yes. The 7827120 is a 482.6 mm (19") rail with integral EIA-standard punchings, and the punching pattern also accommodates 21", 23" and 24" attachment dimensions. So an enclosure built with these rails can take wider-flange equipment without swapping the rails out.
2) Does the Rittal 7827120 rail give a grounded connection for 19" equipment?
The rail is carbon steel with a clear chromated finish, which is a conductive coating rather than a paint, so it provides a conductive connection for grounding 19" fixtures mounted to it. That matters if your bonding scheme relies on the rail rather than separate ground straps.
3) Do I get one rail or a pair with Rittal 7827120, and does it include the mounting hardware?
The packaging unit is 2 pieces at 3.65 kg per unit, and assembly components are included. A 19" level needs a rail on each side, so one packaging unit covers one mounting level.
4) How many rack units does the Rittal 7827120 rail cover?
It is a 24 U rail, with front-facing U markings stamped into the profile so you can count positions and lay out equipment without measuring. If your cabinet is taller than 24 U, these rails will not run the full height on their own.

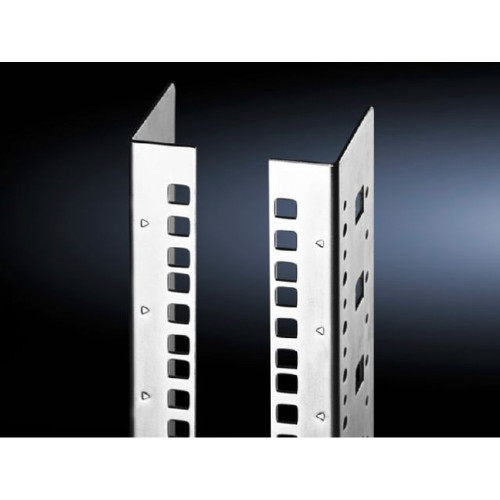

5) What is the difference between a cranked profile rail and an L-shaped one?
Cranked means the right-angled profile version, which is what the 7827120 is. L-shaped profile rails are the alternate configuration, and if you want to combine the two types in one build you need a mounting adapter between them. Pick one style and stay with it unless you are prepared to order the adapter.
6) How thick is the steel on these Rittal 19" profile rails?
2 mm carbon steel. That gauge is what lets the rail carry heavier switchgear and server hardware across a full 24 U without deflecting, and it is the reason these are specified for industrial control panel builds as well as network cabinets.
7) Can I bolt standard 19" accessories to the side of these rails?
Yes, the profile carries both round and square side punchings in addition to the front EIA punchings, so cable managers, brackets and other 19" accessories can be fixed to the sides rather than only the face.
