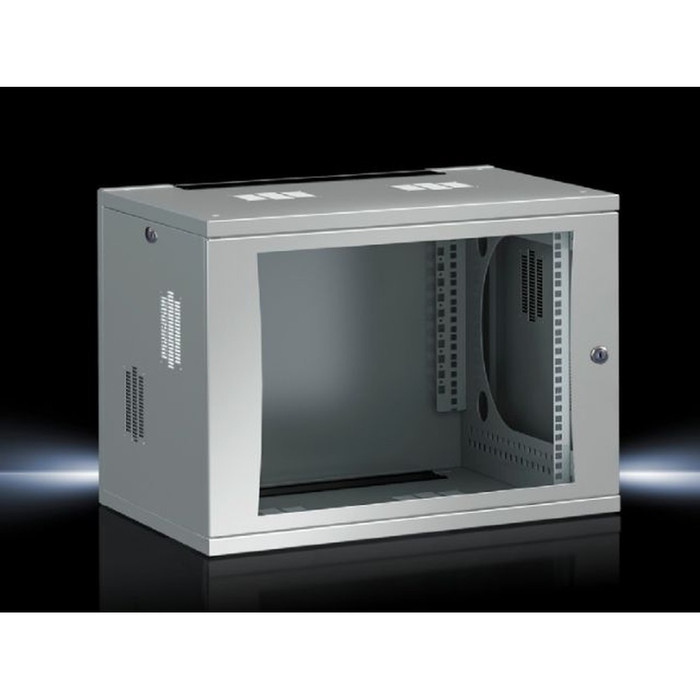

Rittal 7507110 FlatBox 19" 9U Wall-Mount Enclosure, Carbon Steel

Rittal 7507110 FlatBox 19" 9U Wall-Mount Enclosure, Carbon Steel

(No reviews yet) Write a Review

Model: 7507110

In Stock (leaves warehouse same day if ordered before 3pm ET)

$689.84
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal FlatBox 7507110 19" 9U Wall-Mount Enclosure, Carbon Steel

The Rittal FlatBox 7507110 is a flat-packed, 19" rack enclosure engineered for optimal access and flexible use as a wall-mounted or floor-standing enclosure. This 9U enclosure features a carbon steel base and frame, 19" profile rails, and a powder-coated RAL 7035 finish, and ships complete with 2 basic supports, 2 roof/base plates with cut-outs for cable entry via brush strips, a wall section, and connection components for tool-free, fast assembly. The open 19" frame supports system accessories for network, server, and industrial control panel applications.

Key Features

  • Trade Size: 9U installation height with 19" profile mounting rails for standard rack-mounted components.
  • Durable Construction: Carbon steel base and frame construction with a single-pane safety glass viewing window, 3 mm, for a rugged, professional-grade enclosure.
  • Flat-Packed Design: Flat-packed enclosure with tool-free, fast-assembly connection components for wall-mounted or floor-standing installation.
  • Load Capacity: Max. 450 N load capacity for mounted components and accessories.
  • Lockable Access: 2 lockable side panels and a lockable glazed door with security lock 3524 E and a freely selectable door catch; max. door opening angle of 210°.
  • Grounding Kit: Includes a grounding kit for system-compatible grounding of all enclosure parts.
  • Finish: Powder-coated in RAL 7035 for a durable, corrosion-resistant surface.
  • Installation Depth: Max. installation depth of depth minus 58 mm to the rear panel, with a max. distance between two 19" levels of depth minus 104 mm.

Technical Specifications

  • Height units: 9 U
  • Installation height for components: 9 U

Typical Applications

  • 19" Rack and Server Enclosures
  • Industrial Control Panel Housing
  • Wall-Mounted or Floor-Standing Equipment Enclosures
  • System Accessory Mounting on Open 19" Frames
  • Commercial and Industrial Electrical Installations

Why Rittal?

Rittal engineers the FlatBox enclosure with a carbon steel base and frame, a powder-coated RAL 7035 finish, and lockable glazed door and side panels for secure, professional-grade installations. Tool-free connection components and a system-compatible grounding kit make the FlatBox a reliable choice for fast, code-compliant rack and enclosure deployments.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Enclosure
Product Finish:
Powder-Coated
Configuration:
19" Mounting Rails
Series:
FlatBox
Product Material:
Carbon Steel
Product Color:
RAL 7035
Product Size:
19"
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Enclosures

Rittal 7507110 – Frequently Asked Questions

1) How much rack space is in a 9U FlatBox enclosure and will standard 19 inch gear fit?
The 7507110 gives 9U of installation height for components on 19 inch profile mounting rails, so any standard 19 inch rack-mount switch, patch panel or control component drops straight in. Count your gear in U first, 9U is the full usable height, not the outside height.
2) How deep can the equipment be in the FlatBox, and what is the usable depth behind the rails?
Usable installation depth is the enclosure depth minus 58 mm to the rear panel, and if you set up two 19 inch levels the maximum distance between them is depth minus 104 mm. Subtract those figures from the depth of the FlatBox version you order to confirm your deepest chassis clears.
3) Is the Rittal FlatBox lockable for a shared or public space?
Yes. The 7507110 has 2 lockable side panels and a lockable glazed door using security lock 3524 E, with a freely selectable door catch. That is enough to keep network gear out of reach in a corridor, classroom or tenant utility area while still letting staff see status LEDs through the single-pane 3 mm safety glass window.
4) What comes in the box with the Rittal 7507110, and what do I still need to buy?
The 7507110 ships with 2 basic supports, 2 roof/base plates with cut-outs for cable entry, a wall section, connection components for tool-free assembly, and a grounding kit for system-compatible grounding of all enclosure parts. Brush strips for the cable entries and any 19 inch system accessories (shelves, panels, PDUs) are separate items.
5) Is an ABB Q-Line NEMA 3R 225A enclosure a substitute for a Rittal 7507110 FlatBox?
No. The Rittal 7507110 FlatBox is a 19 inch, 9U rack enclosure with 19 inch profile mounting rails, intended for rack-mounted network, server, and control panel components, and it has a glazed viewing door with lockable side panels. The ABB Q-Line enclosure is a 225A rated enclosure in ABB's Q-Line power distribution family and is not built around 19 inch rack rails, so rack-mount gear cannot be fastened into it. If the equipment being installed has standard 19 inch rack ears and a stated U height, the FlatBox is the correct form factor.
6) How much weight can I mount in the Rittal FlatBox 7507110?
Max load capacity is 450 N for mounted components and accessories. That is the limit for everything you hang on the 19 inch rails and system accessories combined, so a stack of heavier servers is outside what this flat-packed enclosure is rated to carry.
7) How does cable entry work on the FlatBox enclosure?
The roof and base plates both come with cut-outs intended for cable entry via brush strips, so you can bring copper or fiber in from above or below without punching the sheet metal. Both plates are included with the 7507110.
8) Is the Rittal FlatBox finish suitable for an indoor plant or shop environment?
The base and frame are carbon steel powder-coated in RAL 7035 light grey, a corrosion-resistant surface and the standard Rittal enclosure color, so it matches existing Rittal cabinets in the same room. For wet or outdoor locations you want a rated washdown or outdoor enclosure instead.
9) Should I use a 19 inch rack enclosure like the FlatBox or a surface-mount electrical enclosure?
Pick by what is going inside. The FlatBox is a 19 inch rack enclosure with profile rails and 9U of component height, so it is for rack-format network, server and control gear. If you are housing breakers or a disconnect instead, a surface-mount electrical box such as the ABB Formula A2ENCL250 Series is the right family, and for a 225A service application ABB's Q-Line NEMA 3R 225A enclosure is the type to look at. Those have no 19 inch rails.
10) Is the FlatBox grounded as a system, or do I have to bond the panels myself?
A grounding kit is included for system-compatible grounding of all enclosure parts, which covers bonding the door, side panels and frame back to the enclosure's ground point. You still run your building ground to that point.
11) I need an enclosure that can sit on the floor or hang on the wall depending on the room. Which of these works both ways?
The Rittal 7507110 FlatBox is engineered for use either wall-mounted or floor-standing and ships with 2 basic supports, 2 roof and base plates with cut-outs for cable entry via brush strips, a wall section, and tool-free connection components, so one part number covers both orientations. The ABB Formula A2ENCL250 series is a surface-mount enclosure, which commits you to mounting against a surface.
12) What should I use instead of the Rittal 7507110 FlatBox for a surface-mounted panel that does not need rack rails?
For a surface-mounted enclosure housing panel-mounted components rather than 19 inch rack equipment, the ABB Formula A2ENCL250 series surface-mount electrical enclosure is the alternative to look at. The Rittal 7507110 FlatBox is organized around 19 inch profile rails and a 9U installation height and ships as a flat-packed assembly with basic supports, roof and base plates with cable-entry cut-outs, and a wall section, so its value is in rack-mounting; if nothing in the build is rack-format, that structure is not doing any work for you.
13) Which enclosure gives me a view of the equipment without opening the door?
The Rittal 7507110 FlatBox has a lockable glazed door with a single-pane safety glass window, 3 mm, so mounted equipment and indicator lights can be checked with the door closed and locked. Neither the ABB Formula A2ENCL250 surface-mount enclosure nor the ABB Q-Line NEMA 3R 225A enclosure is described as a glazed-door enclosure.
14) How far does the FlatBox door open, and does that affect where I can mount it?
The glazed door opens to a maximum of 210 degrees, so it swings back nearly flat against the wall. Useful if you are mounting in a tight corridor and need the door clear of the working area, but plan the hinge side so the swing is not into a wall return.
15) Does the Rittal FlatBox ship assembled?
No, it arrives flat-packed. The connection components allow tool-free, fast assembly on site, which is why it fits through doorways and up stairwells that a welded cabinet will not.
