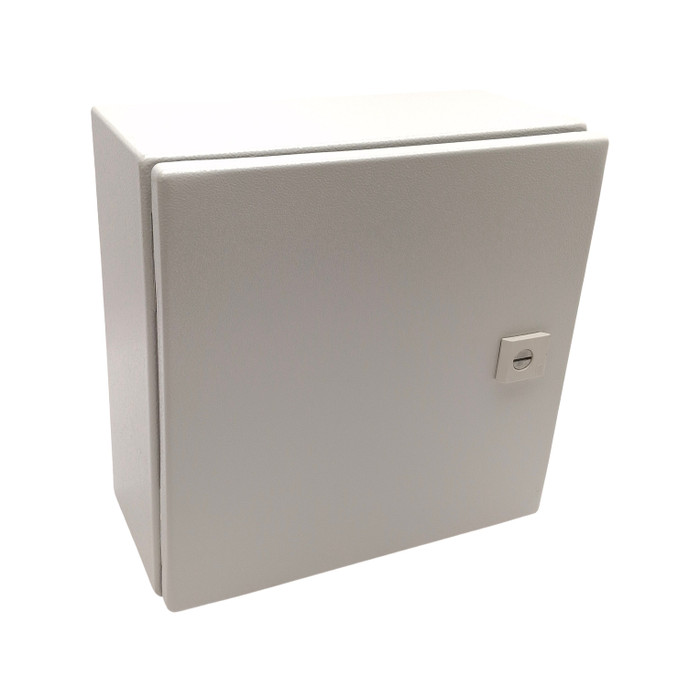

Rittal WM Series NEMA 3R One-Door Wall Mount Enclosure, Carbon Steel

Rittal WM Series NEMA 3R One-Door Wall Mount Enclosure, Carbon Steel

(No reviews yet) Write a Review

Model: WM121206NC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$222.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal WM Series One-Door Wall Mount Enclosure, Carbon Steel

The Rittal WM Series One-Door Wall Mount Enclosure is a NEMA 3R rated enclosure built from powder coated carbon steel, engineered to protect electrical components and control equipment in industrial and commercial environments. This WM Series enclosure is available in sizes ranging from 12-Inch x 12-Inch x 6-Inch up to 24-Inch x 24-Inch x 8-Inch, each featuring a single hinged door for convenient access to internal wiring, terminal blocks, and control devices. Finished in RAL 7035 gray powder coat, the WM Series delivers durable, corrosion-resistant protection suitable for both indoor and rain-protected outdoor applications, giving contractors and facility teams a code-compliant housing for panel and equipment mounting.

Key Features

  • Range of Sizes: Available from 12-Inch x 12-Inch x 6-Inch up to 24-Inch x 24-Inch x 8-Inch to fit a wide range of wall mount installations.
  • Durable Construction: Carbon steel body resists impact and provides a rigid, code-compliant enclosure for electrical components and wiring.
  • One-Door Design: Single hinged door provides straightforward access for installation, wiring, device mounting, and ongoing maintenance.
  • NEMA 3R Rating: Rated for outdoor and rain-protected use, shielding internal components from rain, sleet, snow, and dust.
  • Powder Coat Finish: RAL 7035 gray powder coating resists corrosion, scratching, and fading while providing a clean, professional appearance.
  • WM Series: Part of Rittal's WM Series wall mount enclosure line, engineered for consistent fit, finish, and mounting compatibility.
  • Wall Mount Configuration: Designed for direct wall mounting, keeping electrical devices organized and protected at the point of installation.

Certifications & Compliance

  • NEMA 3R Rated for Outdoor and Rain-Protected Applications

Technical Specifications

  • Product Finish: Powder-Coated
  • Configuration: One Door

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Wall-Mounted Control and Equipment Housing
  • Outdoor and Rain-Protected Enclosure Applications
  • Panelboard and Component Protection
  • Terminal Block and Wiring Device Housing
  • Renovation and New Construction Wall Mount Installations

Why Rittal?

Rittal builds the WM Series from powder coated carbon steel to deliver a rugged, NEMA 3R rated enclosure that holds up in demanding electrical environments. With a durable RAL 7035 gray finish, a reliable one-door design, and consistent WM Series construction across sizes from 12-Inch x 12-Inch x 6-Inch to 24-Inch x 24-Inch x 8-Inch, this enclosure gives electrical professionals a dependable, code-compliant housing solution they can specify with confidence for wall-mounted panel and control applications.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Hinged-Cover Enclosure
Product Finish:
Powder-Coated
Standards:
NEMA 3R
Configuration:
One Door
Series:
WM Series
Product Material:
Carbon Steel
Product Color:
Gray
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Enclosures

Rittal WM121206NC – Frequently Asked Questions

1) Can a Rittal WM Series carbon steel enclosure be mounted outdoors?
Yes, within the limits of a NEMA 3R rating. The WM Series one-door wall mount enclosure is rated NEMA 3R, which covers outdoor, rain-protected service: rain, sleet, snow and falling dirt. It is not a washdown or hose-down enclosure, so if your location sees direct pressure spray or corrosive wet process areas, step up to a gasketed NEMA 4 or 4X type instead.
2) What sizes does the Rittal WM Series one-door wall mount enclosure come in?
Two sizes are offered: 12 x 12 x 6 inches (WM121206NC) and 24 x 24 x 8 inches (WM242408NC), both height x width x depth. The 6 inch depth on the small box is tight for anything with deep-bodied breakers or stacked terminal rails behind the door, so for a populated control panel the 8 inch deep 24 x 24 is the safer pick.
3) What is another NEMA 3R rated enclosure if the Rittal WM Series sizes do not work for the installation?
The ABB Q-Line NEMA 3R 225A enclosure is also NEMA 3R rated, and it is built around a 225A Q-Line load center application rather than as a general-purpose wall mount box. The Rittal WM Series is a NEMA 3R one-door carbon steel wall mount enclosure in sizes from 12 x 12 x 6 inch up to 24 x 24 x 8 inch, intended as open housing for panels, terminal blocks, and control devices. Choose the Q-Line unit when the enclosure has to suit that breaker assembly, and the WM Series when you are mounting your own components inside.
4) Is the Hoffman A12124GSC a direct substitute for a 12 x 12 x 6 inch Rittal WM enclosure?
Not a direct one. The Hoffman A12124GSC is a screw-cover gasketed enclosure measuring 12 x 12 x 4 inch, so the cover lifts off entirely and the depth is shallower. The Rittal WM121206NC is 12 x 12 x 6 inch with a single hinged door, which stays attached while you wire. If you need the extra two inches of depth for device stack-up, or want a door rather than a removable cover for repeated access, stay with the WM Series.
5) Is the Rittal WM enclosure steel or stainless, and how is it finished?
Carbon steel body with a powder coat finish in RAL 7035 gray. That holds up to impact and gives corrosion and scratch resistance for indoor and rain-protected outdoor mounting, but it is a painted steel box, not stainless. For a corrosive or food-plant environment specify stainless, such as the Eaton 10250T heavy-duty watertight/oiltight stainless steel enclosure.
6) Does the WM Series enclosure have a hinged door or a screw cover?
A single hinged door, so you can swing it open and leave it open while you terminate wiring or mount devices on the back panel. If you want a flat screw-on cover instead, that is a different build, like the Hoffman A12124GSC screw-cover gasketed enclosure at 12 x 12 x 4 inches. Hinged doors are generally preferred where the box gets opened for routine maintenance.
7) Is a NEMA 3R enclosure enough for a washdown area or outdoor meter location?
No. 3R protects against falling rain, sleet and snow but is not watertight against directed spray. For a hose-down bay or an exposed metering install, go to a NEMA 4X type such as the Square D EM3570ENC enclosure for PowerLogic EM357x meters. Keep the Rittal WM for sheltered exterior walls and indoor industrial spaces.
8) Can I use an Eaton M22 surface mounting enclosure in place of a Rittal WM enclosure?
No. The Eaton M22 one-element surface mounting enclosure is a non-illuminated 22.5 mm housing sized for a single pilot device such as a pushbutton or selector switch. The Rittal WM Series is a wall mount enclosure from 12 x 12 x 6 inch to 24 x 24 x 8 inch, sized to hold panels, terminal blocks, and control devices behind a hinged door. The M22 is an operator station, not a panel enclosure.
9) We need a washdown or corrosive-area enclosure instead of NEMA 3R. What else is there?
Two options in that direction: the Eaton 10250T heavy-duty watertight/oiltight enclosure is stainless steel with a 30.5mm device opening, and the Square D EM3570ENC enclosure for PowerLogic EM357x meters is NEMA 4X. The Rittal WM Series is NEMA 3R powder coated carbon steel, which covers rain-protected outdoor and indoor use rather than direct hosedown or chemical exposure. For a general wall-mount box in a sheltered location the WM Series applies; for a wet or corrosive room, look to the stainless or 4X rated units.
10) Will all the WM Series sizes match in appearance if I install several on one building?
They will. Every size in the WM one-door line uses the same carbon steel construction and RAL 7035 gray powder coat, so a 12 x 12 x 6 next to a 24 x 24 x 8 reads as the same family. That is useful for facility teams standardizing enclosures across multiple mounting locations.
11) What are the other general-purpose enclosure families to consider alongside the Rittal WM Series?
Two broader families come up: the ABB Formula A2ENCL250 Series surface-mount electrical enclosure and the Eaton MVXENC Series industrial electrical enclosure. The Rittal WM Series distinguishes itself as a NEMA 3R one-door design in RAL 7035 gray powder coated carbon steel, offered in 12 x 12 x 6 inch and 24 x 24 x 8 inch, so it is the one to specify when you want consistent fit and finish across wall mount locations in a facility.
