Rittal 1034250-11 WM Series Single-Door Wall-Mounted Enclosure, Carbon Steel

Rittal 1034250-11 WM Series Single-Door Wall-Mounted Enclosure, Carbon Steel

(No reviews yet) Write a Review

Model: 8017554

In Stock (leaves warehouse same day if ordered before 3pm ET)

$444.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal 1034250-11 WM Series Single-Door Wall-Mounted Enclosure, Carbon Steel

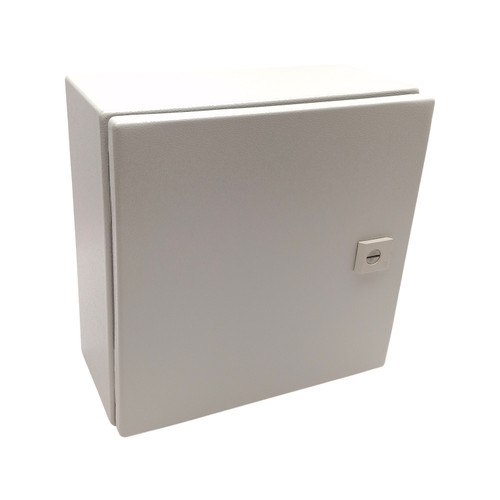

The Rittal WM Series Single-Door Wall-Mounted Enclosure is a cold rolled carbon steel enclosure built for electrical, control, and instrumentation installations that demand reliable protection against dust, moisture, and washdown conditions. This single-door enclosure is available in 11 sizes ranging from 12 × 12 × 6 in to 36 × 24 × 8 in (H×W×D), so panel builders can match the enclosure footprint to the application. Every size shares the same foamed-in-place gasket, knife-edge sealing surface, and zinc-plated mounting panel, and the line carries NEMA 1, 3R, 4, 12 protection ratings for indoor and outdoor use. The enclosure ships in a durable RAL 7035 finish with a single door hinged on the left for straightforward wall installation.

Key Features

  • Size Range: Available in 11 sizes from 12 × 12 × 6 in up to 36 × 24 × 8 in (H×W×D), giving installers flexibility to match the enclosure to the equipment layout.
  • Durable Construction: Cold rolled carbon steel body and door with 1.5 mm material thickness on the enclosure, door, and mounting plate for demanding industrial and commercial environments.
  • Secure Sealing System: A foamed-in-place gasket and knife-edge sealing surface work with a quarter turn latch and slotted head insert to keep out dust and moisture.
  • NEMA Protection: Rated NEMA 1, 3R, 4, 12, suitable for indoor, outdoor, and washdown applications where dust and water ingress are a concern.
  • Zinc-Plated Mounting Panel: The included mounting plate is zinc plated for added corrosion resistance during and after installation.
  • Left-Hinged Single Door: Each enclosure ships with a single door hinged on the left along with rear wall mounting holes for straightforward, secure wall installation.
  • RAL 7035 Finish: A durable RAL 7035 exterior finish gives the enclosure a clean, professional appearance on the wall.

Certifications & Compliance

  • NEMA 1 Rated
  • NEMA 3R Rated
  • NEMA 4 Rated
  • NEMA 12 Rated

Technical Specifications

  • Refer to manufacturer documentation for complete specifications.

Typical Applications

  • Industrial Control Panel Enclosures
  • Wall-Mounted Electrical Equipment Housings
  • Outdoor and Wet-Location Electrical Installations
  • Commercial and Industrial Electrical Installations
  • Renovation and New Construction Wiring Compartments

Why Rittal?

Rittal WM Series enclosures pair cold rolled carbon steel construction with a foamed-in-place gasket and knife-edge sealing surface to deliver dependable NEMA 1, 3R, 4, 12 protection across the full size range. The zinc-plated mounting panel and consistent 1.5 mm material thickness across the enclosure, door, and mounting plate support reliable, code-compliant installations for professional electrical work, while the RAL 7035 finish and left-hinged door make installation straightforward for contractors.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Material:
Carbon Steel
Product Type:
Enclosure
Department:
Electrical
Product Group:
Wiring Devices
Configuration:
Single-Door
Series:
WM
Finish:
RAL 7035
Standards:
NEMA 1, 3R, 4, 12

Rittal 8017554 – Frequently Asked Questions

1) Can a Rittal WM wall-mount enclosure be installed outdoors or in a washdown area?
Yes. The Rittal WM Series single-door wall-mount enclosure carries NEMA 1, 3R, 4 and 12 ratings, which covers indoor general purpose, outdoor rain exposure, hosedown/washdown, and dust and dripping non-corrosive liquids. The seal comes from a foamed-in-place gasket working against a knife-edge sealing surface, with a quarter turn latch pulling the door in. Note the body is cold rolled carbon steel with an RAL 7035 finish, not stainless, so for corrosive or chemical wash environments a 4X stainless or non-metallic box is the better call.
2) What sizes does the Rittal WM single-door enclosure come in?
Eleven sizes, from 12 x 12 x 6 in up to 36 x 24 x 8 in (H x W x D). The full run is 12x12x6, 16x12x8, 16x16x6, 24x16x6, 24x20x8, 24x20x10, 24x24x10, 24x30x8, 30x30x10, 30x30x12 and 36x24x8 inches. Depth matters most when you are stacking DIN rail, a disconnect handle, or deep breakers on the back panel, so pick the 10 or 12 inch depth if door-mounted devices need clearance over the panel.
3) Does the Rittal WM enclosure come with a back panel, or do I order that separately?
A mounting plate is included with the enclosure, and it is zinc plated for corrosion resistance. The plate runs the same 1.5 mm material thickness as the body and door, so it will take drilled and tapped holes for DIN rail, wireway and component feet without needing a doubler.
4) I only need an outdoor rainproof box for a 225A breaker - is the Rittal WM enclosure the right choice or is there something more specific?
The Rittal 1034250-11 WM Series is a general-purpose single-door wall-mount enclosure in cold rolled carbon steel with a zinc-plated mounting panel, sized from 12 x 12 x 6 in up to 36 x 24 x 8 in, so you mount and drill your own gear inside it. If the job is specifically housing a 225A Q-Line breaker outdoors, the ABB TQD225R is a NEMA 3R enclosure built around that 225A application. The difference is scope: the Rittal is an empty panel-builder enclosure you lay out yourself and carries NEMA 1, 3R, 4 and 12, while the ABB unit is matched to a defined breaker rating at NEMA 3R.
5) If the panel needs a NEMA 4X washdown rating instead of NEMA 4, what enclosure should I look at?
The Rittal 1034250-11 WM Series carbon steel wall-mount enclosure carries NEMA 1, 3R, 4 and 12 protection ratings, which covers dust, rain and hose-down water ingress but not the 4X corrosion-resistance designation. Where a spec calls specifically for NEMA 4X - food processing, chemical exposure, coastal or chlorinated wash areas - the Square D EM3570ENC enclosure for PowerLogic EM357x meters is rated NEMA 4X. Note that the Square D unit is built as a meter enclosure for the EM357x family rather than a general-purpose panel box, so it is a fit when the housed equipment is that meter, not a drop-in replacement for a general control panel enclosure.
6) Which way does the door swing on the Rittal WM enclosure?
Left-hinged, on every size in the WM single-door line. Plan your wall location so the door has clear swing to the left and so the hinge side is not buried against a corner or a piece of adjacent equipment. Rear wall mounting holes are provided in the back of the box for direct wall fastening.
7) How thick is the steel on the Rittal WM enclosure?
1.5 mm cold rolled carbon steel on the enclosure body, the door, and the mounting plate. That is consistent across all eleven sizes, so a 36 x 24 x 8 box is built from the same gauge as a 12 x 12 x 6. It is heavy enough to hold the door flat against the knife-edge gasket surface on the larger footprints, which is what keeps the NEMA 4 seal honest.
8) What is the part number for the 16 x 12 x 8 inch Rittal WM enclosure?
Rittal 1034250 is the 16 x 12 x 8 in (H x W x D) single-door WM wall-mount enclosure. Other common sizes in the same family: 8017528 for 12 x 12 x 6, 8017530 for 16 x 16 x 6, 8017546 for 24 x 20 x 8, 8017554 for 36 x 24 x 8, and 1073250 for 30 x 30 x 12. Order by the size code, since all of them share the same construction, finish and rating.
9) I need a NEMA 4X enclosure for a meter. Is the Rittal WM steel box the right choice?
No. The WM Series is rated NEMA 1, 3R, 4 and 12 in painted carbon steel, which does not cover the corrosion resistance a 4X call-out requires. For a metered application specifically, the Square D EM3570ENC enclosure for PowerLogic EM357x meters is a NEMA 4X option. Use the Rittal WM where the spec is 4 or 12 and the environment is not corrosive.
10) How does the Rittal WM enclosure differ from an ABB CR Series industrial enclosure housing?
The Rittal 1034250-11 WM Series is a single-door wall-mounted enclosure in cold rolled carbon steel with a foamed-in-place gasket, knife-edge sealing surface, quarter turn latch, left-hinged door and a RAL 7035 finish, offered in 11 sizes and rated NEMA 1, 3R, 4 and 12. The ABB CR-104PEG11 is from ABB's CR Series of industrial electrical enclosure housings. Where the two separate for a panel builder is the published detail set: the Rittal line states its material, sealing system, hinge side, finish and its full NEMA rating list up front, which is what a control panel layout and a spec submittal usually have to show.
11) Can I use a meter enclosure like the Square D EM3570ENC in place of a WM Series box for a general control panel?
They are not interchangeable. The Square D EM3570ENC is an enclosure made for the PowerLogic EM357x meter family, so its interior is arranged around that instrument. The Rittal 1034250-11 WM Series ships as an empty single-door wall-mount enclosure with a zinc-plated mounting panel and rear wall mounting holes, which is what you want when you are laying out contactors, terminal blocks or a PLC yourself, and it is offered from 12 x 12 x 6 in through 36 x 24 x 8 in so the footprint can follow the equipment layout.
12) Does the Rittal WM enclosure come with conduit knockouts?
The WM body ships as a sealed box with rear wall mounting holes only. Conduit entries are field-cut, which is normal on a NEMA 4 rated enclosure, since every penetration has to be made with a rated hub or fitting to hold the rating. Plan your entries on the bottom or the sides rather than the top if the box sees outdoor or washdown exposure.
