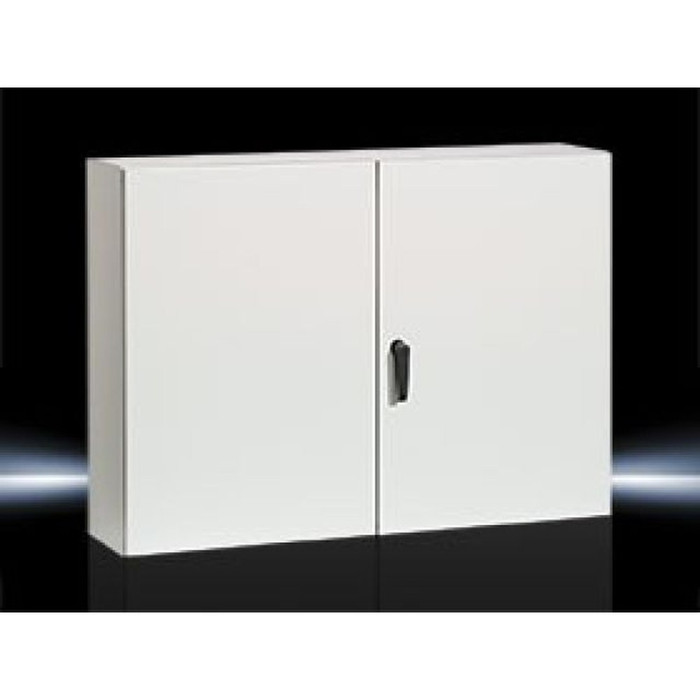

Rittal WM 8017587 Double-Door Wall-Mounted Enclosure, NEMA 12 Steel

Rittal WM 8017587 Double-Door Wall-Mounted Enclosure, NEMA 12 Steel

The Rittal WM 8017587 Double-Door Wall-Mounted Enclosure is a rugged steel enclosure engineered to protect electrical and electronic components in industrial and commercial installations. Built with a cold rolled steel body and door, this NEMA 12 enclosure pairs a foamed-in-place gasket and knife-edge sealing surface with a secure 3-point locking system to keep dust and dripping water out of sensitive equipment. The unit ships with a zinc-plated mounting plate sized 1,450 mm x 1,000 mm, giving installers ample room to mount components inside the double-door housing.

Key Features

• Mounting Plate Dimensions: 1,450 mm x 1,000 mm zinc-plated steel mounting plate for flexible component layout inside the enclosure.
• Durable Steel Construction: Cold rolled steel body and door with 2 mm material thickness on the enclosure and door for long-lasting strength.
• Double-Door Design: Two-door configuration with a 3-point locking system for secure, convenient access to enclosed equipment.
• Foamed-In-Place Gasket & Knife-Edge Seal: Works with the secure locking system to maintain NEMA 12 protection against dust and dripping water.
• NEMA 12 Protection: Rated NEMA 12 for indoor environments where dust, dirt, and dripping water are a concern.
• Premium Finish: Dipcoat-primed and powder-coated textured paint on the enclosure body, with a zinc-plated mounting plate for corrosion resistance.
• RAL 7035 Color: Neutral RAL 7035 finish suited to industrial and commercial electrical rooms.

Certifications & Compliance

• NEMA 12 Rated Enclosure

Technical Specifications

• Number of Doors: 2
• 3-Point Locking System: 1
• Material Thickness (Enclosure): 2 mm
• Material Thickness (Door): 2 mm
• Material Thickness (Mounting Plate): 2.5 mm
• Dimensions of Mounting Plate (W x H): 1,450 mm x 1,000 mm
• Color: RAL 7035
• Weight/Packaging Unit: 118 kg
• Packaging Unit: 1 pc(s).

Typical Applications

• Industrial Control Panel Housing
• Electrical and Electronic Component Enclosures
• Indoor Wall-Mounted Equipment Installations
• Dust and Dirt-Tight Applications
• Commercial and Industrial Building Wiring
• Renovation and New Construction Projects

Why Rittal?

Rittal engineers the WM series for demanding indoor electrical environments, combining cold rolled steel construction, a foamed-in-place gasket, and a 3-point locking system to deliver dependable NEMA 12 protection. The dipcoat-primed, powder-coated finish and zinc-plated mounting plate support long-term corrosion resistance, helping ensure a code-compliant, professional installation.
