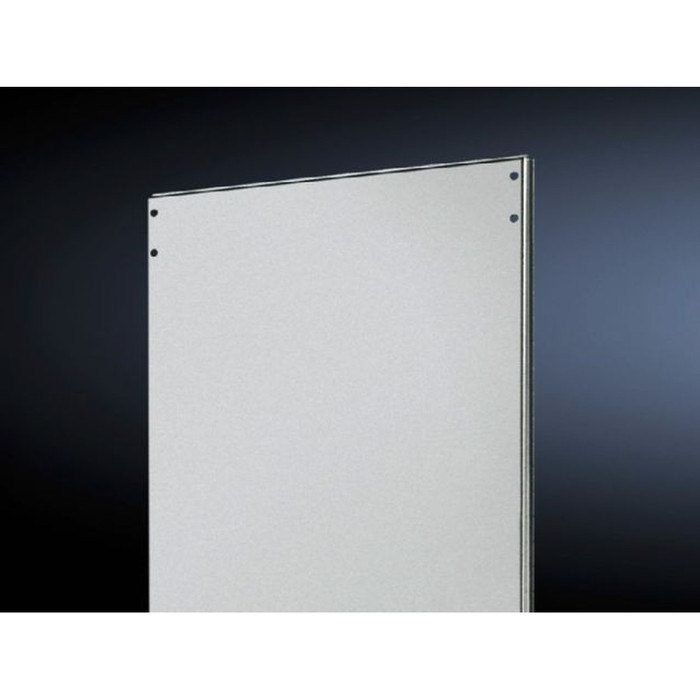

Rittal 8609050 Carbon Steel Divider Panel, IP54 Zinc-Plated
The Rittal 8609050 Carbon Steel Divider Panel, IP54 Zinc-Plated shields individual enclosure cells within Rittal frame-based enclosure systems. Built from carbon steel, 1.5 mm with a zinc-plated finish and rated IP 54 to EN 60529 and IEC 60529, this divider panel takes advantage of the frame system's symmetry so it can be mounted at either the front or the rear of the enclosure, giving panel builders flexibility when planning cell layouts and equipment placement. It is a practical solution for keeping adjacent enclosure cells separated and protected while equipment is installed, serviced, or expanded over time.
Key Features
- Durable Construction: Carbon steel, 1.5 mm construction provides a rigid, robust divider panel for demanding enclosure applications.
- Protection Rating: Rated IP 54 to EN 60529 and IP 54 to IEC 60529 for protection against dust ingress and splashing water.
- Finish: Zinc-plated surface finish supports corrosion resistance in enclosure environments.
- Rear-Mount Capable: The symmetry of the frame system allows the divider panel to be installed at the rear as well as the front of the enclosure.
- Heat Dissipation Mounting Tip: Can be fitted at the rear to install frequency converters with cooling units facing outward, while remaining protected and concealed behind a cover.
- Flexible Installation: Mounts on the outer mounting level while the inner level remains free for further expansion, preserving space for additional components.
- Supply Includes: Assembly components included for installation.
- Packaging: Supplied 1 pc(s) per packaging unit, weight/packaging unit 11.9 kg.
Certifications & Compliance
- IP 54 Protection to EN 60529
- IP 54 Protection to IEC 60529
Technical Specifications
- Refer to manufacturer documentation for complete technical specifications.
Typical Applications
- Enclosure Cell Partitioning
- Frame-Based Enclosure Systems
- Frequency Converter Installations
- Heat Dissipation Compartmentalization
- Panel Building and Enclosure Expansion
- Multi-Compartment Cabinet Layouts
Why Rittal?
Rittal builds this divider panel from carbon steel, 1.5 mm with a zinc-plated finish and an IP 54 protection rating to EN 60529 and IEC 60529, giving panel builders a dependable way to shield individual enclosure cells. The symmetrical frame-system design adds installation flexibility for professional enclosure work, letting the same divider panel serve at the front or rear of the enclosure and supporting applications such as concealed frequency converter mounting for heat dissipation. This combination of robust carbon steel construction, corrosion-resistant zinc plating, and IP 54 protection makes it a reliable choice for organized, code-conscious enclosure builds.
Manufacturer Resources
Rittal Product Catalog
Product Specs
- Product Type:
- Box Divider
- Product Finish:
- Zinc-Plated
- Standards:
- IP54
- Product Material:
- Carbon Steel
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Product Subgroup:
- Enclosure Accessories
Rittal 8609050 – Frequently Asked Questions
1) What does the Rittal 8609050 divider panel actually do inside an enclosure?
It partitions a frame-based Rittal enclosure so individual cells are shielded from each other. Panel builders use it to keep adjacent compartments separated and protected while equipment is installed, serviced, or added later. It is a sheet partition, not an enclosure door or a mounting plate for components.
2) Can the Rittal 8609050 be mounted at the back of the enclosure instead of the front?
Yes. The frame system is symmetrical, so the same divider panel installs at the rear as well as the front. That is what makes the rear frequency converter trick possible: mount the converter with its cooling unit facing outward for heat dissipation, with the panel keeping it protected and concealed behind a cover.
3) What ingress protection rating does the Rittal 8609050 divider panel carry?
IP 54, rated to both EN 60529 and IEC 60529. That means protection against dust ingress and against splashing water from any direction, which is what you want when one cell is being opened for service while the neighbouring cell stays live and populated.
4) Do I need to order separate mounting hardware with the Rittal 8609050?
No. Assembly components are included in the supply, so the fixings needed to mount the panel come with it. What you do need is a Rittal frame-based enclosure system to mount it into, since the panel relies on the frame's mounting levels.
5) What material and thickness is the Rittal 8609050 divider panel?
Carbon steel at 1.5 mm, finished zinc-plated. The 1.5 mm gauge gives a rigid partition that will not oil-can when you are working against it, and the zinc plating handles corrosion in typical enclosure environments. It is not a stainless or powder-coated part.
6) Does fitting this divider panel use up the mounting space I need for other components?
It mounts on the outer mounting level, and the inner level stays free. So you keep the inner level available for further build-out or later expansion rather than sacrificing it to the partition.
7) What is the Rittal part number for this carbon steel divider panel?
Rittal 8609050. That is the manufacturer part number to quote when specifying the carbon steel, zinc-plated, IP 54 divider panel for a frame-based enclosure.
