Rittal 86120 TS System Chassis, 17 x 73 mm Carbon Steel

Rittal 86120 TS System Chassis, 17 x 73 mm Carbon Steel

(No reviews yet) Write a Review

Model: 8612040

In Stock (leaves warehouse same day if ordered before 3pm ET)

$182.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal 86120 TS System Chassis, 17 x 73 mm Carbon Steel

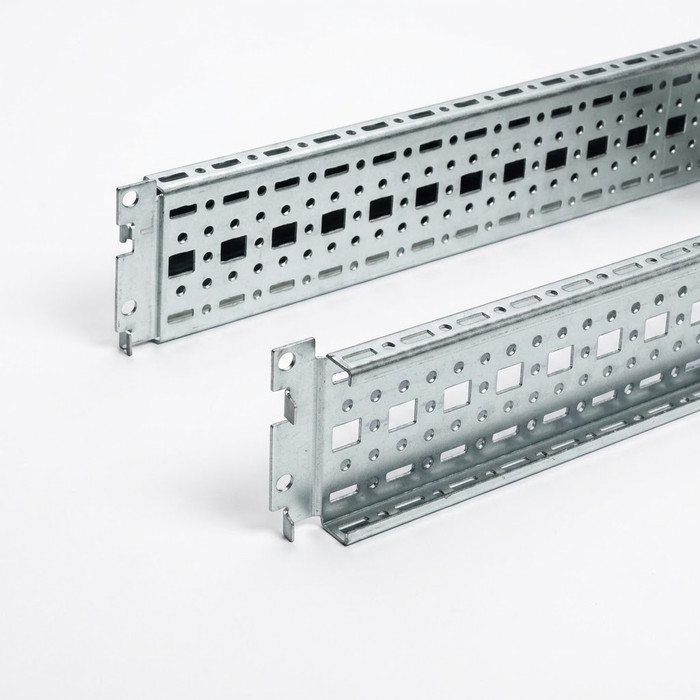

The Rittal 86120 TS System Chassis is a 17 x 73 mm profile carbon steel chassis engineered for universal skeleton structures and partial assembly within TS system enclosure builds, available in chassis lengths from 400 mm to 900 mm to fit your build. Simply locate the chassis into the existing punchings and secure it in place, ideal for the inner mounting level or for mounting directly on cabinet doors up to 500 mm wide. Finished in zinc-plated carbon steel, each chassis ships complete with assembly screws so panel builders can complete installation without sourcing separate hardware.

Key Features

  • Chassis Length: Available in 400 mm and 900 mm lengths with a 17 x 73 mm profile for a precise fit within the TS system framework.
  • Durable Construction: Carbon steel construction provides strength and rigidity for skeleton structures and partial assemblies.
  • Finish: Zinc-plated surface finish adds corrosion resistance for long-term reliability.
  • Mounting Version: Designed for the inner mounting level and for mounting on doors.
  • Door Compatibility: Suitable for door widths up to 500 mm.
  • Simple Installation: Locates into existing punchings and secures in place; a mounting rail for interior installation is required when installing in TP.
  • Supply Includes: Assembly screws included for complete, ready-to-install hardware.

Technical Specifications

  • Chassis Length: 400 mm and 900 mm.
  • Profile Dimensions: 17 x 73 mm.
  • Version: For the inner mounting level and for mounting on doors.
  • Material: Carbon steel.
  • Mounting Tip: The rail for interior installation is required when installing in TP.
  • Surface Finish: Zinc-plated.
  • Suitable for Door Width: 500 mm.
  • Packaging Unit: 4 pc(s).
  • Weight/Packaging Unit: 1.748 kg.

Typical Applications

  • Universal Skeleton Structures
  • Partial Enclosure Assembly
  • TS System Inner Mounting Level Installations
  • Cabinet Door Mounting
  • Panel Building and Enclosure Fabrication

Why Rittal?

Rittal builds the TS System Chassis from durable, zinc-plated carbon steel to withstand the demands of industrial and commercial enclosure assembly. Designed to locate directly into existing punchings and secure with the included assembly screws, this chassis delivers a straightforward way to build out TS system skeleton structures and door-mounted components for professional panel building work. Offered in 400 mm and 900 mm lengths with a precise 17 x 73 mm profile and 500 mm door-width compatibility, it's a dependable choice for engineers standardizing on the Rittal TS platform.
