RND EXT RING DIA4-1/8IN HUB1/2IN AL
Manufacturer Resources
Product Specs
- Product Group:
- Electrical Boxes
- Product Type:
- Outlet box
- Product type2:
- Outlet box
- Selling Unit Of Measure:
- each
- Volume:
- 16.5 in³
- Department:
- Electrical
- Product Subgroup:
- Outlet Boxes
- Product Color:
- Silver
- Product Material:
- Aluminum
Red Dot S130E – Frequently Asked Questions

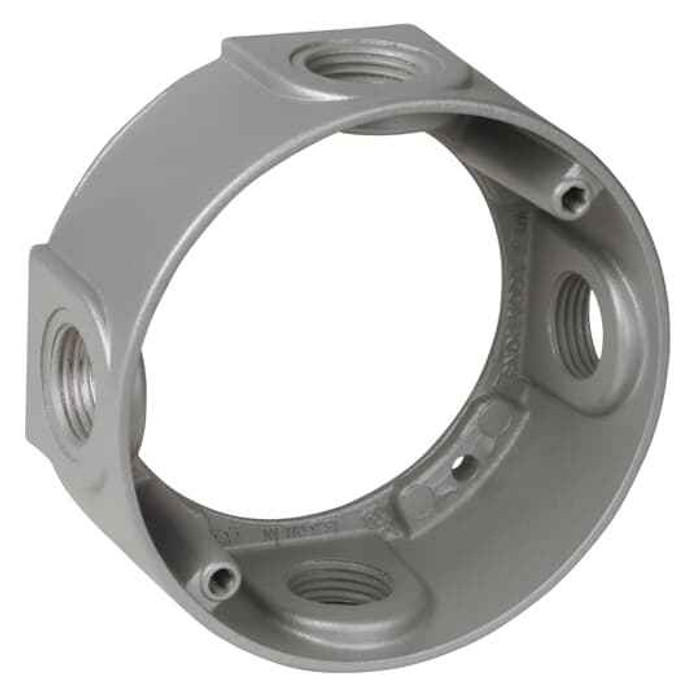

1) Will the Red Dot S130E extension ring fit a 4-inch round weatherproof box?
The S130E is a round extension ring measuring 4-1/8 inches in diameter, which is the standard footprint for 4-inch round outlet boxes and covers. It bolts on between the existing box and the cover to add depth and a side hub, so the mounting holes line up with a standard 4 inch round box.
2) Is the Red Dot S130E extension ring aluminum or steel?
Aluminum, in a silver finish. Die-cast aluminum is what you want on exterior and damp-location runs where a painted steel ring would rust at the threads, and it pairs with aluminum weatherproof boxes and covers without the dissimilar-metal issue you get mixing steel and aluminum outdoors.
3) Do I need an extension ring or a deeper weatherproof box?
An extension ring like the S130E is the retrofit answer: it adds 16.5 cubic inches and a 1/2 inch hub to a box that is already mounted, so you do not have to pull the existing box off the wall or re-drill anchors. If you are roughing in new work and already know you need the depth and the extra raceway entries, start with a deeper box instead and skip the extra gasketed joint.
4) Is the Red Dot S130E sold individually or in a case?
Sold each, by the single ring, under manufacturer part number S130E. Order the quantity of openings you are extending; covers, gaskets, and the device itself are separate items.
