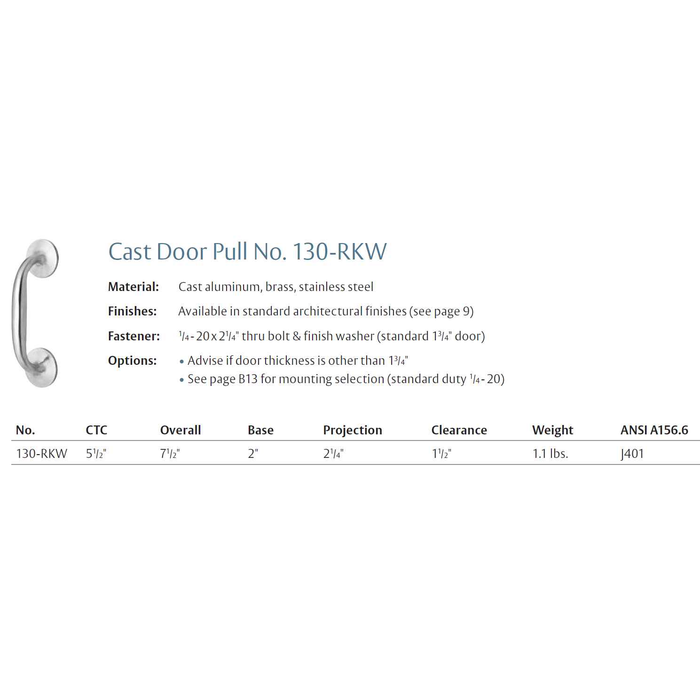

Rockwood 130 Cast Door Pull, 2" Base

The Rockwood 130 cast pull ships set up for a standard 1-3/4 inch door: 1/4-20 x 2-1/4 inch thru bolts with finish washers. Thru-bolting means the fasteners pass all the way through the door, so the pull is anchored in the door itself rather than in the skin. If your door is anything other than 1-3/4 inches, the bolt length has to change, so specify the actual thickness when you order.

The 130 is certified to ANSI A156.6, type J401. A156.6 is the BHMA standard covering architectural door trim, and the J-number identifies the specific pull type within it, which is what a spec writer or an institutional buyer needs to see on a submittal. It is a commercial-duty product, used across institutional, office, retail, educational, detention, hotel and restaurant work.

ADA compliance is not something stated for the 130, so if your project is being reviewed against it, specify a pull that carries the claim. The Ives 8145EZHD, a 45 degree offset pull with heavy duty mounting hardware, is listed as ADA compliant in the EZ Series. Use that one where the drawing calls for it.

The Ives 8102HD is a heavy duty straight door pull built on 3/4 inch round bar with 1-1/2 inch clearance, which matches the 1-1/2 inch clearance the Rockwood 130 provides. The difference is in the form: the 130 is a cast pull on a 2 inch base with 5-1/2 inch center-to-center mounting and 2-1/4 inch projection, while the 8102HD is a bar-style straight pull. If the hand clearance behind the grip is what drives the selection on an institutional opening, the two land in the same place; if the existing mounting holes are drilled 5-1/2 inch on center, the cast 130 is the one that lands on them.

The Ives 8145EZHD is a 45 degree offset door pull from the EZ series, supplied with heavy duty mounting hardware and described as ADA compliant. The Rockwood 130 is a cast pull with a 2 inch base, 5-1/2 inch center-to-center and 2-1/4 inch projection, built to ANSI A156.6 J401. Where the accessibility reviewer is calling out the pull itself, the 8145EZHD offset is the one to quote; where the submittal is calling for an A156.6 J401 pull, the 130 answers that line directly.

The Rockwood 130 is a straight cast pull on a 2 inch base with 5-1/2 inch center-to-center spacing, 2-1/4 inch projection and 1-1/2 inch clearance. The Ives 8169 is a C style offset solid pull of 1 inch diameter with heavy duty mounting, and the ABH AB3310 is an offset flat end pull for surface mount. An offset pull carries the grip away from the mounting line, so it drills to a different pattern than the 130 and changes how far the grip sits off the face of the door. On a retrofit where the existing holes are 5-1/2 inch on center, the offset models are not a drop-in for the 130.

The Rockwood 130 is a short cast pull with 5-1/2 inch center-to-center spacing, which suits a door where the hand grabs at one point. For a long vertical grip on a glass entry, the Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull set and the Deltana SSPORBB24 is a 24 inch back-to-back round offset set; the Deltana SSP1210 is a 12 inch contemporary pull for single side mounting. Back-to-back sets pull through both faces of the door, so confirm the door thickness before ordering one in place of the single-side 130.

The Rockwood 130 ships with a 1/4-20 x 2-1/4 inch thru bolt and finish washer sized for a standard 1-3/4 inch door, and Rockwood asks to be advised when the door thickness is anything other than 1-3/4 inch so the fastener can be matched. The Deltana OHP620 off-set handle pull is furnished as a back-to-back set for a door thickness range of 1-1/8 inch to 1-3/8 inch. On a thinner door, the OHP620 covers that range as supplied; the 130 needs the fastener length called out with the order.

Clearance behind the grip is 1-1/2 inches, with an overall projection of 2-1/4 inches off the door face. That 1-1/2 inches is the working number: it is the gap your fingers go into. With a gloved hand or in a facility where staff pull with a full grip, check it against what you have now, since a pull with less clearance feels tight and one with more sticks further into a corridor.

Cast construction, offered in aluminum, brass, or stainless steel depending on the material specified. The finish sold is 626 satin chrome, the standard satin chrome used on most commercial openings, so it matches the lever trim, push plates, and closers already running in a typical institutional building.

Two different jobs. The 130 is a cast pull with a 2 inch base and 5-1/2 inch centers, a short grab-style pull for a door where someone takes it with one hand. A straight bar pull such as the Ives 8102HD, 3/4 inch round bar with the same 1-1/2 inch clearance, or the Ives 8103HD in 1 inch round with through-bolt mounting, gives a longer continuous grip and is what you want on wide or heavy doors where people grab at varying heights. For an offset grip, the Ives 8169 C-style is 1 inch diameter with heavy duty mounting.

The 130 comes with 1/4-20 x 2-1/4 inch thru bolts for a 1-3/4 inch door, which is single-side mounting with the bolt heads capped by finish washers on the opposite face. For a matched pull on both faces, order a set built for it, such as the Deltana OHP620 off-set handle back-to-back set, or the Deltana SSPOBB24 and SSPORBB24 24 inch back-to-back pulls in flat and round offset. Note the OHP620 is rated for 1-1/8 to 1-3/8 inch doors, so it is not a fit on a standard 1-3/4 inch commercial door.

No. The Rockwood 130 is a cast pull handle you grip, with a 2 inch base, 2-1/4 inch projection and 1-1/2 inch clearance behind the grip. The Trimco 1001-1 is a heavy duty push plate measuring 3 inch by 12 inch, and the Trimco 1041 is a half-round push plate at 8 inch by 16 inch, both flat protective plates with no grip. The Trimco 1070 series classic push/pull plates at 3-1/2 inch by 15 inch combine a plate with an integral pull. On a push-pull pair, the 130 handles the pull side and a push plate handles the opposite face.

They mount the same way but they are not the same part. The ABH AB7200 is a solid stainless steel flat end pull of 7/8 inch diameter with through-bolt mounting. The Rockwood 130 is a cast pull available in cast aluminum, brass and stainless steel, on a 2 inch base with 5-1/2 inch center-to-center, and ships with a 1/4-20 x 2-1/4 inch thru bolt and finish washer for a standard 1-3/4 inch door. If the specification calls for a solid stainless bar section, the AB7200 is that; if it calls for a cast pull with a base, the 130 is that.

The ABH AB3330 series offset round end pull is offered with custom length options. The straight-run alternatives are the ABH AB3300 straight flat end pull at 1.00 inch diameter and the Ives 8103HD heavy duty straight pull, 1 inch round with through bolt mounting. The Rockwood 130 is a fixed cast pull at 5-1/2 inch center-to-center with 2-1/4 inch projection, so where a drawing calls out a nonstandard grip length, the AB3330 is the series that takes the dimension.
