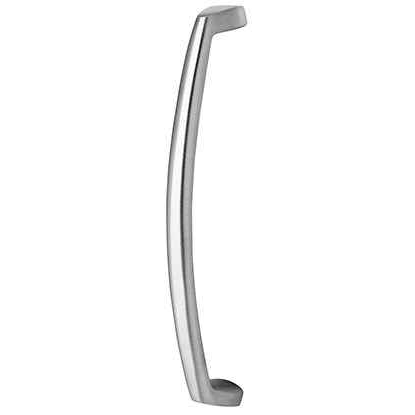

Rockwood 137L Arch Cast Door Pull , 10" CTC

Yes. The 137L ships with 1/4-20 x 2-1/4 inch thru bolts and finish washers sized for a standard 1-3/4 inch door. Thicker or thinner doors need longer or shorter fasteners, so state your actual door thickness when you order.

The 137L is drilled 10 inches center to center. If the pull coming off the door is also a 10 inch CTC pull, the existing thru-bolt holes line up and it is a straight swap. Any other spacing means new holes.

Projection is 2-1/2 inches off the face of the door, with 1-3/4 inches of clearance between the grip and the door. That matters where the door swings past a wall return or a side light frame, and it is the number to check against a gloved hand on a heavily used opening.

The 137L is listed to ANSI A156.6, type J401. That is the auxiliary architectural door trim standard, so if the drawing calls for a J401 pull it answers the spec directly.

The Ives 8169 is a C style offset solid door pull with a 1 inch diameter and heavy duty mounting, which puts it in the same offset-pull role as the Rockwood 137L arch cast pull. The 137L is cast with a 10 inch center-to-center and a 2-1/2 inch projection, so confirm the 8169 hole spacing you order matches the prep already in the door before swapping one for the other.

Look at the Ives 8145EZHD, a 45 degree offset door pull with heavy duty mounting hardware described as ADA compliant in the EZ series. The Rockwood 137L is an arch cast pull built to ANSI A156.6, J401 with a 2-1/2 inch projection; where the specification on the drawing calls out ADA language on the pull itself, the 8145EZHD carries it.

For a straight bar in place of the arch, the Ives 8102HD is a heavy duty straight door pull with a 3/4 inch round bar and 1-1/2 inch clearance, and the Ives 8103HD is a heavy duty straight pull with 1 inch round bar and through bolt mounting. The Rockwood 137L is cast brass at 10 inch center-to-center with 1-3/4 inch clearance, so the 8102HD gives a slightly tighter hand clearance and the 8103HD a heavier bar section.

The Deltana OHP620 off-set handle pull is a back-to-back set with a door thickness range of 1-1/8 inch to 1-3/8 inch, so it is aimed at thinner doors. The Rockwood 137L ships with a 1/4-20 x 2-1/4 inch thru bolt and finish washer for a standard 1-3/4 inch door, which is the case a commercial opening usually presents.

The ABH AB3330 series is an offset round end pull with custom length options, while the AB3300 is a straight flat end pull at 1.00 inch diameter and the AB3310 is an offset flat end pull for surface mount. The Rockwood 137L is fixed at a 10 inch center-to-center with a 2-1/2 inch projection, so where the opening needs a spacing other than 10 inch, the AB3330 is the one that takes a length call-out.

Cast brass, and it is a commercial grade item rather than residential trim. Cast construction (as opposed to bent tube) gives a solid arch section that holds up on institutional openings, offices, schools, hotels and restaurants.

Two finishes are offered: 613 satin bronze oil-rubbed and 626 satin chrome. 626 is the common match for satin chrome or brushed nickel lever trim and closers already on a building; 613 goes with dark bronze storefront and door trim.

The 137L is furnished as a pull with thru-bolt fasteners and finish washers, which is the standard single-side mounting. If you want a matched grip on both faces of the door, a back-to-back product is the one to specify instead, like the Deltana SSPOBB24 or SSPORBB24 offset pulls.

An arch pull like the 137L has a curved cast body with a fixed 10 inch grip spacing and 2-1/2 inch projection, so the shape is part of the look of the opening. If you want a plain round bar grip instead, the Ives 8103HD is a 1 inch round straight pull with through-bolt mounting, and the Ives 8102HD is a 3/4 inch round bar with 1-1/2 inch clearance. A 45 degree offset like the Ives 8145EZHD is the choice where you want the grip angled away from the door face.

The 137L handles the pull side only. For the push face, a flat push plate is the usual mate, such as the Trimco 1001-1 heavy duty push plate at 3 x 12 inches or the 1041 half-round push plate at 8 x 16 inches. The Trimco 1070 Series classic push/pull plates at 3-1/2 x 15 inches are an alternative where you want the pull built into a plate rather than mounted bare on the door.

The standard fastener package is 1/4-20 x 2-1/4 inch thru bolts, cut for 1-3/4 inch doors, so a thinner door needs a different bolt length specified at time of order. If you are working on thinner residential-weight doors, the Deltana OHP620 offset pull set is built for a 1-1/8 to 1-3/8 inch door thickness range.

No. The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inch height in stainless steel, made to sit around a rim cylinder rather than serve as a full-length door pull. The Rockwood 137L is a cast brass arch pull at 10 inch center-to-center with a 2-1/2 inch projection and is not cut for a cylinder.

The ABH AB7200 is a solid stainless steel flat end pull handle, 7/8 inch diameter, with through-bolt mounting. The Rockwood 137L is a cast brass arch pull offered in 613 satin bronze oil-rubbed and 626 satin chrome. Both through-bolt, so the choice is between a stainless bar section and a cast brass arch profile with a brass finish range.

The Deltana SSPOBB24 is a 24 inch back-to-back modern offset door pull and the Deltana SSPORBB24 is a 24 inch back-to-back round offset door pull. Both are far longer than the Rockwood 137L, which is a 10 inch center-to-center arch cast pull, so the 24 inch sets need their own prep rather than reusing 10 inch spacing.

They serve the two sides of the same opening rather than substituting for each other. The Trimco 1001-1 is a heavy duty push plate at 3 inch by 12 inch, which mounts flat on the push side, while the Rockwood 137L is a cast brass arch pull at 10 inch center-to-center with a 2-1/2 inch projection for the pull side. The Trimco 1070 series classic push/pull plates at 3-1/2 inch by 15 inch combine both onto plates if you want the pull integrated into the plate instead.

The Trimco 1035 Ultimate Restroom Pull is a heavy duty pull built specifically for restroom openings, so it is the purpose-made choice there. The Rockwood 137L is a cast brass arch pull to ANSI A156.6, J401 with 1-3/4 inch clearance, a general commercial pull rather than a restroom-specific one.

The Deltana SSP1210 is a 12 inch contemporary pull mounted on a single side, so it does not carry the through-bolt hardware that the Rockwood 137L uses. The 137L ships with a 1/4-20 x 2-1/4 inch thru bolt and finish washer for a 1-3/4 inch door; if the opposite face cannot take a bolt head, the single-side SSP1210 is the direction, otherwise the through-bolted 137L holds better under commercial traffic.

Mounting is standard duty, using 1/4-20 fasteners. On openings where the pull takes abuse (gym entries, loading corridors, detention-adjacent doors), a heavy duty pull such as the Ives 8103HD or the Ives 8169 C style offset, both 1 inch diameter with heavy duty mounting, is the tougher specification.
