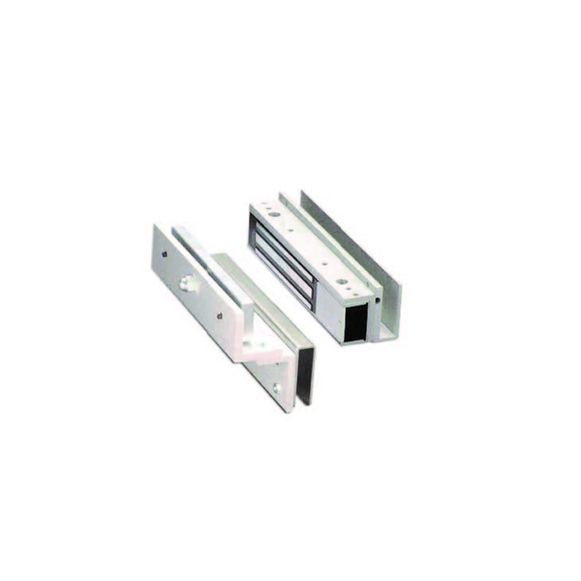

ROFU 21095-INSWING - U-Bracket & Z-Bracket for Full Glass Door for Old Model 8005
- 2-U-Bracket & Z-bracket for full glass door
- Compatible With: 8606-BD
Manufacturer Resources
Product Specs
- Product Group:
- Electronic Access Controls
- Series:
- 8005 Series
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Brackets
- Subcategory:
- Electromagnetic Locks
- Commercial/Residential:
- Commercial
- Electronic:
- No
- Product Finish:
- Satin Aluminum
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
ROFU 21095-INSWINGUS28 – Frequently Asked Questions
1) Will the ROFU 21095-INSWING brackets work on an outswing door?
No. The 21095-INSWING set is the inswing configuration. The Z-bracket geometry is what makes the difference between an inswing and an outswing glass door mount, so ordering this one for an outswing opening puts the armature on the wrong face. Order the outswing version of the 8005 glass door bracket set instead.
2) Does the ROFU 21095-INSWING bracket fit the current 8005 maglock or only the older one?
This set is cut for the old model 8005. ROFU changed the 8005 housing, and the bracket hole pattern went with it, so a current-production 8005 needs the current bracket set. The one compatibility ROFU states for 21095-INSWING is the 8606-BD. If the maglock already on the door is a later 8005, this is the wrong part.
3) I have a ROFU 8606-BD, do these brackets fit it?
Yes, the 8606-BD is the unit ROFU lists as compatible with the 21095-INSWING U-bracket and Z-bracket set.
4) What bracket do I use for a top jamb mounted maglock instead of a U and Z bracket?
A U-bracket and Z-bracket combination like the ROFU 21095-INSWING is built for a full glass door, where the lock has to reach a glass leaf with no top rail to land on. An opening where the maglock mounts directly to the top jamb takes a jamb mounting bracket instead - Dortronics offers a bracket for mounting 1000 Series maglocks to the top jamb. Decide from the door: glass leaf with no mounting surface calls for the U and Z set, a jamb with a solid surface calls for the top jamb bracket.
5) Why do I need a U-bracket at all on an all-glass door?
An all-glass leaf gives you nothing to drill into. The U-bracket clamps around the top edge of the glass and becomes the mounting surface for the armature; the Z-bracket then carries the magnet down from the header so the two faces meet when an inswing door closes. On a door with an aluminum top rail you'd typically skip the U-bracket and fasten the armature to the rail directly.
6) Does the ROFU 21095-INSWING kit include the magnetic lock itself?
No, it's brackets only: two U-brackets and a Z-bracket. The 8005 maglock, its power supply, and the release device are all separate orders. If you're replacing damaged mounting hardware on an existing old-model 8005 glass door install, this is the part you want on its own.
7) Is a header mounting angle bracket the same thing as a U and Z bracket for a glass door?
No. The Dortronics 1100 Series header mounting angle bracket is an L bracket measuring 8-1/4 inches, used to bring the lock body down off the header. The ROFU 21095-INSWING is a two piece set - a U-bracket and a Z-bracket - for a full glass door working with the old model 8005. They solve different halves of the problem: the angle bracket positions the lock at the header, the U and Z set gives the armature a way to attach to a glass leaf.
8) What finish do the ROFU 8005 glass door brackets come in?
Satin aluminum, which is the finish that matches most storefront and glass door framing, so the brackets read as part of the header rather than an add-on. There's one configuration on the inswing kit, 21095-INSWINGUS28, so there's no finish selection to make when ordering.
9) Is this a commercial-duty maglock bracket or something for a house?
Commercial. ROFU builds the 8005 bracket set for storefront and full glass entry doors, which is a commercial glazing condition; it's not a residential product.
