ROFU 9300 Series

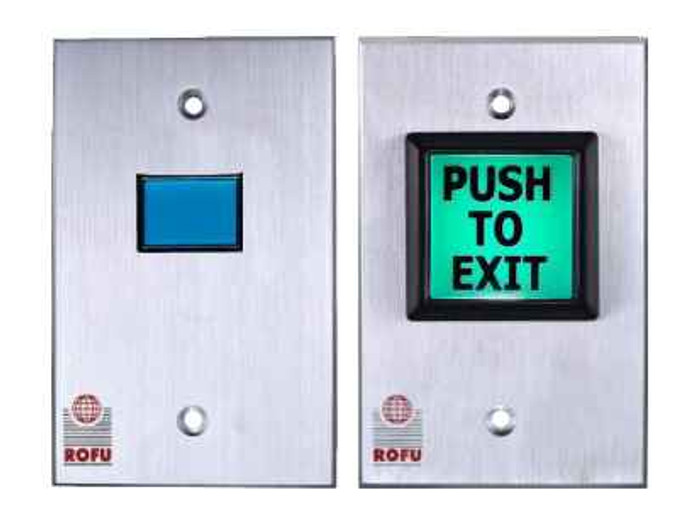

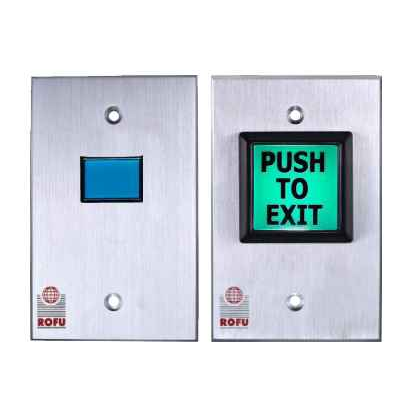

ROFU 9300 DPDT Blue Single Push Button, Momentary, 0.5A/250VAC
9300 REX switches are blue colored DPDT push buttons with durable and tamper-resistant 1/4" thick aluminum cover plates. All are supplied with 2 snakes eyes security screws and wrench
Standard Features
- Standard plate (4-3/4" x 3" x 1/4")
- Narrow plate (4-3/4" x 1-5/8" x 1/4")
- UL Recognized Components
- Blue Colored Push Button
- Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)
Optional Features
- Time Delay: Electronic Time Delay adjustable relocking time 1-30 seconds
- LED Indicator for On/Off Position (specify per optional parts below)
- Optional Push Button Colors: (please specify) Red for MOM, or Red, Orange and Green for MAIN
Manufacturer Resources
Product Specs
- Product Group:
- Electronic Access Controls
- Series:
- 9300 Series
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Push Button
- Subcategory:
- Key Switches
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
ROFU 9300 X 9979 US28 – Frequently Asked Questions
1) Can the ROFU 9300 request-to-exit button switch a 250VAC circuit, or is it low voltage only?
The 9300 is rated 0.5A at 250VAC and the contacts are DPDT, so it will switch a line-voltage circuit within that rating as well as low-voltage door control. DPDT gives you two independent sets of transfer contacts, which is what you want when one button has to both drop a mag lock and signal an alarm panel or shunt at the same time.
2) Is the ROFU 9300 a momentary button or does it latch on?
Momentary. The blue 9300 button makes contact only while it is pressed and returns on release, which is the normal request-to-exit behavior for releasing a mag lock or electric strike for the length of the press. If you need a button that stays in position, that is a maintained (MAIN) function, not this one.
3) How do I keep people from unscrewing a ROFU exit button off the wall?
Each 9300 ships with two snake eyes security screws and the matching wrench, and the cover plate is 1/4 inch thick aluminum. Snake eyes heads cannot be turned with a standard screwdriver or hex key, so the plate stays put in a corridor, lobby, or any public-side location. Keep the wrench, it is the only thing that will get the plate back off.
4) What finish choices are there on the ROFU 9300 push button plate?
Two finishes: satin aluminum (US28) and dark anodized bronze (US40). US28 matches clear anodized aluminum storefront and most commercial door frames; US40 is for dark bronze anodized entrances. Pick the one that matches the frame the plate mounts to, since the plate sits on the frame or wall beside the door rather than on the door itself.
5) Can a ROFU 9300 exit button hold the door unlocked for a few seconds after it is pressed?
Not on its own, but an electronic time delay is an option on the 9300, with relocking time adjustable from 1 to 30 seconds. That is what you specify when someone needs time to get through the opening after the press instead of the lock dropping back the moment the button releases. It has to be called out on the order, it is not standard.
6) What do I have to specify when ordering a ROFU 9300 push button?
Finish is required: US28 aluminum or US40 dark anodized bronze. Everything else is optional and has to be called out or you get the standard blue momentary button: electronic time delay (1 to 30 seconds), an LED indicator for on/off position, and alternate button colors. Red is the alternate for momentary; red, orange and green are the alternates on the maintained version.
7) What is an alternative to the ROFU 9300 if I want a shrouded push button that resists accidental presses?
The Detex PB-2100 Series push button control comes with a shroud and Form C terminals, which is the one to look at when the button sits somewhere a passerby or a cart could knock it. Form C is a transfer contact set, same idea as the 9300's DPDT in that you get both a normally open and a normally closed path. The ROFU 9300 has a flat 1/4 inch aluminum plate with no shroud.
8) Does the ROFU 9300 push button carry any UL listing?
The 9300 series uses UL Recognized Components. That is a component-level recognition covering the parts inside the button, not a listing of a complete assembly, so treat it as a component credential when the specifier asks.
9) Why would I use a blue push button instead of red for a request-to-exit station?
Color on the 9300 is a convention, not a function change; the blue button and a red one behave the same electrically. Blue is commonly used for a general door release so it is not mistaken for an emergency or fire release, which is typically red or green. If the site standard calls for red on momentary stations, red is available on the 9300 as a specified option.
