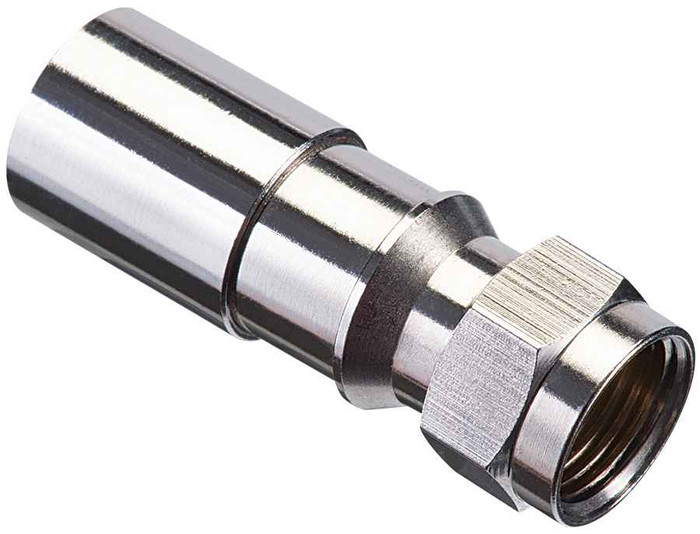

IDEAL Industries 92-656 RTQ™ XR™ RG-6 F Compression Connector -100 pk

Features

• Industry standard 21mm compressed length – works with non-IDEAL compression tools
• All brass, with nickel plated bodies
• 7/16” nut diameter with 3/8-32 thread
• Designed for use in cable and satellite TV installations
• Designed for optimal performance on 75Ω coaxial cables
• 2) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut.
• RTQ™ XR™ design allows Regular/Tri/Quad shield and plenum cables to work in a single connector – no need to carry cable specific connectors
• WeatherProof™ - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use
• 3) Place connector in IDEAL compression tool with standard F compression length setting and terminate.
• 4) During termination, the body will compress(get shorter) and permanently secure the coax inside of the connector.
• Accepts RG-6/ RG-6 Quad/ RG-6 Plenum/ RG-6 Plenum Quad coax cables
• >40 pounds cable retention on all models
• Accepts RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Plenum Quad coax cables
• 1) Prepare RG-6 coax with a 1/4” x 1/4” strip, fold back the braiding. For RG-6 Quad, remove the outer foil layer and fold back both layers of braiding.
• 5) Attach connector to device.
