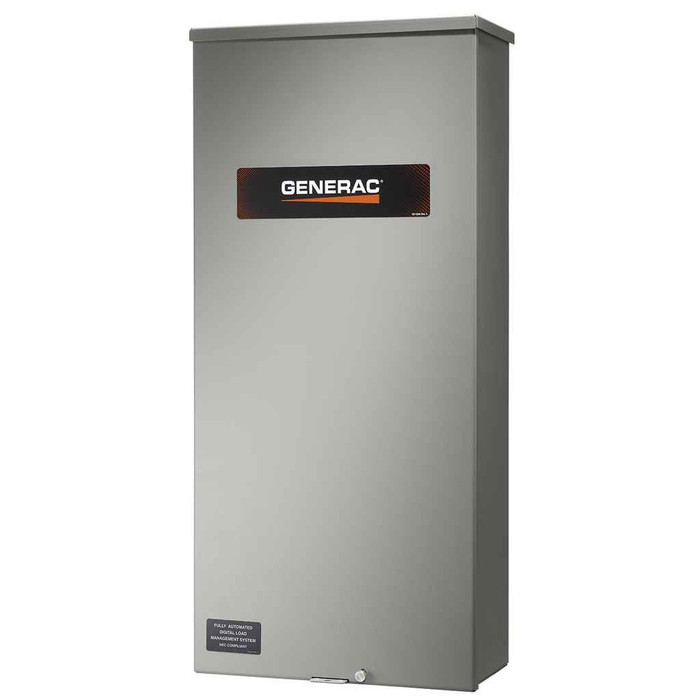

GENERAC RXSC200A3 RXSC200A3 - Smart Switch 200 Amp 120/240 1Ø NEMA 3R CUL

GENERAC RXSC200A3 RXSC200A3 - Smart Switch 200 Amp 120/240 1Ø NEMA 3R CUL

(No reviews yet) Write a Review

Model: RXSC200A3
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,362.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
RXSC200A3 - Smart Switch 200 Amp 120/240 1Ø NEMA 3R CUL

  • Certifications and Standards

    • UL Listed

  • Features

    • Cycles power on and off as needed for different appliances
    • When used in tandem with smart management modules, up to 8 more loads can be managed as well, providing the most installation efficient power management options available
    • Switch is covered by a 5 year limited warranty
    • Heavy duty Generac contactor is a UL recognized device, designed for years of service, the controller at the generator handles all the timing, sensing, exercising functions and transfer commands
    • Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware
    • Smart Switch 200 Amp 1Ø NEMA 3R CUL
    • Generac automatic transfer switches are housed in an aluminum NEMA/UL type 3R enclosure, with electrostatically applied and baked powder paint
    • Single-phase, 120/240-volt; UL listed transfer switch

Manufacturer Resources

Product Specs

Amperage:
200 A
Assembled Weight:
20 lbs
Color Finish:
grey
Country Of Origin:
United States
Installation Hardware Included:
transfer switch
Installation Instructions Included:
Yes
Manufacturer Warranty:
5 year limited
Maximum Generator Input:
22000 W
Overall Depth:
9 in
Overall Height:
21 in
Overall Width:
16 in
Restrictions:
No
Department:
Electrical
Product Group:
Power Distribution
Product Subgroup:
Transfer Switch
Product Voltage:
120 V
Product Material:
aluminum
Product Weight:
20 lbs

Generac RXSC200A3 – Frequently Asked Questions

1) Will the Generac RXSC200A3 smart switch handle a 200 amp single-phase residential service at 120/240V?
Yes. The RXSC200A3 is a 200 amp, single-phase 120/240 volt automatic transfer switch, so it matches a standard 200 amp residential or light commercial service. It is UL listed.
2) What size generator can I connect to the Generac RXSC200A3 transfer switch?
The switch accepts a maximum generator input of 22,000 watts, so it covers air-cooled standby units up to 22 kW. Anything larger needs a higher-rated switch.
3) Can the Generac RXSC200A3 be mounted outside next to the generator?
Yes. The enclosure is aluminum, NEMA/UL type 3R with electrostatically applied and baked powder paint in grey, which is rated for outdoor rain-tight service. It measures 21 inches high by 16 inches wide by 9 inches deep, so plan wall clearance accordingly.
4) Do I need a separate load shed module to run two air conditioners on a Generac smart switch?
Not for up to four. Using digital power management, the RXSC200A3 manages up to four individual 24 VAC controlled HVAC loads with no additional hardware. Beyond that, adding Generac smart management modules lets you manage up to eight more loads.
5) Does the RXSC200A3 transfer switch have its own controller and exercise timer?
No, and that is by design. The heavy duty Generac contactor inside is a UL recognized device; all timing, utility sensing, weekly exercise and transfer commands are handled by the controller at the generator. So it only works as part of a Generac standby system, not as a standalone switch behind any brand of generator.
6) What exactly comes in the box with the RXSC200A3?
The transfer switch itself with its mounting hardware and installation instructions. Conduit, conductors, breakers and any smart management modules for additional loads are separate.
7) What part number do I order for a Generac 200 amp NEMA 3R smart transfer switch?
Order Generac RXSC200A3. That is the manufacturer part number for the 200 amp, 120/240V single-phase NEMA 3R smart switch, built in the United States.
8) Is this a service-entrance rated switch or does it go downstream of my main panel?
The RXSC200A3 is a 200 amp whole-house style automatic transfer switch that cycles power on and off as needed for different appliances through load management. Size and wire it as a 200 amp, 120/240V single-phase device; the unit ships with installation instructions.
9) How much does the Generac RXSC200A3 weigh for a one-man wall mount?
20 pounds assembled, so one electrician can set it on a wall bracket without help. The aluminum enclosure is what keeps it light for a 200 amp unit.
