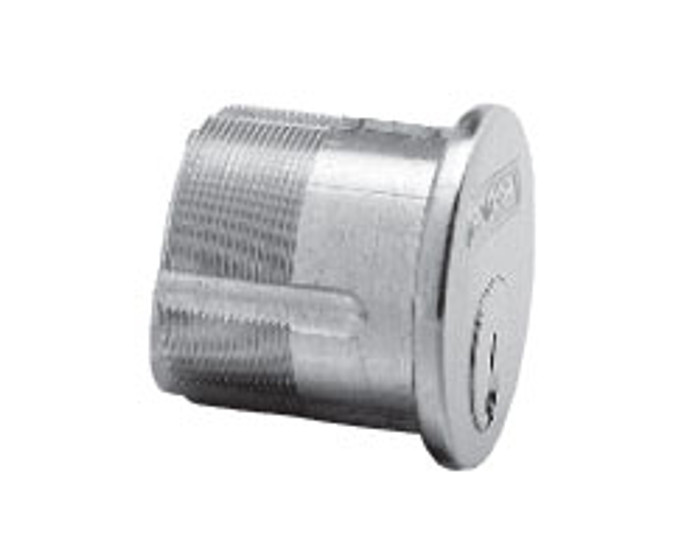

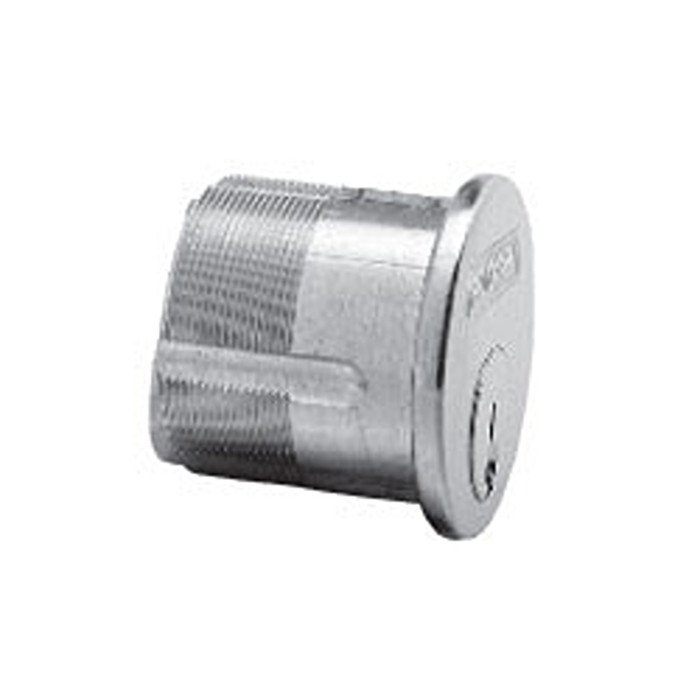

Sargent 41 1-1/8" Mortise Cylinder with Cam - 6-Pin Solid Brass Construction

(No reviews yet) Write a Review

Model: 41-HB-10B
From the Conventional Key System Collection
$139.43
$43.29
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$139.43
$43.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 41 Series 1-1/8" Mortise Cylinder with Cam - 6-Pin Solid Brass

Professional Mortise Cylinder Solution for Commercial Applications

The Sargent 41 Series mortise cylinder delivers reliable security with 1-1/8" length and solid brass construction. This 6-pin conventional mortise cylinder features a 1-5/32" body diameter and 1-11/32" face diameter, designed for compatibility with 7800/8200 mortise locks, KP8200 keypad systems, 4870 deadlocks, and 20, 30, 80, and 90 Series exit devices. BHMA A156.5 compliant for professional-grade performance in commercial installations.

Professional Features & Benefits

  • Precise Dimensions: 1-1/8" cylinder length with 1-5/32" body diameter and 1-11/32" face diameter for exact mortise lock compatibility.
  • Solid Brass Construction: Durable solid brass material provides exceptional longevity and corrosion resistance for demanding commercial applications.
  • 6-Pin Security: Conventional 6-pin tumbler design offers reliable keying options with 1 bitted configuration for consistent operation.
  • Universal Compatibility: Works with 7800/8200 mortise locks, KP8200 keypad systems, 4870 deadlocks, and 20, 30, 80, and 90 Series exit devices for versatile installation options.
  • BHMA Compliance: Meets BHMA A156.5 standards ensuring professional-grade quality and performance specifications.
  • Complete Assembly: Furnished standard with No. 97 rosette and compression spring for ready installation without additional components.
  • Professional Specifications: 1/8" cylinder head thickness provides proper engagement with mortise lock mechanisms for reliable operation.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent mortise cylinder products deliver professional-grade reliability with solid brass construction and BHMA A156.5 compliance for demanding commercial applications. The 6-pin conventional design and precise 1-1/8" dimensions ensure consistent performance across multiple lock series. Engineered for demanding commercial applications where dependable security hardware is essential.

Product Specs

Series:
41 Series
Product Type:
Cylinders
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
Conventional Key System
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent 41-HB-10B – Frequently Asked Questions

1) What is the difference between the standard cam and the 101 cam on a Sargent 41 cylinder?
Cam choice is the one thing that decides whether the cylinder actually drives your lock, and the 41 Series is ordered either with the standard cam or with the 101 cam. The standard cam is what goes into Sargent's own 7800 and 8200 mortise locks and 4870 deadlocks. Pull the old cylinder before you order and match the cam you take out, because two cylinders that look identical from the face will not both retract the lock.
2) Can I get these Sargent cylinders keyed alike so one key runs all the doors?
Yes. Keying is a required selection on the 41 Series cylinder: standard keying, KD keyed different, or KA keyed alike. For a property manager putting one key on a run of units or a maintenance shop, keyed alike is the option that gives every cylinder in the order the same key. Keyed different gives each cylinder its own key, which is what you want on tenant doors. All of them are cut on a conventional 6-pin tumbler.
3) I need a mortise cylinder for a Sargent 8200 lock but mine is longer than 1-1/8 inch. Is this the right one?
No. The 41 Series is a 1-1/8 inch cylinder only, and cylinder length has to match your door thickness and the trim stack. Measure the old cylinder from the face of the rosette to the back of the cam housing before ordering. If it measures more than 1-1/8 inch, you need a longer mortise cylinder in the same keyway and cam, not this one. Too short and the cam sits behind the lock hub; too long and it stands proud of the trim.
4) Does the Sargent 41 cylinder come with the rosette and spring, or do I have to order those separately?
It ships complete. The 41 Series cylinder is furnished standard with a No. 97 rosette and a compression spring, so there is nothing else to buy to set it in the lock. The rosette finish should be selected to match the trim already on the door.
5) What finishes does the Sargent 41 mortise cylinder come in, and will it match my existing lever trim?
Six finishes: 03 bright brass clear coated, 04 satin brass clear coated, 10 satin bronze clear coated, 10B dark oxidized satin bronze oil rubbed, 32 bright stainless steel, and 32D satin stainless steel. On most commercial buildings the trim is 26D chrome or 32D stainless, and 32D is the closest match in this range. If your existing Sargent hardware is oil rubbed bronze, 10B is the one to order.
6) Does the Sargent 41 cylinder meet BHMA standards for a commercial spec?
The 41 Series mortise cylinder is BHMA A156.5 compliant, which is the auxiliary lock and cylinder standard specifiers cite on commercial jobs. Construction is solid brass. It is a commercial-grade part, not a residential one, so it will hold up on a spec that calls out A156.5 cylinders.
7) What are the face and body dimensions of the Sargent 41 mortise cylinder?
Body diameter is 1-5/32 inches, face diameter is 1-11/32 inches, and the cylinder head thickness is 1/8 inch, over a 1-1/8 inch overall length. The 1-11/32 inch face is what sits against the rosette, so if you are reusing an existing collar or escutcheon cutout, that is the number to check against the hole.
