Sargent 10XG64 Time Out Lock G...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$814.00
$471.90
SGT-10XG64

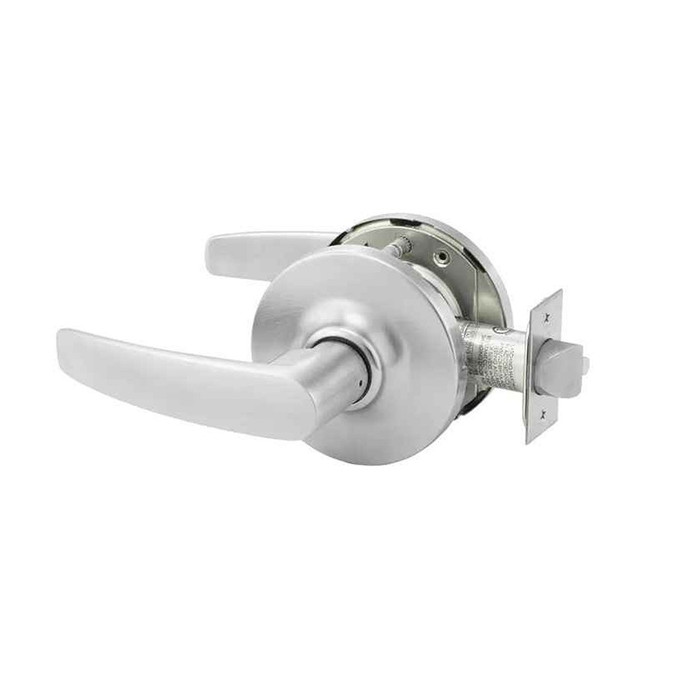

Sargent 10XG64 Time Out Lock Grade 1 Heavy Duty Cylindrical Lock with EcoFlex Technology

(No reviews yet) Write a Review

Model: 10XG64 LB 26D
From the 10X Line Series Collection
$814.00
$471.90
Selected Finish is
Selected Lever is
Selected Roses is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$814.00
$471.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 10X Line Time Out Lock Grade 1 Heavy Duty Cylindrical Lock with EcoFlex Technology

Ultra-High Performance Cylindrical Lock for Maximum Security Applications

The Sargent 10X Line Series Time Out Lock delivers exceptional security performance that exceeds ANSI/BHMA Grade 1 standards by up to 20 times. This non-keyed heavy duty cylindrical lock features innovative EcoFlex technology providing 92% energy savings for electromechanical applications. Engineered for high traffic, high abuse environments with 2 3/4" standard backset and 1 3/4" door thickness compatibility, this lock withstands more than 3,100 in-lb locked lever torque and 1,600 lbs offset lever pull while maintaining reliable operation throughout its entire lifecycle.

Professional Features & Benefits

  • Door Compatibility: Accommodates door thickness from 1 3/8" to 2" with backset options from 2 3/8" to 5" maximum for versatile installation requirements.
  • Extreme Durability Performance: Tested to 20 million cycles (Verification ID: V584148) and withstands more than 100 vertical impacts, exceeding ANSI/BHMA requirements by up to 20 times for unmatched reliability.
  • Superior Security Resistance: Prevents entry against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA requirements) and withstands 1,600 lbs offset lever pull (8x ANSI/BHMA requirements) for maximum vandalism protection.
  • EcoFlex Energy Technology: Provides up to 92% energy savings on all electromechanical functions, ideal for Wave to Open, Request to Exit, or Door Position Switch applications.
  • Heavy-Duty Construction: Cast iron cement case construction with Grade 1 performance standards for exceptional durability in demanding commercial applications.
  • Universal Cylinder Support: Lockbody design supports all cylinder formats from fixed to interchangeable core and integrates with all SARGENT Key Systems for flexible access control.
  • Windstorm Certification: Florida Building Code approved (FL# 2998) with UL-cUL fire rating up to 3 hours and multiple ASTM certifications for demanding environmental conditions.
  • Manufacturer Warranty: 10-year limited warranty with 2-year coverage for electrical components providing long-term protection and confidence.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (1 3/8" to 2"), backset depth (2 3/8" to 5" maximum), and non-handed installation compatibility.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper alignment.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for cylindrical lock installation.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications ensuring proper lockbody positioning.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion while verifying latch retraction performance.
  6. Test device operation to verify proper function including time out lock features and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • High-Security Commercial Office Buildings
  • Educational Facilities and Dormitories
  • Healthcare Institutions and Patient Areas
  • Detention and Correctional Facilities
  • Industrial and Manufacturing Facilities
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties

EcoFlex Energy Technology

The innovative EcoFlex technology represents a significant advancement in sustainability for electrified door openings, delivering up to 92% energy savings compared to traditional electromechanical functions. This technology is ideal for integration with Wave to Open systems, Request to Exit applications, and Door Position Switches while maintaining the superior performance standards of the 10X Line Series.

Why Choose Sargent Quality?

Sargent 10X Line Series locks deliver professional-grade reliability with Grade 1 performance that exceeds ANSI/BHMA standards by up to 20 times, tested to 20 million cycles for exceptional durability. The comprehensive 10-year limited warranty with 2-year electrical component coverage provides added confidence for demanding commercial applications. Engineered for high traffic, high abuse environments where maximum security and dependable performance are essential.

Product Specs

Series:
10X Line Series
Grade:
Grade 1
Keyed Function:
Non-Keyed
Subcategory:
Bored Locksets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Duty Level:
Heavy Duty
Handle Type:
Lever
Lock Function:
Time Out
Product Attribute:
Cylindrical Locks
Product Function:
Time Out
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Collection:
10X Line Series
Department:
Door Hardware

Sargent 10XG64 LB 26D – Frequently Asked Questions

1) What does the Sargent 10XG64 Time Out function actually do on a door?
Time Out is a non-keyed function, so there is no cylinder in the 10XG64 at all. Both levers operate the latch and the lock is controlled by the function itself rather than by a key, which is why it turns up on patient rooms, group rooms and similar openings where staff need control without carrying keys. If you need a keyed function on the opening instead, the 10X Line covers those separately; this one will never accept a key.
2) Is the Sargent 10XG64 fire rated for a 3 hour opening?
UL and cUL fire rated up to 3 hours, and it carries Florida Building Code windstorm approval under FL# 2998 along with ASTM certifications. That combination is what an institutional specifier needs for a rated stair or corridor opening in a hurricane zone.
3) What is the closest Grade 1 heavy duty cylindrical lever equivalent to the Sargent 10XG64 for a non-keyed opening?
For a non-keyed Grade 1 heavy duty cylindrical lever, the Falcon K101 and the Falcon T101 are the closest peers to the Sargent 10XG64. The 10XG64 is a Grade 1 heavy duty non-keyed cylindrical leverset. The Falcon K101 is a Grade 1 heavy duty non-keyed cylindrical passage lock with non-handed levers and a 1-3/8 inch to 2-1/4 inch door thickness range, and the Falcon T101 is a Grade 1 heavy duty cylindrical passage lever with pressure release technology. The difference is function: both Falcons are passage locks, which never secure the door, while the Sargent carries the Time Out function.
4) For a healthcare or institutional door needing a patient-safety function, is a Sargent 10XG64 the right lock or should I look at an asylum function?
If the opening calls specifically for asylum/institution function, the Dexter C1000 Asylum (F87) is a Grade 1 cylindrical lock for doors 1-3/8 inch to 2 inch thick, and the Arrow MK33-BD-CS is an asylum/institution/utility cylindrical lock with a ball knob and a conventional cylinder in Schlage C keyway. The Sargent 10XG64 is a non-keyed Grade 1 heavy duty cylindrical lever with Time Out function, so it is a lever-operated non-keyed device rather than a keyed asylum lock with cylinders on both sides.
5) I need a keyed classroom or storeroom lock, not a Time Out lock - what takes its place?
The Sargent 10XG64 is non-keyed, so it will not serve a keyed opening. For keyed Grade 1, the Dexter C1000 Classroom is a Grade 1 clutching keyed cylindrical lever for doors 1-3/8 inch to 1-3/4 inch, and the Dexter C1000 Classroom Security covers the same door range with classroom security function. For a keyed storeroom in Grade 2, the Cal-Royal AG05 is a storeroom leverset with a deadlocking latchbolt for doors 1-3/8 inch to 1-3/4 inch, and the Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever for doors 1-3/8 inch to 2 inch.
6) My door is only 1-3/8 inch thick - which Grade 1 cylindrical levers cover that?
The Sargent 10XG64 accommodates door thickness from 1-3/8 inch to 2 inch with backsets from 2-3/8 inch to 5 inch. Among Grade 1 peers, the Falcon K101 covers 1-3/8 inch to 2-1/4 inch and the Dexter C1000 Asylum covers 1-3/8 inch to 2 inch. The Corbin Russwin CL3110 starts at 1-3/4 inch, so it will not suit a 1-3/8 inch door.
7) Do I have to specify a hand when ordering the Sargent 10XG64 lock?
No handing to specify. The 10XG64 is non-handed, so one part number covers left and right hand openings and a property manager can stock a single lock for a floor of doors swinging both ways.
8) Is a Grade 1 cylindrical lever lock like the Sargent 10X worth it over a Grade 2 for a high abuse door?
On an abused opening, yes. The 10XG64 is Grade 1 heavy duty, tested to 20 million cycles, holds against more than 3,100 in-lb of locked lever torque and 1,600 lbs of offset lever pull, and takes more than 100 vertical impacts. The lever pull number is the one that matters where people hang off the handle. A Grade 2 lever such as the Hager 2510 or the Falcon B101 is the right call on a low traffic office or closet door where none of that is happening.
9) I need a Grade 1 non-keyed cylindrical lever but not the Time Out function. What else is there?
For a plain passage opening, the Falcon K101 is a Grade 1 heavy duty non-handed passage lock rated 1-3/8 to 2-1/4 inch doors and fire rated, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage lever for 1-3/4 to 2 inch doors, also fire rated. If the door needs no latch at all, the BEST 9K Series 1DT is a Grade 1 heavy duty single dummy trim. None of those give you the Time Out control the 10XG64 does; they are latch or trim functions only.
10) Can the Sargent 10X lockbody take an interchangeable core so it matches our master key system?
The 10X lockbody supports every cylinder format from fixed cylinder through interchangeable core and works with all Sargent key systems. On the 10XG64 specifically that capability is dormant, because the Time Out function is non-keyed and no cylinder goes in it. Choose a keyed 10X function if the opening has to sit in your keying schedule.
11) What is a lighter duty alternative to a Sargent 10XG64 for an interior office door in a low traffic building?
For lower traffic interior doors, the Falcon B101 is a Grade 2 medium duty cylindrical passage lever with a non-handed design, and the Hager 2510 is a Grade 2 passage cylindrical lever with the Withnell design covering doors 1-3/8 inch to 2 inch thick. Both are passage function only. The Sargent 10XG64 is a Grade 1 heavy duty non-keyed cylindrical lever built for the high traffic, high abuse openings described for the 10X Line.
12) If I need an electrified cylindrical lever instead of the Sargent 10XG64, what are the options?
The Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever available in a 12VAC/DC keyed version and in an NZ lever with D rose version, both for doors 1-3/4 inch to 2 inch thick. The Sargent 10XG64 is a non-keyed Grade 1 heavy duty cylindrical lever, and the 10X Line carries EcoFlex technology for electromechanical functions such as Wave to Open, Request to Exit, and Door Position Switch.
13) Is a Grade 1 dummy trim lever a substitute for a Sargent 10XG64 on the inactive leaf?
No. A dummy has no latch and no operating mechanism - it is pull trim only. The BEST 9K Series 1DT is a Grade 1 non-keyed heavy duty single dummy trim cylindrical lever, and the Accentra 455LN Augusta is a Grade 1 heavy duty single dummy cylindrical lever from the 5400 Series. Use one of those on an inactive leaf; use the Sargent 10XG64, a Grade 1 heavy duty cylindrical lock with Time Out function, on the operating leaf.
14) Can I use a residential grade lever like a Kwikset in place of a Sargent 10XG64 on a commercial door?
Those are different classes of hardware. The Kwikset 200BRNL Breton is a Grade 3 passage lever for doors 1-3/8 inch to 1-3/4 inch, and the Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body for the same door range. The Sargent 10XG64 is a Grade 1 heavy duty commercial cylindrical lever tested to 20 million cycles and rated for more than 3,100 in-lb locked lever torque, so on a high traffic commercial opening the Grade 3 levers are not a like-for-like swap.
15) What Grade 1 lever should I use for a restroom or patient room that needs privacy rather than Time Out?
For privacy, the Arrow MK02-TA is a Grade 1 fire rated privacy/bed/bath cylindrical lock with a Tudor knob, non-keyed, for doors 1-3/4 inch to 2 inch. Note the trim: it is a knob, not a lever, so it is not an ADA lever solution. The Sargent 10XG64 is a non-keyed Grade 1 heavy duty cylindrical lever with the Time Out function, offered with B, L and P levers and G or L roses.
16) What lever and rose styles does the Sargent 10XG64 come in?
Three lever designs, B, L and P, on either the G rose or the L rose. Pick the lever and rose that match the other 10X Line openings in the building so the floor reads as one set; the rose choice is what shows most from down the corridor.
17) Can I get the Sargent 10X Time Out lock in black or in oil rubbed bronze?
Fourteen finishes are offered, including BSP black suede powder coat and WSP white suede powder coat, 10B dark oxidized satin bronze oil rubbed, plus 10BE and 10BL bronze variants, 26D satin chrome and 26 bright chrome, 15 satin nickel and 14 bright nickel, 03 bright brass, 04 satin brass, 09 bright bronze, 10 satin bronze and 20D dark statuary bronze. 26D is the usual institutional standard.
18) What is EcoFlex on the Sargent 10X Line and does it apply to a non-keyed Time Out lock?
EcoFlex is Sargent's low draw electromechanical design, giving up to 92 percent energy savings on the electrified functions and intended for Wave to Open, Request to Exit and door position switch integration. It matters when the 10X opening is tied into access control; on a straight mechanical Time Out installation there is nothing to power. Sargent publishes a separate installation instruction for the 10X Line electrified bored lock covering that wiring.
19) Is the Sargent 10XG64 a cast body or a stamped one?
Cast iron cement case construction inside the 10XG64, which is what carries the 3,100 in-lb locked lever torque figure. That is the difference a maintenance shop feels over years on a corridor door, not something visible at install.
20) Where do I find the door prep template for a Sargent 10X Line cylindrical lock?
Sargent publishes installation instructions for the 10X Line cylindrical lockset and a 10X Line parts manual, both covering the bore and prep work. Drill to the template for the backset you ordered, then set the strike to match the frame prep before you hang the lever, because correcting a bore after the fact means a new door.
21) Is a keypad leverset an alternative to a Sargent 10XG64 for controlled access without keys?
Both are non-keyed, but they control the door differently. The Lockey 1150 is a heavy duty mechanical keypad lever set with double combination in passage function for doors 1-1/8 inch to 2 inch, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. Access on those is granted by entering a code. The Sargent 10XG64 is a Grade 1 heavy duty non-keyed cylindrical lever with the Time Out function, operated mechanically at the lever rather than by code entry.
