Sargent 10XG17 Grade 1 Double ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,095.00
$634.80
Sargent Sargent 10X Line Series - Utility/Asylum/Institutional (10XG17) Double Cylinder Heavy Duty Cylindrical Lock, Grade 1 SGT-10XG17

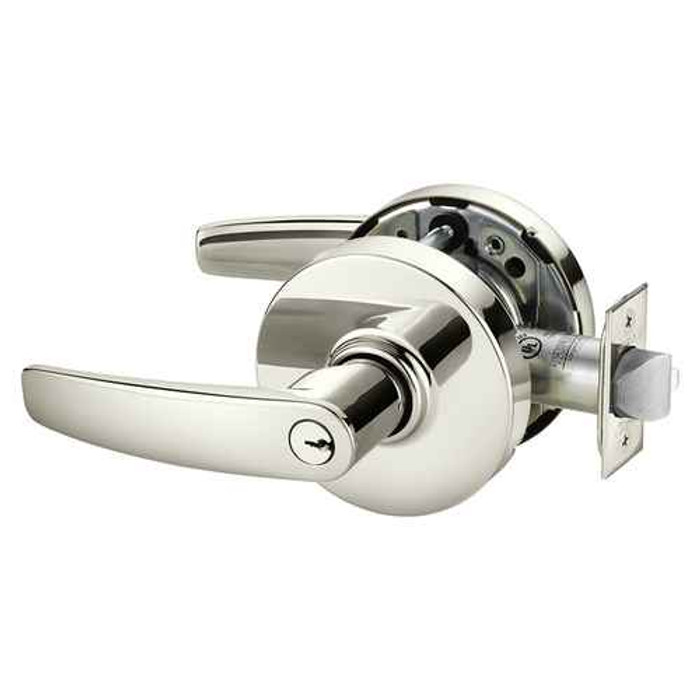

Sargent 10XG17 Grade 1 Double Cylinder Heavy Duty Cylindrical Lock with EcoFlex Technology

(No reviews yet) Write a Review

Model: 10XG17 LB 26D
From the 10X Line Series Collection
$1,095.00
$634.80
Selected Finish is
Selected Lever is
Selected Roses is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,095.00
$634.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 10X Line Grade 1 Double Cylinder Heavy Duty Cylindrical Lock with EcoFlex Technology

Ultra-Heavy Duty Cylindrical Lock for High-Abuse Institutional Applications

The Sargent 10X Line Grade 1 Double Cylinder Heavy Duty Cylindrical Lock delivers exceptional security and durability for high-traffic, high-abuse institutional environments. Engineered to exceed ANSI/BHMA Grade 1 standards by up to 20 times, this lock withstands more than 3,100 in-lb locked lever torque and 1,600 lbs offset lever pull while maintaining reliable operation. Features EcoFlex technology for 92% energy savings in electromechanical applications and supports door thickness from 1 3/8" to 2" with standard 2 3/4" backset.

Professional Features & Benefits

  • Extreme Durability Testing: Completed UL Cycle Above and Beyond test at 20 million cycles (Verification ID: V584148) for unmatched longevity in demanding applications.
  • Superior Vandal Resistance: Prevents entry against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA requirements) and withstands 1,600 lbs offset lever pull (8x requirements).
  • EcoFlex Energy Technology: Provides up to 92% energy savings on all electromechanical functions, ideal for Wave to Open, Request to Exit, or Door Position Switch applications.
  • Heavy-Duty Construction: Ensures latch retraction with 100 lb preload (2x ANSI/BHMA requirements) while maintaining operation in warped doors or doors with latch bind.
  • Impact Resistance: Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements) for maximum protection against abuse.
  • Universal Cylinder Compatibility: Lockbody design supports all cylinder formats from fixed to interchangeable core and all SARGENT Key Systems for flexible integration.
  • Windstorm Certification: Certified to comply with Florida Building Code requirements and UL listings for extreme weather applications.
  • Manufacturer Warranty: 10-year limited warranty with 2-year coverage for electrical components for added confidence and protection.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (1 3/8" to 2"), backset depth (2 3/8" to 5"), and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Institutional and Asylum Facilities
  • Healthcare Institutions
  • Educational Facilities
  • Correctional Facilities
  • Mental Health Facilities
  • High-Traffic Commercial Buildings
  • Government and Municipal Buildings

Anti-Microbial Option

Optional Microshield antimicrobial coating is available for enhanced hygiene protection in healthcare and institutional environments where infection control is critical.

Why Choose Sargent Quality?

Sargent 10X Line cylindrical locks deliver professional-grade reliability with heavy-duty construction rated for 20 million cycles and tested to exceed ANSI/BHMA Grade 1 standards by up to 20 times. Backed by a 10-year limited warranty with 2-year electrical component coverage and certified to multiple industry standards including UL, ADA, and Florida Building Code requirements. Engineered for demanding institutional applications where dependable performance and maximum vandal resistance are essential.

Product Specs

Series:
10X Line Series
Grade:
Grade 1
Keyed Function:
Double Cylinder
Subcategory:
Bored Locksets
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Lock Function:
Asylum/Institution/Utility
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Duty Level:
Heavy Duty
Handle Type:
Lever
Product Attribute:
Cylindrical Locks
Product Function:
Asylum/Institution/Utility
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Collection:
10X Line Series
Department:
Door Hardware

Sargent 10XG17 LB 26D – Frequently Asked Questions

1) What does the Sargent 10XG17 asylum function actually do at the door?
The 10XG17 is a double cylinder asylum/institution/utility lock: it takes a key on both sides and there is no free egress from either side. Both levers stay locked at all times and a key is required to retract the latch from inside or out. That is why it shows up on utility rooms, mechanical spaces and controlled institutional openings, and why it is the wrong choice for any door in a required means of egress where occupants must get out without a key.
2) Can I key this Sargent lock into my existing Sargent master key system?
Yes. The 10X lockbody accepts all cylinder formats from fixed through interchangeable core and works with all Sargent key systems. When ordering you pick the cylinder type (6-pin standard, 60 large format interchangeable core, or 70 small format interchangeable core), the keying (keyed different, keyed alike, or master keyed), and the keyway. LA is the standard keyway, with 40 keyways available including the C, H, L and R families plus R, S and U.
3) I need a Grade 1 lever on the same doors but with free egress. What should I use instead of the double cylinder version?
A double cylinder asylum lock keys both sides and will not let anyone out without a key, so it is the wrong part for an egress door. For a Grade 1 lever with free egress, the Corbin Russwin CL3110 passage/closet is a vandal resistant fire rated option for 1-3/4 to 2 inch doors, and the Falcon K101 is a Grade 1 heavy duty passage lock with non-handed levers, fire rated, covering 1-3/8 to 2-1/4 inch doors. Where the door needs to stay locked outside but free inside, a storeroom function is the one to ask for, not asylum.
4) What is the closest Grade 1 asylum function cylindrical lever lock to the Sargent 10XG17?
The Dexter C1000 Series F87 is the nearest equivalent: it is a Grade 1 cylindrical lock in the Asylum/Institution/Utility function, with a listed door thickness range of 1-3/8 inch to 2 inch. The Sargent 10XG17 is also a Grade 1 cylindrical lever lock in the Asylum/Institution/Utility function, keyed both sides as a double cylinder lock. The Dexter is a single-series offering, while the 10XG17 is ordered with a choice of backset, strike, cylinder format including Sargent large and small format interchangeable core, and keyway.
5) Is there a lighter-duty asylum function lock if a Grade 1 cylindrical lever is more than the opening needs?
The Arrow MK33-BD-CS is an Asylum/Institution/Utility function cylindrical lock rated Grade 2 with a heavy duty designation, supplied with a ball knob and a conventional cylinder in the Schlage C keyway. The Sargent 10XG17 is Grade 1, uses a lever rather than a knob, and takes Sargent key systems through its own keyway list. Choose the Arrow where a knob trim and a Schlage C keyway suit the building; choose the 10XG17 where lever trim and Grade 1 are specified.
6) Which lock should I order for a classroom door instead of the Sargent 10XG17 asylum lock?
The 10XG17 is an Asylum/Institution/Utility function lock, keyed on both sides, which means no free egress by lever from either side. For a classroom opening, the Dexter C1000 classroom function and the Dexter C1000 classroom security function are both Grade 1 cylindrical lever locks with clutching levers for doors 1-3/8 inch to 1-3/4 inch. Cal-Royal AG03 is a Grade 2 classroom lever with a 6-pin Schlage C keyway keyed different on a 2-3/4 inch backset.
7) What do I use for a storeroom door where only the outside needs to be keyed?
The Sargent 10XG17 is a double cylinder asylum function lock, keyed from both sides. Where the inside lever should always retract the latch, a storeroom function is the right choice: the Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for doors 1-3/8 inch to 1-3/4 inch, and the Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever for doors 1-3/8 inch to 2 inch.
8) Do I have to specify handing when I order this Sargent lever lock?
No handing to specify. The 10X cylindrical lock is non-handed, so one part number works on a left or right hand door and you are not stuck with dead stock if the opening turns out opposite to the drawing. Good news for a property manager buying spares for a building.
9) What is EcoFlex on the Sargent 10X and does it apply to a mechanical lock?
EcoFlex cuts power draw by up to 92 percent on the electromechanical versions of the 10X Line, which is what you want on Wave to Open, Request to Exit or Door Position Switch openings where the lock sits energized around the clock. On a straight mechanical 10XG17 there is nothing to power, so it is a line feature rather than something you install. If your opening is access controlled, order the electrified variant and reference the 10X Line Electrified Bored Lock installation instructions for wiring and voltage prep.
10) What else does ZenSupply carry in a Grade 1 asylum function cylindrical lever lock?
The closest equivalent is the Dexter C1000 Series asylum lock (F87), also Grade 1 and also covering 1-3/8 to 2 inch doors. Arrow's MK33-BD-CS is an asylum function lock too, but it is a Grade 2 heavy duty knob set with a ball knob and Schlage C keyway, so it is a different spec and a knob instead of a lever. If the opening needs a lever for ADA-style operation and Grade 1 abuse resistance, the Sargent 10X and the Dexter C1000 are the two to weigh.
11) Can the Sargent 10X be used on a door that has to meet Florida Building Code windstorm requirements?
Yes. The 10X Line is certified to comply with Florida Building Code requirements and carries UL listings for extreme weather applications, so it is usable on windstorm rated openings in coastal jurisdictions. Confirm the full opening assembly, frame, door and hardware together, carries the approval your AHJ wants.
12) If the opening needs an electrified lever instead of a mechanical one, what is comparable to the Sargent 10XG17?
The Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever lock operating on 12V AC/DC for doors 1-3/4 inch to 2 inch, offered with the NZ lever and D rose. The Sargent 10XG17 is a mechanical double cylinder lock; the 10X Line does cover electromechanical functions, and Sargent publishes separate electrified bored lock installation instructions for that line.
13) Can a Kwikset or Baldwin lever be used in place of the Sargent 10XG17 on an institutional door?
They serve different openings. The Kwikset 200BRNL Breton is a Grade 3 passage lever and the 300BRNL Breton is a Grade 3 privacy lever, both for doors 1-3/8 inch to 1-3/4 inch; the Baldwin Estate 5103 is offered in passage, privacy and half dummy functions. None of those is a keyed asylum function. The Sargent 10XG17 is a Grade 1 commercial heavy duty cylindrical lever lock in the Asylum/Institution/Utility function, keyed on both sides.
14) Is a matching dummy lever available to pair with a Grade 1 cylindrical lockset like the Sargent 10XG17 on an inactive leaf?
For an inactive leaf, the BEST 9K Series 1DT is a Grade 1 heavy duty non-keyed single dummy trim cylindrical lever, and the Accentra 455LN Augusta is a Grade 1 heavy duty single dummy cylindrical lever in the 5400 Series. The BEST 7KC Series 1DT is the Grade 2 medium duty single dummy equivalent. The Sargent 10XG17 itself is a keyed working lock, not a dummy trim, and its lever and rose options are B, L and P levers with G or L roses.
15) Would a keypad lever work in place of the Sargent 10XG17 for controlling a utility room?
A keypad lever removes the key from the equation rather than duplicating the 10XG17. The Delaney LP250 is a Grade 2 electronic keypad leverlock, and the Lockey 1150 is a heavy duty mechanical keypad lever set with double combination in passage function for doors 1-1/8 inch to 2 inch. The Sargent 10XG17 is a Grade 1 mechanical lock keyed on both sides that works with all Sargent key systems, so it stays on the building master key rather than a code list.
16) What lever and rose styles come on the Sargent 10X, and what finishes?
Three lever designs (B, L and P) and two rose shapes (G and L rose). Fourteen finishes run from 03 bright brass and 04 satin brass through 10B oil rubbed dark bronze, 20D dark statuary bronze, 26 bright chrome and 26D satin chrome, plus 14 and 15 nickel and BSP black and WSP white suede powder coats. 26D satin chrome is the usual institutional standard, so if you are matching existing doors in a school or hospital that is the one to check against first.
17) Is there an antimicrobial option for healthcare use?
Yes, optional Microshield antimicrobial coating is offered on the 10X Line for healthcare and institutional openings where infection control matters. It is a coating on the lever and trim, not a change to the lock function, so the mechanical specs stay the same.
18) What is a Grade 2 alternative if the budget will not carry Grade 1 heavy duty locks across a building?
Grade 2 cylindrical levers in the set include the Falcon B101 passage and B511CP6D entrance/office, both medium duty, the Hager 2510 passage, 2525 entry and 2580 storeroom for doors 1-3/8 inch to 2 inch, and the Accentra 5301LN Augusta passage in the 5300 Series. The Sargent 10XG17 is Grade 1 heavy duty with a double cylinder asylum function, which those Grade 2 passage and entry locks do not provide.
