Sargent 114/115 Hospital Push/Pull Latch with 5" Backset and 1/2" Bolt Throw

Professional Hospital-Grade Door Hardware Solution

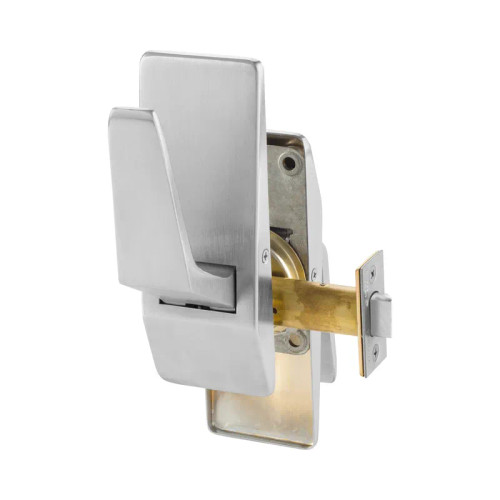

The Sargent 114/115 Series Hospital Latch delivers specialized push/pull operation designed for healthcare environments. This professional-grade latch features a 1/2" bolt throw with 5" backset configuration, accommodating door thicknesses from 1-3/4" to 2-1/4". The low-profile design with slim tapered paddles measuring 1-5/8" x 4-3/4" (pull) and 1-5/8" x 4-1/2" (push) eliminates obstructions while passing through openings, making it ideal for hospital applications where smooth traffic flow is essential.

Professional Features & Benefits

  • Precise Paddle Dimensions: Pull paddle measures 1-5/8" x 4-3/4" with 2-15/16" projection, push paddle measures 1-5/8" x 4-1/2" with 2-1/2" projection for optimal ergonomics.
  • Versatile Door Compatibility: Accommodates door thicknesses from 1-3/4" to 2-1/4" with 5" backset configuration for flexible installation options.
  • Hospital-Specific Design: Low-profile construction with slim tapered paddles eliminates obstructions for smooth passage in healthcare environments.
  • Reliable Bolt Operation: 1/2" bolt throw provides secure latching while maintaining smooth operation for frequent use in high-traffic medical facilities.
  • Professional Strike System: Includes 2-3/4" ANSI curved lip strike for reliable latching performance and proper door alignment.
  • Dual Operation Modes: Available as 114 Push/Pull and 115 Push/Pull configurations to meet specific application requirements.
  • Tasteful Design Elements: Smartly styled escutcheons measuring 2-1/2" x 6-7/8" combine functional performance with aesthetic appeal for professional healthcare settings.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Hospital Patient Rooms and Treatment Areas
  • Healthcare Facility Corridors
  • Medical Office Buildings
  • Nursing Homes and Assisted Living Facilities
  • Rehabilitation Centers
  • Emergency Medical Facilities
  • Clinical Research Facilities

Why Choose Sargent Quality?

Sargent hospital latch products deliver professional-grade reliability with specialized design elements engineered for healthcare environments. The 114/115 Series combines functional performance with tasteful styling, featuring precision-manufactured components that ensure smooth operation in demanding medical facility applications. Engineered for demanding commercial applications where dependable performance and unobstructed passage are essential.

Product Specs

Series:
114/115 Series
Grade:
Grade 1
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Subcategory:
Bored Locksets
Commercial/Residential:
Commercial
Lock Function:
Hospital Latch
Product Type:
Auxiliary Lock
Duty Level:
Heavy Duty
Electronic:
No
Product Function:
Hospital Latch
Product Category:
Mechanical Locks
Backset (Distance):
5"
Department:
Door Hardware

Sargent 114-26D-RH – Frequently Asked Questions

1) What backset does the Sargent 114/115 hospital latch need, and will it drop into a standard lockset prep?
It takes a 5 inch backset, which is not a standard bored lock prep. The two common backsets on a bored lockset are 2-3/8 and 2-3/4 inches, so an existing knob or lever hole will not line up. Plan on a fresh prep from the Sargent template rather than a swap into what is already bored in the door.
2) Which strike do I order with the Sargent 114/115 hospital latch, 2-3/4 inch or 4-7/8 inch?
Both are offered, and the frame decides it. The 2-3/4 inch ANSI curved lip strike is the one for a wood or hollow metal frame prepped for a standard bored lock strike; the 4-7/8 inch is the ANSI 4-7/8 face used in hollow metal frames prepped for a mortise-style strike cutout. Match the strike to the existing frame prep and the 1/2 inch bolt throw lands where it should.
3) Is the Sargent hospital push/pull latch rated Grade 1?
Grade 1, heavy duty, and built for commercial rather than residential service. That is the grade specifications call for on healthcare corridors and patient room doors carrying constant traffic.
4) Can a Sargent 114/115 hospital latch be used to lock a patient room door?
No. It is a hospital latch function, meaning it latches the door closed and releases from either side with the paddle. There is no key, no cylinder, and no locking. If the opening needs to secure, specify a keyed lockset instead and use the hospital latch only where the door just has to stay shut and open hands-free.
5) What is the difference between the down/down and up-push/down-pull paddle options on a Sargent hospital latch?
It is the direction the paddles operate. One version has both the push and the pull paddle operating down; the other has the push paddle operating up while the pull paddle stays down. The up-push arrangement is what facilities pick when a cart or a hip is going to hit the push side and they do not want the door to release, or when they want a consistent motion across a suite of patient room doors. Pick one and stay with it across the building so staff do not have to think about it.
6) How far do the paddles on the Sargent 114/115 stick out into a hospital corridor?
The pull paddle projects 2-15/16 inches and the push paddle 2-1/2 inches, on paddle faces of 1-5/8 x 4-3/4 inches (pull) and 1-5/8 x 4-1/2 inches (push). Those are slim tapered paddles, which is the point of the design: a gurney or a linen cart clears them without catching on the way through the opening.
7) What do I have to specify when ordering a Sargent 114/115 hospital latch?
Four things: hand (left or right), paddle direction (both down, or up on the push and down on the pull), strike face (2-3/4 inch or 4-7/8 inch), and the 26D finish, which is the one finish offered. Get the hand and the strike right against the existing frame prep and the rest is a straight install.
8) How much wall or escutcheon space does the Sargent 114/115 take up on the door face?
The escutcheons measure 2-1/2 x 6-7/8 inches. On a narrow stile door or next to a vision lite frame, check that footprint plus the 5 inch backset before committing, since the latch centerline sits considerably farther from the edge than a bored lockset would.
9) What finish does the Sargent 114/115 hospital latch come in?
26D satin chrome over nickel, on every configuration. It is the standard satin finish on commercial healthcare hardware, so it matches the pulls, closers, and levers already hung on most hospital corridors rather than standing out on one door.
10) Does the Sargent 114/115 hospital latch need power or wiring?
Purely mechanical. No wiring, no power supply, no transfer hinge. That keeps it usable on doors where there is no conduit run and it keeps working through a power outage, which is part of why it shows up on patient room and corridor openings.
