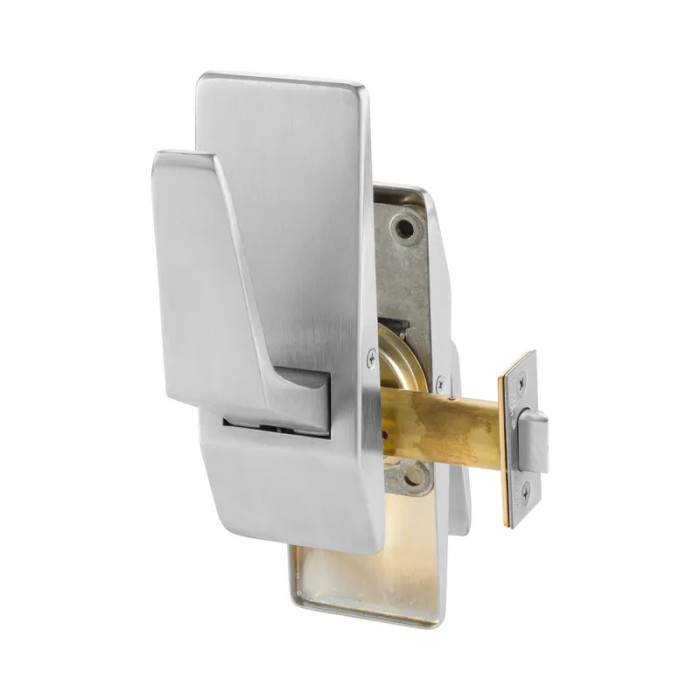

Sargent 115 Series Hospital Latch, 2-3/4" Backset

Sargent 24-115 Hospital Push/Pull Latch with 2-3/4" Backset

(No reviews yet) Write a Review

Model: 24-115-26D-RH
$784.00
$593.89
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$784.00
$593.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 115 Series Hospital Push/Pull Latch with 2-3/4" Backset

Professional Hospital-Grade Door Hardware Solution

The Sargent 115 Series Hospital Push/Pull Latch delivers specialized door hardware designed for healthcare environments with 2-3/4" backset configuration. This push/pull latch features low-profile design to eliminate obstructions while passing through openings, accommodating door thickness from 1-3/4" to 2-1/4". The slim tapered paddles measure 1-5/8" x 4-3/4" (pull) and 1-5/8" x 4-1/2" (push) with smartly styled escutcheons sized at 2-1/2" x 6-7/8" for tasteful yet functional design.

Professional Features & Benefits

  • Door Thickness Compatibility: Accommodates door thickness from 1-3/4" to 2-1/4" with 2-3/4" backset for standard commercial door applications.
  • Ergonomic Paddle Dimensions: Slim tapered paddles sized 1-5/8" x 4-3/4" (pull) and 1-5/8" x 4-1/2" (push) for comfortable operation and accessibility compliance.
  • Professional Escutcheon Design: Smartly styled escutcheons measuring 2-1/2" x 6-7/8" combine tasteful aesthetics with functional performance for healthcare environments.
  • Hospital-Specific Construction: Low-profile design eliminates obstructions during passage through openings, ideal for healthcare facility traffic flow and equipment movement.
  • Reliable Latching Mechanism: 1/2 inch bolt throw with ANSI curved lip strike provides secure door engagement and smooth operation throughout service life.
  • Compact Projection Profile: Product projection of 2-15/16" (pull) and 2-1/2" (push) minimizes interference in high-traffic healthcare corridors.
  • Dual Operation Capability: Push/pull paddle configuration provides versatile operation for different user needs and accessibility requirements in medical facilities.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Hospital Patient Rooms and Treatment Areas
  • Healthcare Facility Corridors and Access Points
  • Medical Office Buildings
  • Assisted Living and Long-Term Care Facilities
  • Rehabilitation Centers
  • Emergency Medical Facilities
  • Clinical Research Facilities

Why Choose Sargent Quality?

Sargent hospital latch products deliver professional-grade reliability with specialized design elements engineered for demanding healthcare applications. The 115 Series combines functional performance with tasteful aesthetics, featuring low-profile construction and ergonomic paddle design rated for commercial door thickness from 1-3/4" to 2-1/4". Engineered for demanding commercial applications where dependable performance and user accessibility are essential.

Product Specs

Series:
115 Series
Grade:
Grade 1
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Subcategory:
Bored Locksets
Commercial/Residential:
Commercial
Lock Function:
Hospital Latch
Product Type:
Auxiliary Lock
Duty Level:
Heavy Duty
Electronic:
No
Product Function:
Hospital Latch
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Sargent 24-115-26D-RH – Frequently Asked Questions

1) Will a hospital push/pull latch work in my existing strike, or do I need to change the frame prep?
The latch throws 1/2 inch and ships with an ANSI curved lip strike. A 1/2 inch throw is short, so an existing strike with a deep or offset lip will not reliably catch it. If the frame already carries an ANSI strike prep, the supplied curved lip strike drops in; if the door currently has a small non-ANSI strike, plan on cutting the frame to the ANSI opening.
2) Does a Sargent hospital latch need to be ordered handed?
Yes, handing matters. The 115 Series is built as a handed device, and the configuration offered is right hand with the paddles set up (push) and down (pull). Stand outside the door: if the hinges are on your right and the door swings away from you, that is right hand. Get the hand wrong and the paddles operate the wrong direction for the swing.
3) How much does a hospital latch stick out into a corridor?
Projection is 2-15/16 inches on the pull side and 2-1/2 inches on the push side. That is the number to check against a corridor with gurney or cart traffic, and against any wall or adjacent door leaf the paddle would swing toward when the door stands open. The paddles themselves are slim tapered, 1-5/8 x 4-3/4 inches on the pull and 1-5/8 x 4-1/2 inches on the push.
4) Why use a push/pull hospital latch instead of a lever handle on a patient room door?
A push/pull paddle opens with a forearm, a hip, or the edge of a cart, so staff carrying trays, charts, or pushing equipment get through without a free hand. A lever still needs a grip and a twist. The trade-off: this is a latch only, with no locking function, so any opening that has to secure needs a keyed lockset instead. Use the paddle set on patient rooms, treatment areas, and corridor doors where traffic flow matters more than security.
5) Is the Sargent 115 hospital latch heavy duty enough for a busy healthcare corridor?
It is a Grade 1, heavy duty commercial device. Grade 1 is the top ANSI/BHMA duty tier and the one normally specified for institutional openings, which is what you want on a corridor or patient room door taking constant cart and staff traffic rather than a light commercial or residential grade paddle.
6) How much of the door face will the escutcheon plates cover?
Each escutcheon measures 2-1/2 x 6-7/8 inches. That matters on a narrow stile or a door with a vision lite close to the lock edge, since the plate has to land flat with the 2-3/4 inch backset bore centered in it. Measure the flat area between the door edge and the glass stop before ordering.
7) What finish does the Sargent 115 hospital push/pull latch come in?
26D, satin chromium plated over nickel. That is the standard satin chrome you will see on most healthcare and institutional hardware, so it lines up with existing 26D closers, hinges, and levers when you are matching a floor of doors rather than replacing one.
8) Can I add an electric strike or card reader to the Sargent 115 hospital latch?
The 115 Series latch itself is mechanical, with no electrified option in the device. Access control on a hospital latch opening is done at the frame, with an electric strike prepped to the ANSI curved lip strike cutout the latch uses, not through the paddle set. The 1/2 inch bolt throw is what the strike keeper has to capture.
