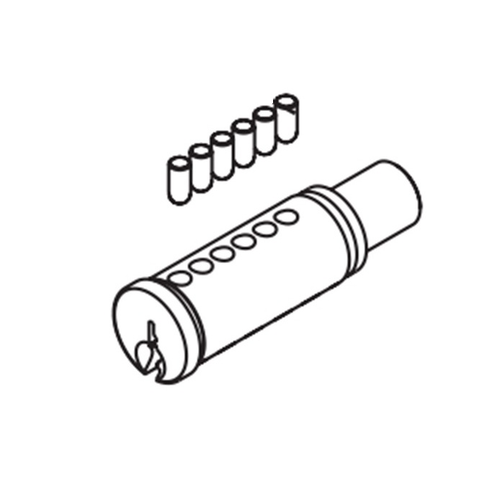

Sargent 13-3425 8 Line Cylinder Plug and Pin Assembly
Model: SGT-13-3425
Sargent 8 Line Cylinder Plug and Pin Assembly for Professional Lock Maintenance
Professional Lock Cylinder Component
The Sargent 8 Line Cylinder Plug and Pin Assembly is a precision-engineered...
Sargent
Starting at
$45.83
$20.52

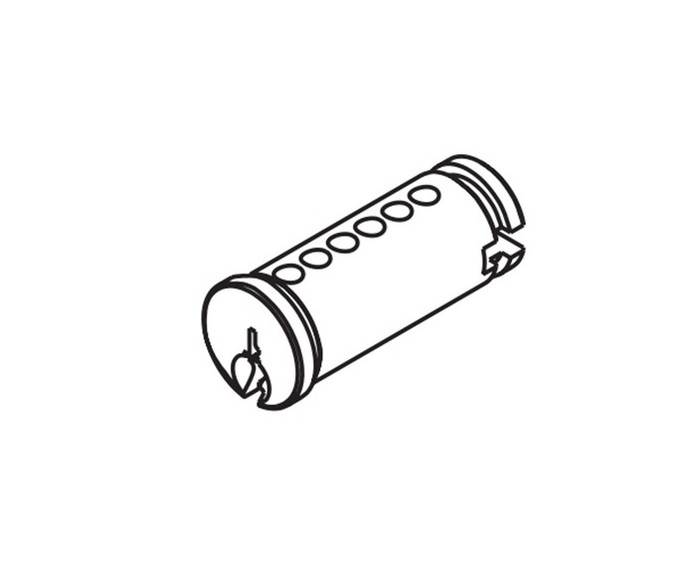

Sargent Professional Rim Cylinder Plug Assembly Replacement Component
Professional Lock Cylinder Component
The Sargent Professional Rim Cylinder Plug Assembly is a precision-engineered replacement component designed for professional lock cylinder applications. This plug assembly provides reliable operation for rim cylinder installations in commercial and institutional settings with quality materials that meet commercial lock cylinder performance standards.
Professional Features & Benefits
- Precision Manufacturing: Engineered to exact specifications for reliable fit and smooth operation in rim cylinder applications.
- Professional-Grade Construction: Built with quality materials to meet commercial lock cylinder performance standards for demanding applications.
- Replacement Component Design: Specifically designed as a service part for maintaining existing rim cylinder installations and extending system life.
- Universal Compatibility: Compatible with standard rim cylinder configurations for versatile application across multiple installation types.
- Quality Assurance: Manufactured to Sargent’s professional standards for consistent performance and reliable operation.
- Commercial-Grade Reliability: Engineered for demanding commercial applications where dependable lock cylinder operation is essential.
Technical Specifications
- Refer to manufacturer documentation for complete technical specifications.
Installation & Operation
This replacement component is designed for use with compatible rim cylinder assemblies. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.
Professional Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Retail Establishments
- Industrial and Warehouse Facilities
- Multi-Tenant Residential Properties
- Government and Municipal Buildings
Why Choose Sargent Quality?
Sargent lock cylinder components deliver professional-grade reliability with precision manufacturing designed for demanding commercial applications. Engineered for consistent performance where dependable lock cylinder operation is essential for security and access control requirements.
Manufacturer Resources
[Catalog] SARGENT Full Line Catalog
Product Specs
- Product Type:
- Cylinders
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Parts and Accessories
- Subcategory:
- Parts and Accessories
- Commercial/Residential:
- Commercial
- Collection:
- Conventional Key System
- Parts and Accessories Type:
- Replacement Parts
- Product Attribute:
- Parts and Accessories
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Sargent 13-0090-HB-15 – Frequently Asked Questions
1) What exactly is the Sargent 13-0090 rim cylinder plug assembly, and is it a complete cylinder?
It is the plug assembly only, a service part for rebuilding or re-pinning an existing Sargent rim cylinder. It is not a complete rim cylinder, so it does not include the shell, cam, tailpiece, or mounting screws. Order it when the cylinder body is fine and you need to change keying or replace a worn or damaged plug.
2) Which Sargent keyways does the 13-0090 plug come in?
Two keyways are offered: HB and LC. Both are Sargent conventional key system keyways, so the plug has to match the keyway already in use on the building's key system or the existing keys will not enter. Pull one of your current keys and confirm the keyway stamp before you pick.
3) Will this plug work in a Sargent Signature or Degree high security cylinder?
No. The 13-0090 plug is built for Sargent's conventional key system, which uses standard pin tumbler plugs. A patented or high security cylinder platform uses its own plug and key control program, and a conventional plug will not accept those keys or fit that housing. Keep the plug on the same key system family as the rest of the cylinder.
4) I need to rekey rim cylinders on exit devices across a building. Is buying plugs cheaper than whole cylinders?
Swapping plugs is the normal approach for a locksmith who already has the cylinder shells in good condition on the doors. The 13-0090 is sold as a replacement part for maintaining existing rim cylinder installations, so you keep the shell, cam, and tailpiece in the door and change only the plug and its pinning. Just make sure every opening you are standardizing uses the same keyway, HB or LC, since the plugs are keyway specific.
5) Do I need pins and springs to install the Sargent 13-0090 plug?
Plan on supplying your own pinning stock. The 13-0090 is a plug assembly sold as a service component, so the bottom pins, top pins, and springs you need to key it to your system come from your kit. You will also need the original cylinder shell, cam, and retaining hardware, which stay with the cylinder already on the door.
6) Is this a commercial-duty part or a residential one?
Commercial. The 13-0090 plug is a commercial rim cylinder component and it is the kind of part used in office buildings, schools, healthcare, retail, and multi-tenant residential buildings where the rim cylinders sit in exit devices and entry doors.
